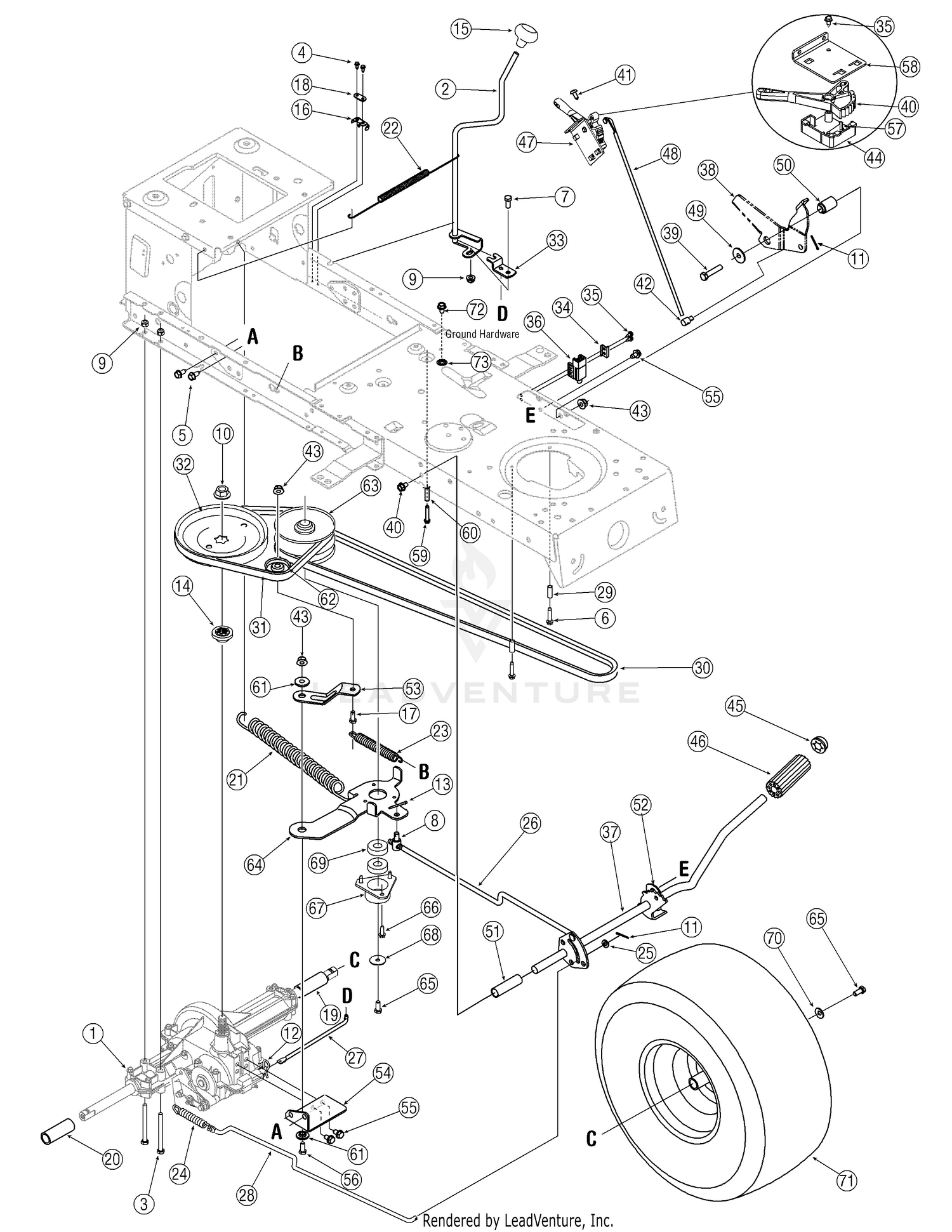

| Ref | Part Number | Description |
|---|
| 1 |
753-05851 |
Drive Assembly This part replaces 618-04034. Price: $590.05 |
| 2 |
647-04035 |
Lever Assembly, Shift Price: $33.15 |
| 3 |
710-0176 |
Screw, 5/16-18, 2.75, Gr5 Price: $3.89 |
| 4 |
710-0227 |
Screw, #8-18, 0.500 Price: $3.90 |
| 5 |
710-0726 |
Screw, 5/16-12, 0.750 Price: $3.82 |
| 6 |
710-0809 |
Screw, 1/4-20, 1.250 Price: $6.37 |
| 7 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 8 |
911-04075A |
Ferrule, 3/8-24 X .375 DIA. This part replaces 711-04075A. Price: $9.87 |
| 9 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF Price: $3.56 |
| 10 |
712-0700 |
Nut, Flange, 9/16-18, Gr2 Price: $10.12 |
| 11 |
714-0111 |
Pin, Cotter, 3/32, 1.0 Price: $4.20 |
| 12 |
914-0209 |
Cotter .Pin, Internal,.125 Dia. This part replaces 714-0209. Price: $3.22 |
| 13 |
714-0470 |
Pin, Cotter, 1/8 x 1.25 Price: $3.90 |
| 14 |
718-04407 |
Pulley Hub, 5/8 SPLINE This part replaces 718-0758A. Price: $11.11 |
| 15 |
720-04028 |
Knob, Shift Price: $9.44 |
| 16 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 17 |
710-0520 |
Screw, 3/8-16 x 1.50 Price: $3.93 |
| 18 |
926-0320 |
Insulator Nut Plate This part replaces 726-0320. Price: $6.01 |
| 19 |
731-04602 |
Sleeve, .758 x .821 x 3.3125 Price: $5.62 |
| 20 |
731-04604 |
Sleeve, .758 x .821 x 2.4375 Price: $5.78 |
| 21 |
732-04076A |
Spring, Extension, 1.15 OD x 7.90 Price: $12.80 |
| 22 |
732-04237 |
Spring, Extension, .50 OD x 12.0 Price: $21.55 |
| 23 |
732-04306 |
Spring, Extension, .80 OD x 3.28 Price: $9.32 |
| 24 |
732-0716D |
Extension Spring, .59 OD x 4.00 LG This part replaces 732-0716C. Price: $11.49 |
| 25 |
736-0264 |
Washer, Flat, .330 x .630 x .0635 Price: $5.99 |
| 26 |
747-04265 |
VARIABLE SPEED CONTROL ROD Not Available Price: |
| 27 |
747-04277 |
SHIFT ROD Not Available Price: |
| 28 |
747-04287 |
Rod, Brake Price: $28.77 |
| 29 |
750-0566A |
Spacer, .260 x .372 x 1.030 Price: $9.17 |
| 30 |
954-04001A |
LOWER DRIVE BELT This part replaces 754-04001A. Price: $26.27 |
| 31 |
954-05040 |
Upper Drive Belt This part replaces 754-0241A. Price: $42.39 |
| 32 |
956-04002 |
Pulley, V-Type, 7.25 Dia. This part replaces 756-04002. Price: $24.33 |
| 33 |
783-04595A |
Shaft Adjust Bracket This part replaces 783-04595. Price: $9.09 |
| 34 |
17962 |
Plate, Switch Price: $4.36 |
| 35 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 36 |
925-04039 |
SAFETY SWITCH-DECK This part replaces 725-04039. Price: $22.73 |
| 37 |
647-04034C |
Pedal Assembly, Drive Price: $61.32 |
| 38 |
783-04903 |
SPEED LATCH BRACKET Not Available Price: |
| 39 |
710-1008 |
Screw, 3/8-16, 1.875, Gr5 Price: $4.75 |
| 41 |
710-04483 |
SCREW 1/4-20 x .500 Price: $5.97 |
| 42 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 43 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 44 |
731-05361 |
CONTROL COVER Not Available Price: |
| 45 |
726-0214 |
Push Cap, 5/8 Price: $9.11 |
| 46 |
735-0239A |
FOOT PAD This part replaces 735-0239. Price: $10.76 |
| 48 |
747-04430 |
Control Rod, Speed Selector Price: $19.25 |
| 49 |
736-0247 |
Washer, Flat, .406 x 1.25 x .157 Price: $8.82 |
| 50 |
750-04465B |
Flange Spacer, .390 x .671 x 1.095 This part replaces 750-04465. Price: $3.64 |
| 51 |
750-0802 |
Spacer, .640 ID x .76 OD x 2.63 Price: $6.07 |
| 52 |
783-04536B |
PEDAL SUPPORT BRACKET This part replaces 783-04536. Price: $5.28 |
| 53 |
753-05147 |
Idler Bracket Assembly This part replaces 683-04207. Price: $28.74 |
| 54 |
783-04567B |
VARIABLE SPEED BRACKET This part replaces 683-04176A. Price: $7.61 |
| 55 |
710-0604A |
Screw, 5/16-18, 0.625 Price: $3.96 |
| 56 |
710-0520 |
Screw, 3/8-16, 1.50, Gr5 Price: $3.93 |
| 57 |
732-0627A |
Spring This part replaces 732-0627. Price: $8.50 |
| 58 |
783-04830 |
Control Bracket Price: Call Us |
| 59 |
710-1325 |
Screw, 1/4-20 x 1.625 Price: $4.11 |
| 60 |
750-04456 |
Spacer, .260 x .372 x 1.420 Price: $6.20 |
| 61 |
938-0347 |
Spacer-Shld This part replaces 738-0347. Price: $8.93 |
| 62 |
756-04213 |
Pulley, Flat Idler Price: $30.18 |
| 63 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 656-04015. Price: $90.80 |
| 64 |
753-05147 |
Idler Bracket Assembly This part replaces 683-04206. Price: $28.74 |
| 65 |
710-0627 |
Screw, 5/16-24, .750, Gr5 Price: $3.68 |
| 66 |
710-1652 |
Screw, 1/4-20, 0.625 Price: $3.86 |
| 67 |
718-04012 |
Cup, Bearing Price: $19.55 |
| 68 |
736-0362 |
Washer, Flat, .330 x 1.25 x .06 Price: $3.93 |
| 69 |
941-0600 |
BALL BEARING This part replaces 741-0600. Price: $23.34 |
| 70 |
736-0242 |
Bell Washer, .34 x .872 Price: $3.75 |
| 71 |
634-0104 |
Wheel Ass’y, Square Shoulder Price: $391.14 |
| 72 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
