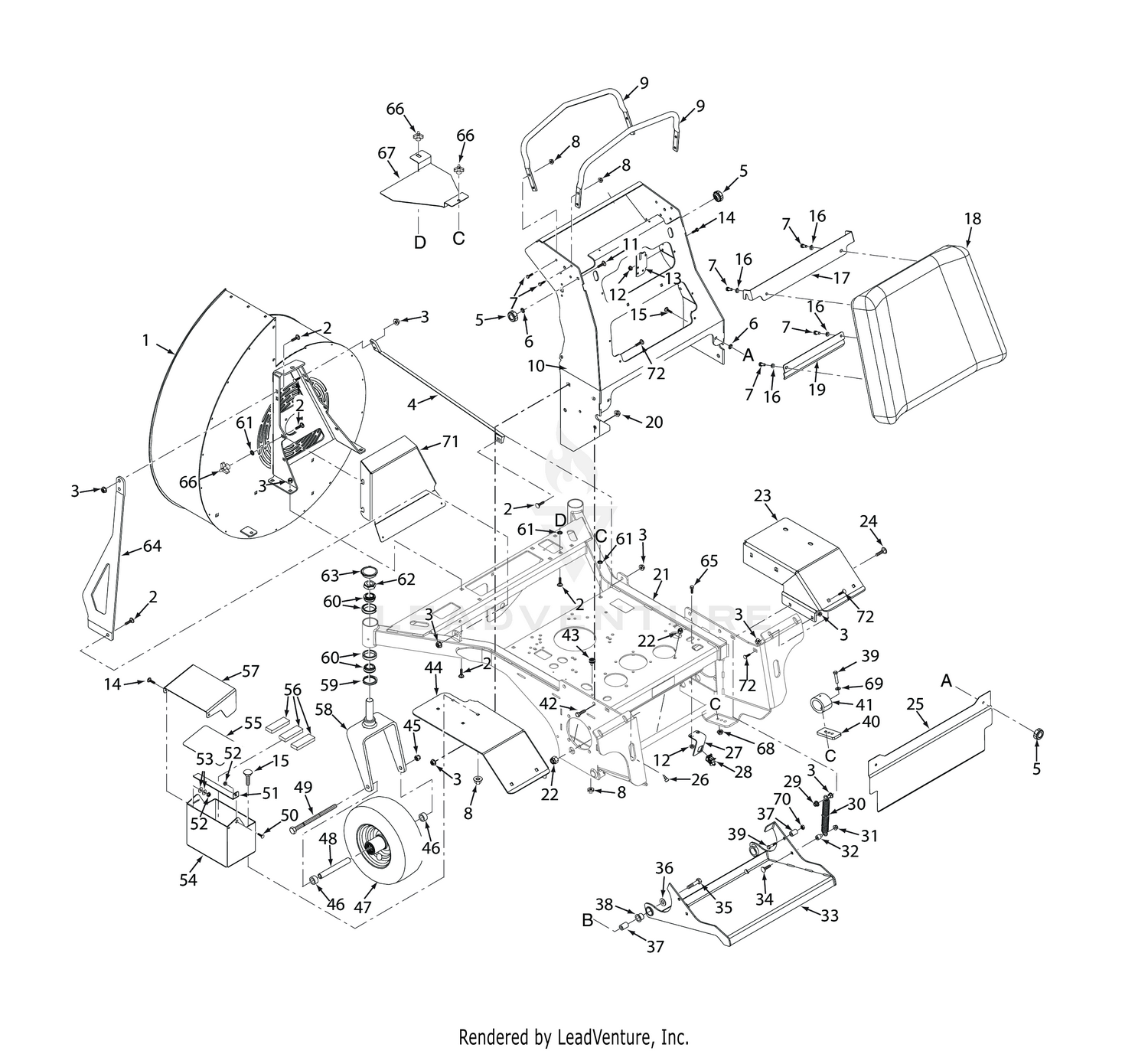

| Ref | Part Number | Description |
|---|
| 1 |
463312 |
Blower Housing, With Decal Price: Call Us |
| 2 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 3 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 4 |
427830 |
RH Support Bar, Blower Price: Call Us |
| 5 |
481885-06 |
Knob, 5/16-18 Price: Call Us |
| 6 |
04024-03 |
Nut, Push-On 5/16-18 Price: Call Us |
| 7 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 8 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 9 |
427189 |
Reference Bar Price: Call Us |
| 10 |
452832 |
Handlebar Weldment, SVRII Price: Call Us |
| 11 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 12 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 13 |
427269 |
Bracket, Neutral Switch Price: Call Us |
| 14 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 15 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 16 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 17 |
427289 |
Bracket, Knee Pad - Upper Price: Call Us |
| 18 |
463291 |
Operator Pad Assy, SVRII (INCL. 10,11,12,13) Price: Call Us |
| 19 |
427292 |
Bracket, Knee Pad - Lower Price: Call Us |
| 20 |
04112-05 |
Locknut, 1/2-13 Spiral Lock Price: Call Us |
| 21 |
463311 |
Mainframe Assembly, With Decals Price: Call Us |
| 22 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 23 |
427253 |
Fender, RH Price: Call Us |
| 24 |
04003-05 |
Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61") Price: Call Us |
| 25 |
428479 |
Guard, Foot -SVRII Price: Call Us |
| 26 |
485846 |
BUMPER, PLUG Price: Call Us |
| 27 |
428491 |
Mounting Bracket, Footplate Switch Price: Call Us |
| 28 |
48717 |
SWITCH, NEUTRAL INTERLOCK Price: Call Us |
| 29 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 30 |
48755 |
Spring,Counter Balance Price: Call Us |
| 31 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 32 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 33 |
463264 |
Footplate Assy, SVRII (Incl. #35) Price: Call Us |
| 34 |
04003-38 |
Bolt, Carriage 5/16-18 x 1-1/2" Price: Call Us |
| 35 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 36 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 37 |
43572 |
Yoke, Front Caster Wheel Price: Call Us |
| 38 |
486834 |
Bearing, Pivot Price: Call Us |
| 39 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 40 |
428526 |
Riser Price: Call Us |
| 41 |
486758 |
Isolator, Footplate Price: Call Us |
| 42 |
04017-36 |
Capscrew, 1/2-13 x 1" Serrated Flange Hex Head Price: Call Us |
| 43 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 44 |
427252 |
Fender, LH Price: Call Us |
| 45 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 46 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 47 |
9278 |
Wheel Assy, 61V, 72V (Incl. 20, 54, 55) Price: Call Us |
| 48 |
43581 |
Sleeve, Caster Wheel (48 / 52) Price: Call Us |
| 49 |
04001-134 |
Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52") Price: Call Us |
| 50 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 51 |
427318 |
Battery Box Latch Price: Call Us |
| 52 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 53 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 54 |
427316 |
Battery Box, Lower Price: Call Us |
| 55 |
485692 |
Insulation, Battery Cover (Gas Only) Price: Call Us |
| 56 |
48661 |
PAD, BATTERY SUPPORT Price: Call Us |
| 57 |
428066 |
Battery Box, Upper Price: Call Us |
| 58 |
453007 |
Yoke Weldment, (Black)) Price: Call Us |
| 59 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 60 |
48668 |
Bearing Set Price: Call Us |
| 61 |
04024-02 |
Nut, Push-On - 3/8" Dia. Price: Call Us |
| 62 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 63 |
484195 |
Cap, Grease Price: Call Us |
| 64 |
428047 |
LH Support Bar, Blower Price: Call Us |
| 65 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 66 |
04029-04 |
Wing Nut, 3/8-16 (Small) Top side Price: Call Us |
| 67 |
428046 |
Belt Cover, Gearbox Price: Call Us |
| 68 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 69 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 70 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 71 |
427982 |
Belt Cover, Blower Price: Call Us |
