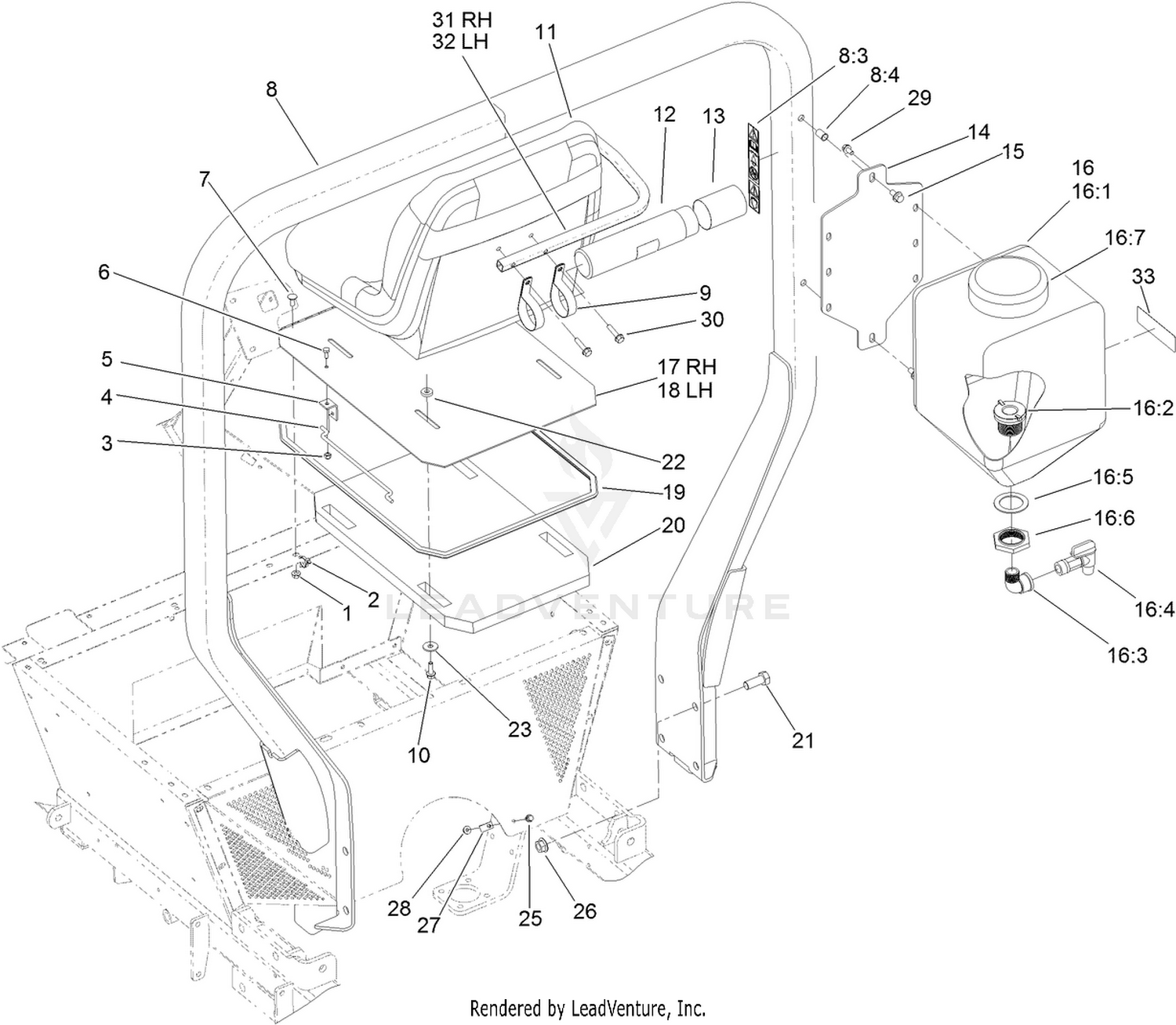

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 2 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
94-7204 |
ROD-PROP, SEAT Price: $37.74 |
| 5 |
94-7203 |
BRACKET Price: $30.73 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 7 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 8 |
119-0589 |
ROPS ASM Price: $1,160.80 |
| 9 |
2412-133 |
CLAMP-R Price: $3.19 |
| 10 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 11 |
112-2923 |
SEAT ASM Price: $290.09 |
| 12 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 13 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 14 |
120-0763-03 |
PLATE-FRESH WATER Price: $57.28 |
| 15 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 16 |
117-7901 |
FRESH WATER TANK ASM Price: $261.29 |
| 17 |
108-3289-03 |
PANEL-SEAT, RH Price: $146.39 |
| 18 |
108-3288-03 |
PANEL-SEAT, LH Price: $146.39 |
| 19 |
94-7085 |
TRIM Price: $54.26 |
| 20 |
108-3290 |
BARRIER-NOISE, SEAT Price: $30.83 |
| 21 |
327-4 |
SCREW-HH Price: $2.20 |
| 22 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 23 |
52-2861 |
WASHER Price: $1.29 |
| 25 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 26 |
32128-50 |
NUT-FLANGE Price: $1.78 |
| 27 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 28 |
104-7201 |
NUT-HF Price: $0.69 |
| 29 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 30 |
33104-035 |
SCREW-HHF Price: $0.88 |
| 31 |
140-6360 |
ARMREST-RH This part replaces 119-0732-03. Price: $54.73 |
| 32 |
140-6359 |
ARMREST LH This part replaces 119-0731-03. Price: $54.73 |
