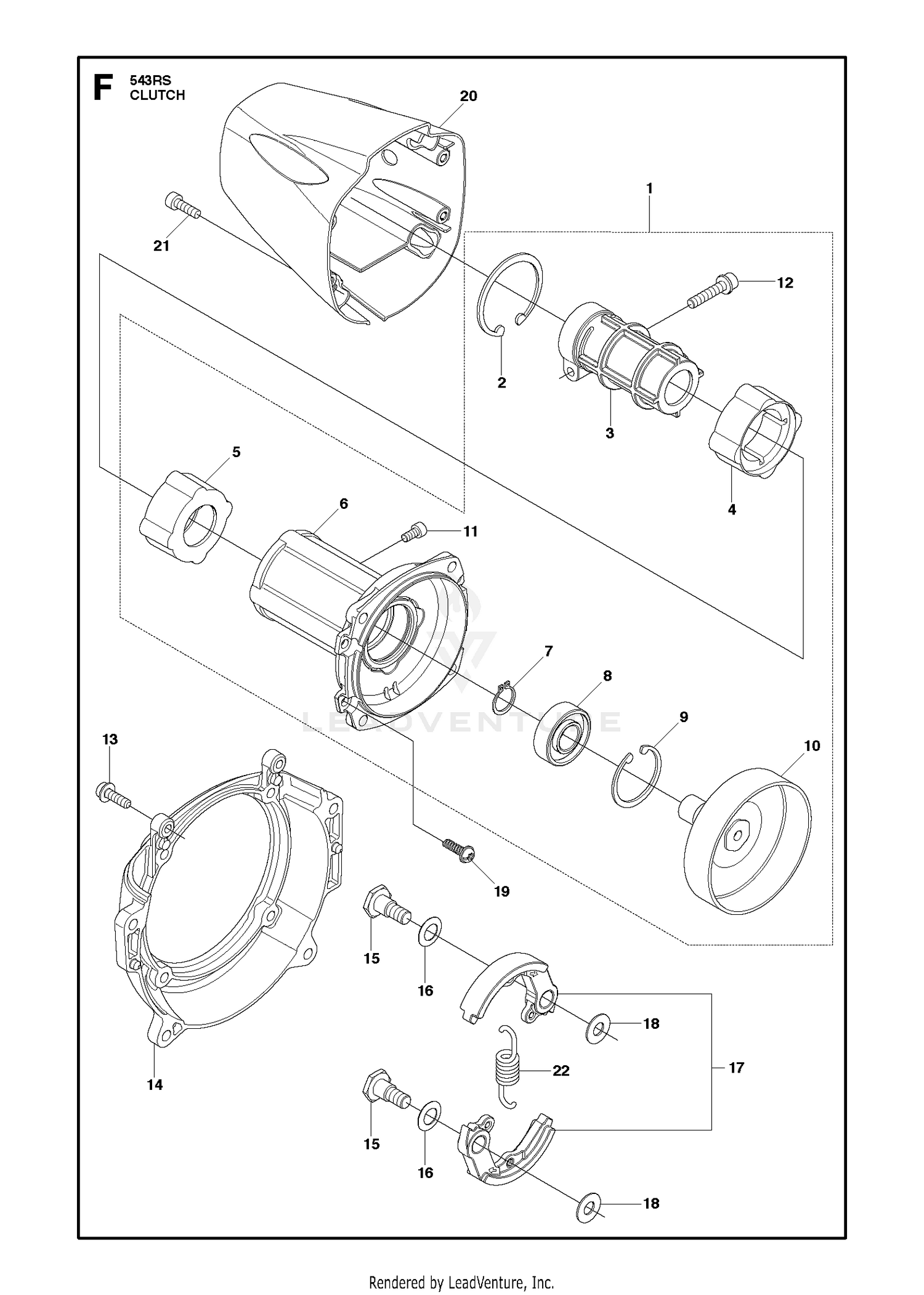

| Ref | Part Number | Description |
|---|
| 1 |
110-4614 |
SCREW-HH Price: $3.44 |
| 1 |
525418401 |
HOUSING ASSY This part replaces 528815701. Price: $99.99 |
| 2 |
105-1016 |
WASHER-FLAT Price: $17.48 |
| 3 |
110-4556 |
BEARING-BALL Price: $17.55 |
| 3 |
521665001 |
CLAMP Price: $17.26 |
| 4 |
32151-76 |
RING-RETAINING, INTERNAL Price: $4.66 |
| 4 |
521665201 |
ABSORBER Price: $2.60 |
| 5 |
110-4557 |
SPACER-BEARING Price: $2.04 |
| 5 |
521665101 |
ABSORBER Price: $2.60 |
| 6 |
110-4573 |
ARM-STOMPER Price: $183.81 |
| 6 |
521664901 |
HOUSING Price: $22.22 |
| 7 |
110-4555 |
BEARING-BALL, 2 ROW Price: $122.99 |
| 7 |
516124201 |
RING, SNAP, M15 x 1.0 Price: $2.99 |
| 8 |
110-4566 |
HOUSING-BEARING Price: $271.04 |
| 8 |
516131701 |
BEARING 0600406202 Price: $7.99 |
| 9 |
110-4584 |
SPACER-BEARING Price: $14.45 |
| 9 |
502849301 |
SNAP RING Price: $2.99 |
| 10 |
110-4546 |
KEY-SQUARE Price: $6.70 |
| 10 |
591425801 |
DRUM This part replaces 505293801. Price: $27.99 |
| 11 |
105-1041 |
PIN-SPRING Price: $1.88 |
| 11 |
504119601 |
BOLT 08 Price: $2.99 |
| 12 |
325-9 |
SCREW-HH Price: $1.87 |
| 12 |
521862301 |
BOLT,TORX M6X30 Price: $2.99 |
| 13 |
107-3395 |
WASHER-HARDENED Price: $1.49 |
| 13 |
515391301 |
BOLT Price: $2.99 |
| 14 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 14 |
578854203 |
FAN COVER Price: $27.99 |
| 15 |
110-4571 |
CRANKARM-NO. 2, 4, 6 Price: $512.42 |
| 15 |
505297801 |
SCREW Price: $4.99 |
| 16 |
110-4567 |
COUPLING-NO. 2 Price: $161.76 |
| 16 |
505298101 |
WASHER Price: $2.99 |
| 17 |
110-4572 |
CRANKARM-NO. 3, 5, 7 Price: $248.95 |
| 17 |
521636401 |
SHOE COMP Price: $49.99 |
| 18 |
505298001 |
WASHER Price: $2.99 |
| 19 |
110-4568 |
COUPLING-NO. 3 Price: $148.28 |
| 19 |
521517901 |
SCREW Price: $2.99 |
| 20 |
510173101 |
CLUTCH COVER This part replaces 528815601. Price: $37.99 |
| 21 |
327-29 |
SCREW-HH Price: $5.77 |
| 21 |
523019001 |
BOLT Price: $3.99 |
| 22 |
105-0974-03 |
PLATE-COUPLING Price: $105.87 |
| 22 |
521523401 |
SPRING Price: $4.99 |
| 23 |
105-0963 |
MOUNT-ISO, CRANK Price: $157.45 |
| 24 |
110-4549 |
WASHER-SNUBBING Price: $7.53 |
| 25 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
