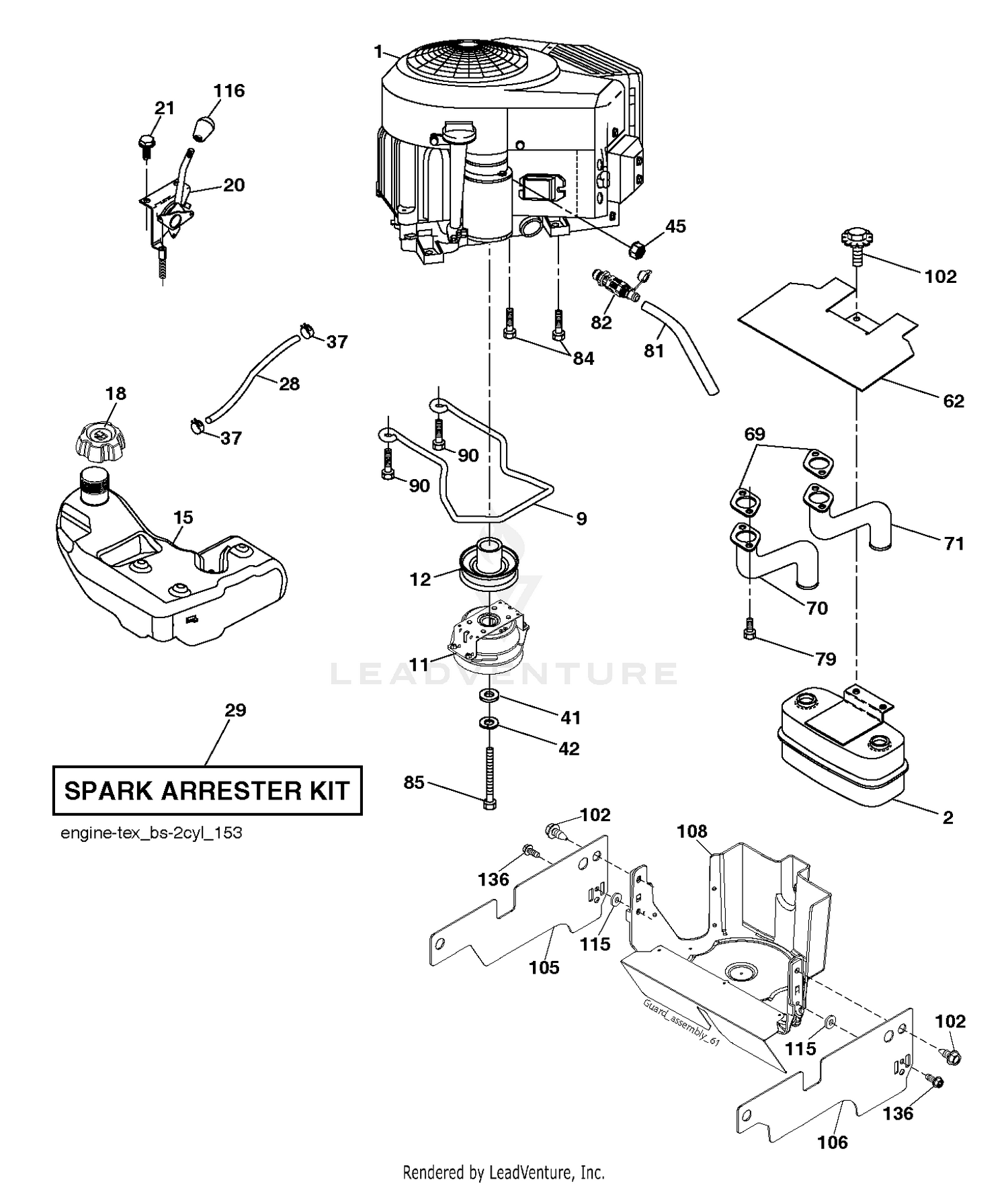

| Ref | Part Number | Description |
|---|
| 1 |
60-6230 |
SCREW-HH Price: $4.80 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 2 |
60-6200 |
ADAPTER Price: $537.89 |
| 3 |
70-1240 |
PLUG ASM Price: $51.46 |
| 5 |
99-8708 |
O-RING This part replaces 60-6180. Price: $21.71 |
| 6 |
63-4390 |
BEARING-NEEDLE Price: $51.67 |
| 7 |
60-6350 |
DISCONTINUED Price: Call Us |
| 8 |
33-4970 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 9 |
60-6040 |
DISCONTINUED Price: Call Us |
| 10 |
60-6130 |
GASKET Price: $19.03 |
| 11 |
587241501 |
CLUTCH.OGURA.4.4PD.GT1.5-EH13V Price: $199.99 |
| 11 |
95-6050 |
PIN-DOWEL This part replaces 60-6370. Price: $2.59 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
60-6030 |
KIT Price: $1,481.34 |
| 13 |
60-6310 |
KEY Price: $8.97 |
| 14 |
60-6020 |
CAMPLATE Price: $784.96 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 15 |
60-6120 |
COVER-SEAL Price: $17.87 |
| 16 |
104-4861 |
SEAL-SHAFT This part replaces 42-2720. Price: $28.44 |
| 17 |
60-6250 |
WASHER Price: $9.70 |
| 18 |
584248701 |
CAP.ASSY.FUEL.3".N-EPA.BLK.428 Price: $14.99 |
| 18 |
60-6110 |
BEARING Price: $47.19 |
| 19 |
60-6000 |
HOUSING Price: $924.77 |
| 20 |
587242701 |
THROTTLE.PRO.RSTART. 38 Price: $27.99 |
| 20 |
60-5990 |
RACE Price: $51.48 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
60-6190 |
O-RING Price: $3.76 |
| 22 |
60-6210 |
COVER Price: $12.31 |
| 23 |
60-6010 |
COVER-TRUNNION Price: $11.26 |
| 24 |
60-6330 |
SCREW Price: $6.91 |
| 25 |
76-7010 |
RING-RETAINING This part replaces 60-6260. Price: $3.66 |
| 26 |
105-3331 |
SEAL-SHAFT This part replaces 60-6300. Price: $35.63 |
| 27 |
60-6240 |
WASHER Price: $15.20 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 28 |
60-6270 |
RING Price: $2.40 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
76-6950 |
RACE-THRUST This part replaces 60-6160. Price: $25.65 |
| 30 |
76-6960 |
BEARING-THRUST This part replaces 60-6170. Price: $23.23 |
| 31 |
60-6140 |
SHAFT Price: $420.62 |
| 32 |
68-6460 |
RELIEF VALVE KIT Price: $545.19 |
| 33 |
60-5980 |
O-RING Price: $1.95 |
| 35 |
60-6320 |
KEY Price: $5.45 |
| 36 |
60-6220 |
SCREW-HH Price: $5.33 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
60-6060 |
CARTRIDGE Price: $31.94 |
| 38 |
60-6080 |
RING Price: $1.46 |
| 39 |
60-6090 |
SPRING Price: $8.73 |
| 40 |
60-6070 |
POPPET Price: $15.52 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
33-4990 |
POPPET Price: $11.08 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
39-2140 |
SPRING Price: $24.34 |
| 44 |
39-2130 |
RETAINER-SPRING Price: $23.51 |
| 45 |
237-114 |
DISCONTINUED Price: Call Us |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 46 |
60-5950 |
WASHER Price: $11.55 |
| 47 |
60-6150 |
BEARING Price: $37.91 |
| 48 |
60-6050 |
BEARING Price: $50.76 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR Price: $6.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 105 |
501267202 |
SHIELD.SIDE.LH.3842"TEX FRN.BK Price: $12.99 |
| 106 |
501268202 |
SHIELD.SIDE.LH.3842"TEX FRN.BK Price: $11.99 |
| 108 |
587179509 |
COVER ENGINE PULLEY COVER WITH This part replaces 587179501. Price: $69.99 |
| 115 |
532431761 |
RETAINER Price: $3.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 136 |
596434001 |
Screws This part replaces 532421756. Price: $2.99 |
