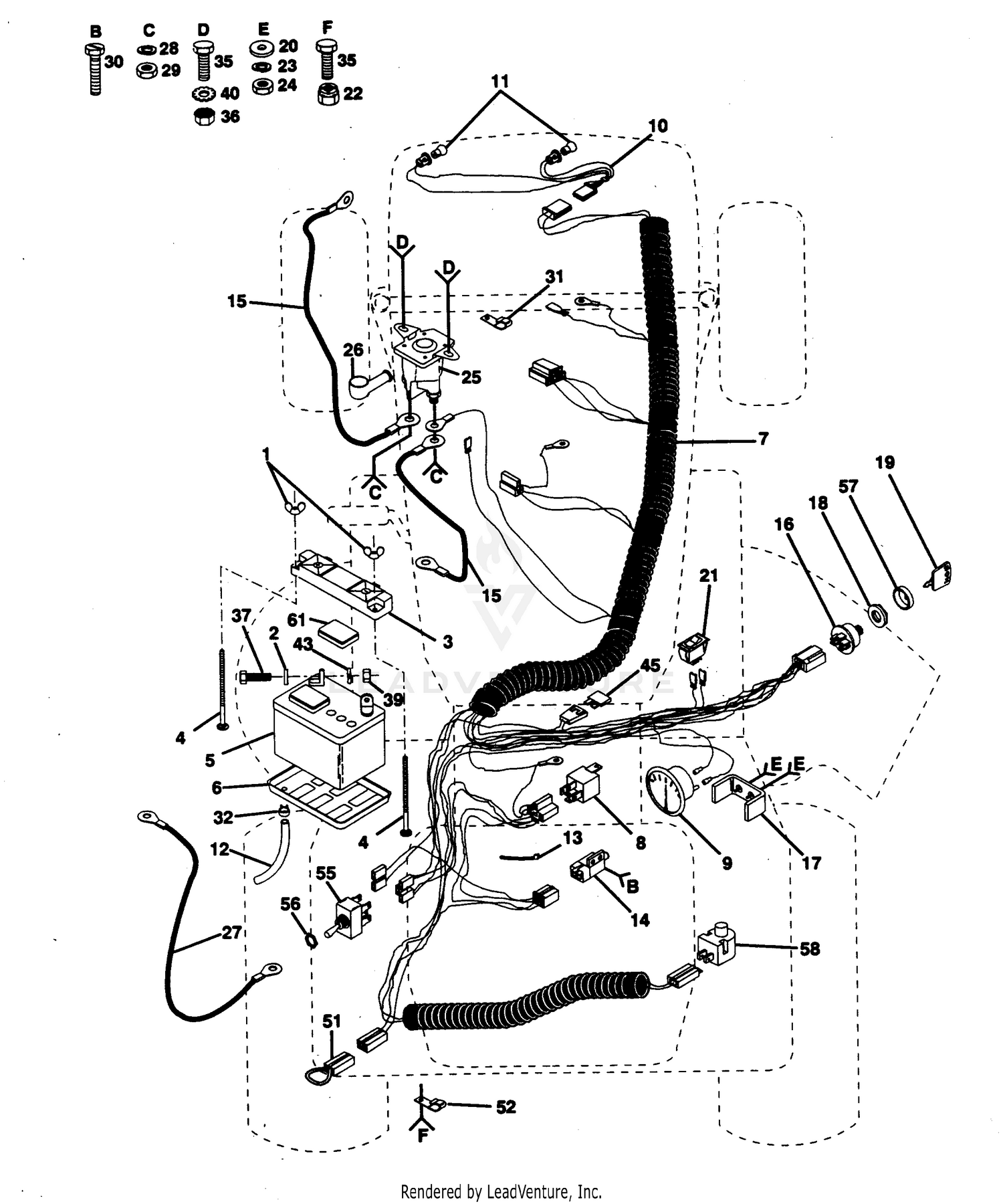

| Ref | Part Number | Description |
|---|
| 1 |
3296-5 |
NUT-HEX Price: $3.09 |
| 1 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 2 |
18-7260 |
DISCONTINUED Price: Call Us |
| 2 |
819091016 |
Washer 9/32 x 5/8 x 16 Ga (AYP part number) Price: $2.99 |
| 3 |
18-7530 |
BALL JOINT ASSY CENTE This part replaces 18-7550. Price: $41.95 |
| 3 |
532150109 |
BATTERY HOLDDOWN This part replaces 532102476. Price: $4.99 |
| 4 |
18-7450 |
UPPER RAKE WA RH *R Price: $333.54 |
| 4 |
872240460 |
Battery Bolt (Bolt, Carriage, Rd. Hd. Sq. Neck) 1/4-20 x 7-1/21 (AYP part number) Price: $3.99 |
| 5 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121537. Price: $139.99 |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 6 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
18-7560 |
DISCONTINUED Price: Call Us |
| 8 |
532109748 |
Relay (AYP part number) Price: $19.99 |
| 9 |
20-4670 |
DRAG LINK Price: $15.18 |
| 9 |
532124900 |
Ammeter (AYP part number) Price: $27.99 |
| 10 |
18-7570-01 |
WEIGHT-DRAG (MAIN) This part replaces 18-7570. Price: $43.13 |
| 10 |
532136850 |
Harness Asm Light W/4152j (AYP part number) This part replaces 532127441. Price: $15.99 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 11 |
532004152 |
LIGHTBULB This part replaces 532124893. Price: $2.99 |
| 12 |
3217-6 |
NUT-HEX Price: $1.19 |
| 12 |
532007697 |
Tube, Tray, Battery (AYP part number) This part replaces 532100541. Price: $6.23 |
| 13 |
532007192 |
WIRE TIE This part replaces 532124756. Price: $3.99 |
| 14 |
18-7520 |
DISCONTINUED Price: Call Us |
| 14 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $4.99 |
| 15 |
18-7380 |
DISCONTINUED Price: Call Us |
| 15 |
532124770 |
Cable, Battery (Battery to Solenoid) (AYP part number) Price: $8.99 |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 16 |
532365402 |
KIT.SWITCH.IGNITN This part replaces 532125104. Price: $17.99 |
| 17 |
3217-7 |
NUT-HEX Price: $0.28 |
| 17 |
532131708 |
Bracket, Ammeter Price: $2.99 |
| 18 |
18-7590 |
WEIGHT-DRAG (SECOND)*R Price: $17.41 |
| 18 |
532124211 |
Nut, Ignition (AYP part number) Price: $3.99 |
| 19 |
18-7580 |
DISCONTINUED Price: Call Us |
| 19 |
532122147 |
Key (AYP part number) Price: $4.99 |
| 20 |
18-7420 |
L/H UPPER RAKE WA *R Price: $236.44 |
| 20 |
819070816 |
Washer 7/32 x 1/2 x 16 Ga. (AYP part number) This part replaces 819070818. Price: $5.99 |
| 21 |
3217-5 |
NUT-HEX Price: $0.25 |
| 21 |
532110712 |
Switch, Light (AYP part number) Price: $4.99 |
| 22 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 22 |
873680400 |
Nut, Crownlock 1/4-20 (AYP part number) Price: $2.99 |
| 23 |
321-4 |
SCREW-HH Price: $0.99 |
| 23 |
810071000 |
LOCKWASHER This part replaces 810101000. Price: $2.99 |
| 24 |
18-7660-01 |
SWIVEL BRKT ASM This part replaces 18-7660. Price: $65.88 |
| 24 |
873911000 |
Nut (AYP part number) Price: $0.99 |
| 25 |
18-7650-01 |
WEIGHT-DRAG This part replaces 18-7650. Price: $23.01 |
| 25 |
532109081 |
Solenoid (AYP part number) Price: $22.99 |
| 26 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 26 |
77-5080-01 |
DRAG-SWIVEL This part replaces 18-7640. Price: $18.00 |
| 27 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 27 |
532124773 |
Cable, Battery (Battery to Ground) (AYP part number) Price: $4.99 |
| 28 |
321-5 |
SCREW-HH This part replaces 321-31. Price: $0.22 |
| 28 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 29 |
18-7460 |
DISCONTINUED Price: Call Us |
| 29 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 30 |
18-7360 |
LH WHL HOOP WA *R Price: $429.11 |
| 30 |
817021008 |
Screw, Tap. Hex Hd. #10-24 UNC (AYP part number) Price: $1.99 |
| 31 |
323-34 |
SCREW-HH This part replaces 323-3. Price: $0.54 |
| 31 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 32 |
325-5 |
SCREW-HH Price: $1.20 |
| 32 |
532109596 |
Clamp, Hose (AYP part number) Price: $2.99 |
| 33 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 34 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 35 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 36 |
18-7220 |
DISCONTINUED Price: Call Us |
| 36 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 37 |
874760412 |
Bolt, Hex i/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 38 |
18-7170 |
DISCONTINUED Price: Call Us |
| 39 |
18-7280 |
RAKE MT WA *R Price: $660.32 |
| 39 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 40 |
18-7530 |
BALL JOINT ASSY CENTE Price: $41.95 |
| 40 |
810040400 |
LOCKWASHER This part replaces 811050400. Price: $3.99 |
| 43 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 45 |
532108824 |
Fuse, 30 Amp. (AYP part number) Price: $3.99 |
| 51 |
532102501 |
Loop, Wire Tiller Attachment (AYP part number) Price: $9.49 |
| 52 |
532124995 |
Clip, Insulated (AYP part number) Price: $2.38 |
| 55 |
532004021 |
P.T.O. Switch (AYP part number) This part replaces 532126016. Price: $18.99 |
| 56 |
532004022 |
Hex Nut (AYP part number) This part replaces 532124932. Price: $2.99 |
| 57 |
532141226 |
Cover, Key Ignition (AYP part number) This part replaces 532123620. Price: $3.99 |
| 58 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 61 |
532121264 |
Caps, Battery Set (AYP part number) Price: $10.91 |
