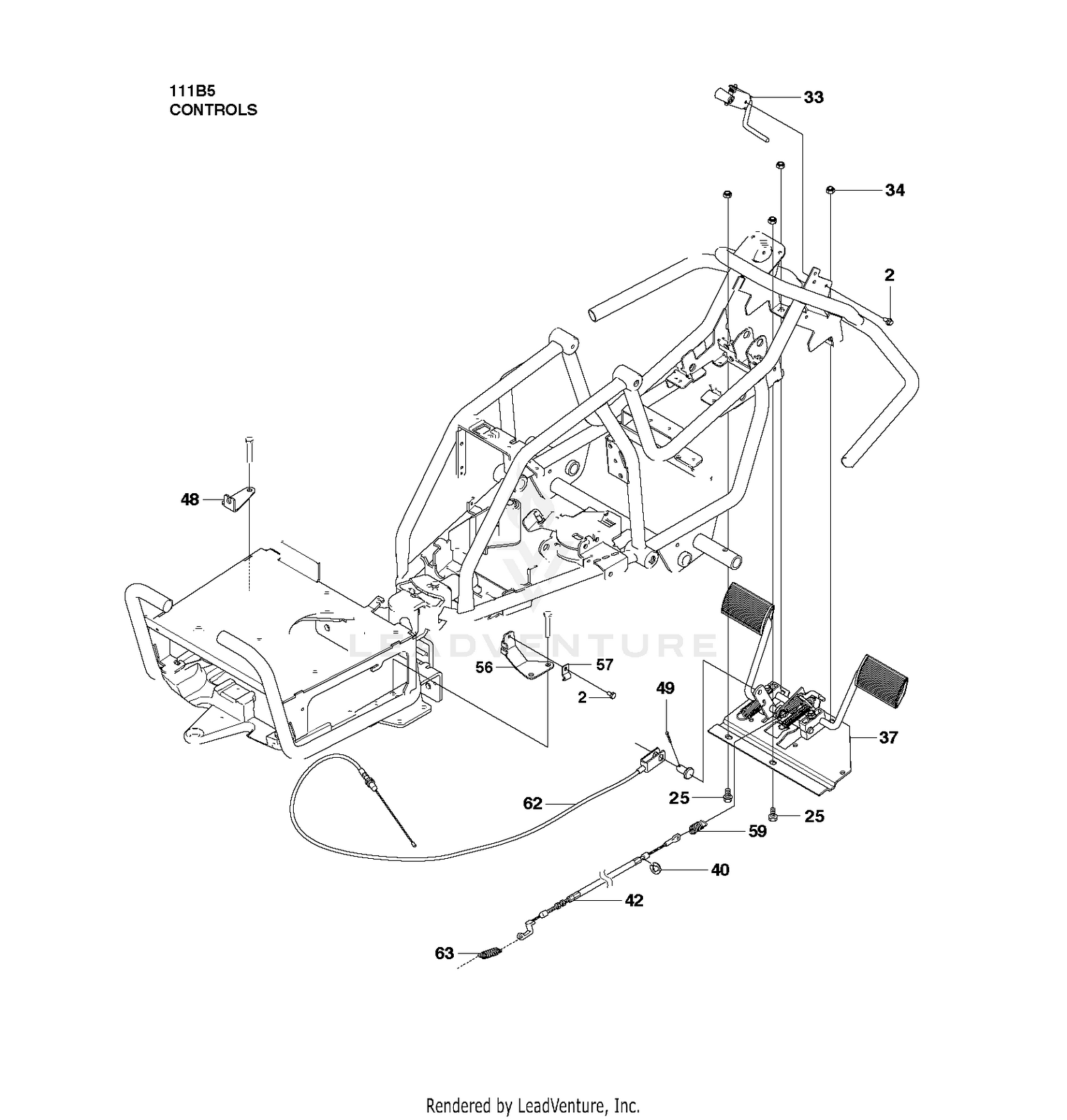

CONTROLS
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 2 | 725236461 | SCREW Price: $2.99 |
| 2 | 87-3470 | BUMPER Price: $18.89 |
| 3 | 110-5072 | BOLT-SHOULDER Price: $26.52 |
| 4 | 3217-8 | NUT-HEX Price: $1.34 |
| 5 | 107-8667 | DECAL-JACKING Price: $14.57 |
| 6 | 93-6161 | WASHER Price: $3.68 |
| 7 | 121-5089-03 | PLATE-TOP, SPRING Price: $34.56 |
| 8 | 127-2913 | SPACER Price: $11.26 |
| 9 | 26-0672 | BOLT-BLADE Price: $3.94 |
| 10 | 325-12 | SCREW-HH Price: $2.27 |
| 11 | 121-9774 | ABSORBER-SHOCK Price: $110.25 |
| 12 | 99-0569 | SPRING LEAF This part replaces 99-0570. Price: $176.73 |
| 13 | 42574 | SHACKEL-OUTSIDE Price: $7.32 |
| 14 | 87-7480 | WASHER Price: $1.26 |
| 15 | 106-0327 | NUT-HEX Price: $0.41 |
| 16 | 42576 | SHACKEL-INSIDE Price: $7.18 |
| 17 | 42592 | BUSHING-SHACKLE Price: $31.94 |
| 18 | 3253-6 | WASHER-LOCK Price: $0.39 |
| 19 | 93-6166 | NUT-HEX Price: $0.41 |
| 20 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 21 | 87-3920 | BUSHING Price: $1.48 |
| 25 | 506570103 | BOLT Price: $3.99 |
| 33 | 523346002 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 506916201 | NUT Price: $4.99 |
| 37 | 574406601 | NEEDS DESCRIPTION Price: Call Us |
| 40 | 735310920 | E-RING 5 Price: $3.99 |
| 42 | 574407602 | NEEDS DESCRIPTION Price: Call Us |
| 49 | 721615201 | Cotter Pin Price: $1.99 |
| 56 | 525314601 | NEEDS DESCRIPTION Price: Call Us |
| 57 | 506566501 | CLAMP Price: $2.99 |
| 59 | 575355201 | SPRING Price: $6.99 |
| 62 | 506952502 | NEEDS DESCRIPTION Price: Call Us |
| 63 | 506535603 | SPRING Price: $4.99 |
