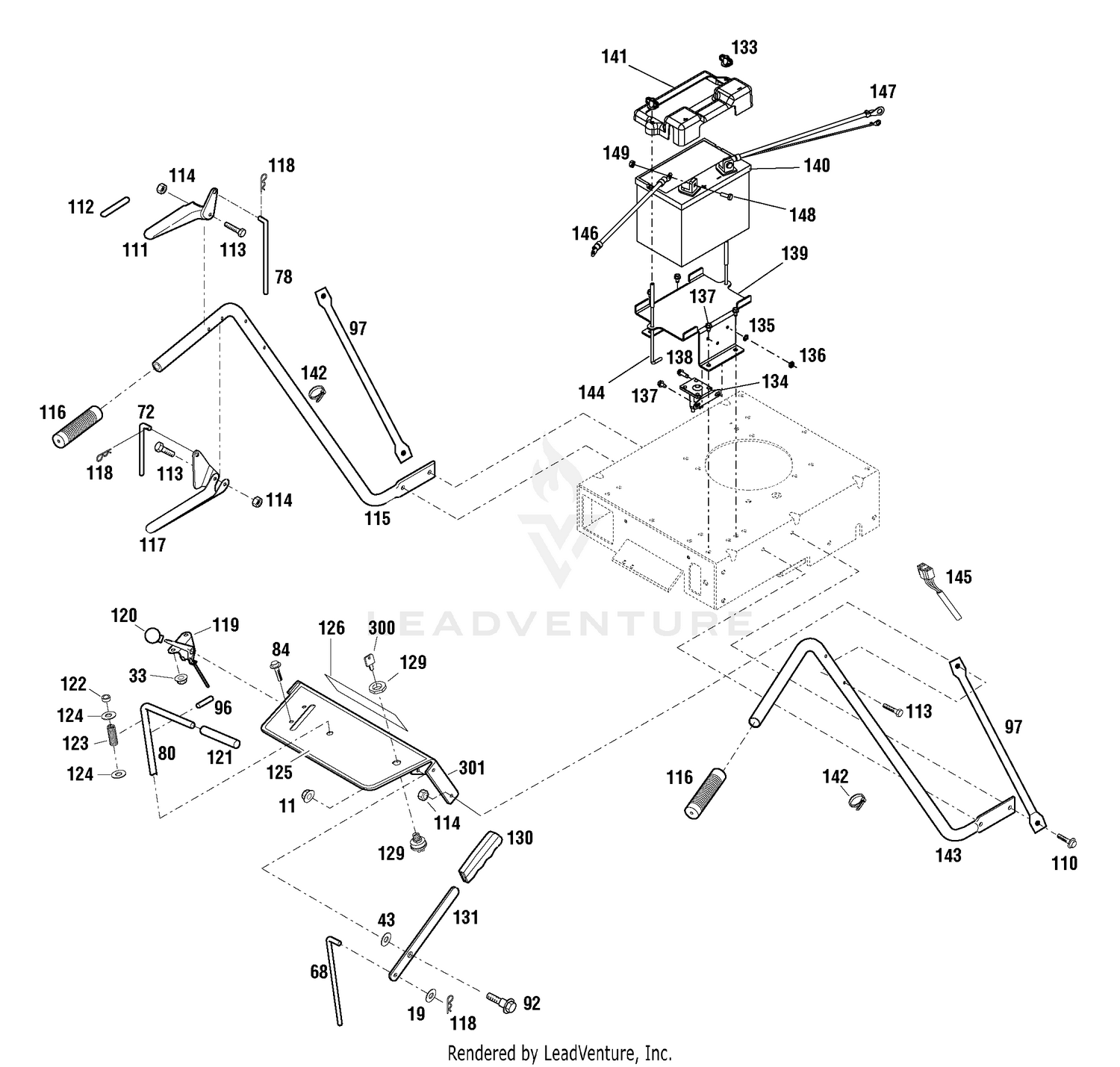

| Ref | Part Number | Description |
|---|
| 11 |
1186393 |
Flange Locknut, 3/8-16 Price: $2.63 |
| 19 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 33 |
1186389 |
Flange Locknut, 1/4-20 Price: $3.05 |
| 43 |
1702646 |
FLAT WASHER 1.0X.516X.031 Not Available Price: |
| 68 |
1769888 |
ROD-UPPER BLADE Not Available Price: |
| 72 |
1773607 |
ROD-UPPER CONTROL Not Available Price: |
| 78 |
1769872 |
ROD-UPPER BRAKE Not Available Price: |
| 80 |
1769874 |
SHIFT ROD Not Available Price: |
| 84 |
710-0599 |
Flange Lock Screw, 1/4-20 x 1/2 Price: $3.86 |
| 92 |
1703051 |
SHOULDER BOLT Not Available Price: |
| 96 |
1185279 |
ROLL PIN Not Available Price: |
| 110 |
710-0817 |
Flange Lock Screw, 5/16 x 3/4 Price: $5.77 |
| 111 |
1770445 |
CONTROL HANDLE Not Available Price: |
| 112 |
777I00001 |
LABEL-OP CONTROL 3 Not Available Price: |
| 113 |
710-0136 |
Screw, 1/4-20 x 1-3/4, Grade 8 Price: $3.66 |
| 114 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 712-3055. Price: $3.93 |
| 116 |
720-0274 |
Handle Grip This part replaces 1703539. Price: $9.99 |
| 117 |
1773605 |
ASSEMBLY-HANDLE CONTROL Not Available Price: |
| 118 |
1717897 |
PIN-CLIP Not Available Price: |
| 119 |
1768191P |
THROTTLE CABLE Not Available This part replaces 1768191. Price: |
| 120 |
731-0108 |
Knob, Throttle Control This part replaces 1737118. Price: $8.12 |
| 121 |
720-0312 |
Foam Grip This part replaces 1737041. Price: $4.06 |
| 122 |
1715716 |
Nylon Bushing Not Available Price: |
| 123 |
1721492 |
SPRING Not Available Price: |
| 124 |
736-3019 |
Flat Washer, 1/2 Price: $5.45 |
| 130 |
720-0313 |
Handle Grip Price: $17.16 |
| 131 |
1768223 |
LEVER-MOWER ENGAGE Not Available Price: |
| 142 |
725-0157 |
Plastic Tie Price: $3.46 |
