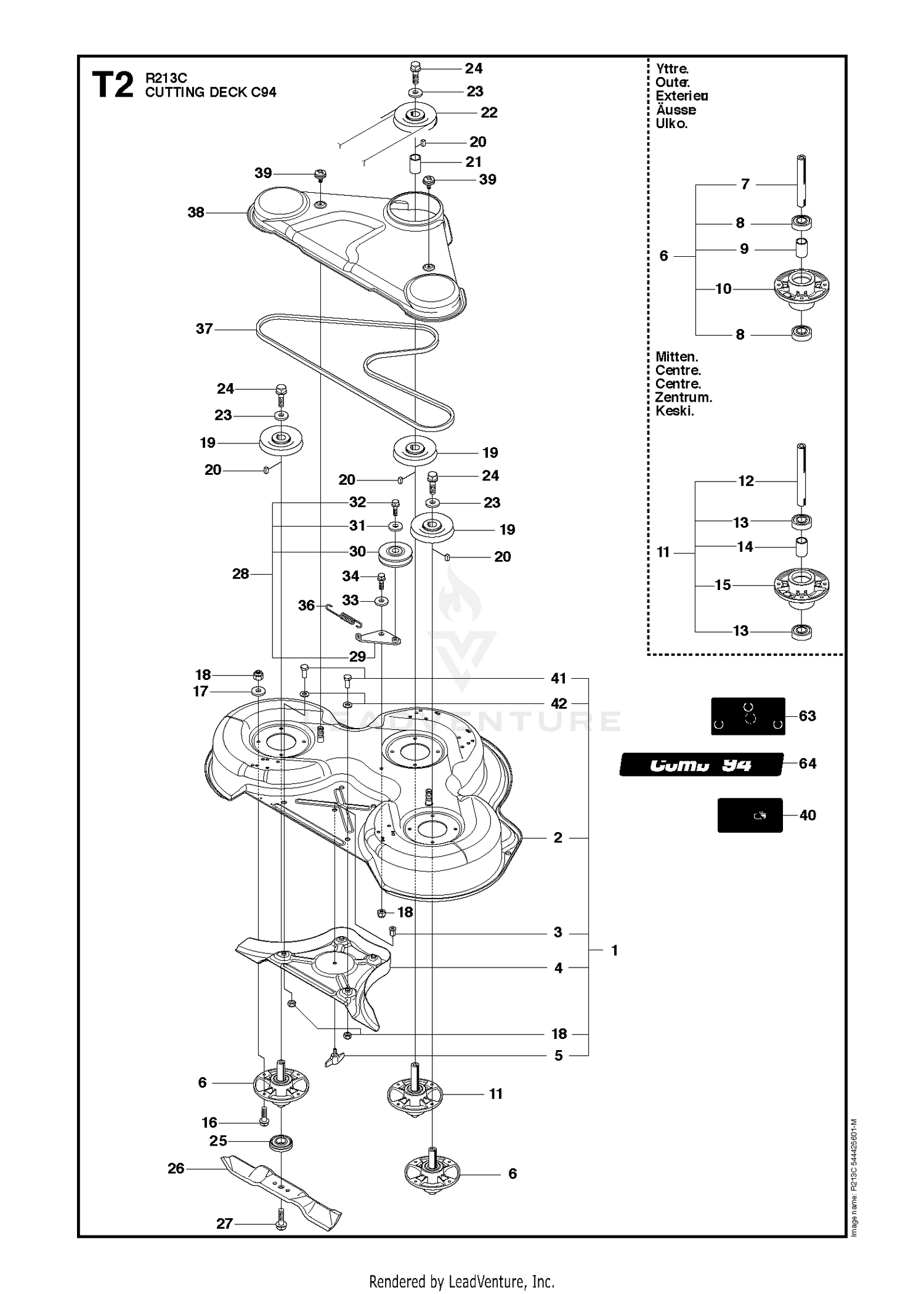

94CM CUTTING DECK
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544065704 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 544065506 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 506916201 | NUT Price: $4.99 |
| 4 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 5 | 544066101 | KNOB Price: $4.99 |
| 6 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 7 | 576384302 | SHAFT Price: $21.99 |
| 8 | 738230434 | BEARING Price: $17.99 |
| 9 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 10 | 576384201 | BEARING HOUSING Price: $29.99 |
| 11 | 576384103 | Price: Call Us |
| 12 | 576384303 | Price: Call Us |
| 13 | 738230434 | BEARING Price: $17.99 |
| 14 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 15 | 576384201 | BEARING HOUSING Price: $29.99 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 506922101 | PULLEY Price: $29.99 |
| 20 | 506533501 | KEY Price: $3.99 |
| 20 | 98-9453 | PULLEY-DYNAMO Price: $138.04 |
| 21 | 544068003 | SPACING SLEEVE Price: $12.99 |
| 22 | 506778601 | PULLEY Price: $49.99 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 506675402 | BOLT Price: $5.99 |
| 25 | 544064901 | BLADE BRACKET Price: $7.99 |
| 26 | 579652510 | BLADE Price: $22.99 |
| 27 | 506675402 | BOLT Price: $5.99 |
| 28 | 506797301 | Price: Call Us |
| 29 | 506797101 | BRACKET Price: $22.99 |
| 30 | 586964001 | Belt Tensioners This part replaces 506793201. Price: $34.99 |
| 30 | 98-7708 | NUT Price: $7.76 |
| 31 | 734116441 | SPACER Price: $3.99 |
| 32 | 506558302 | BOLT Price: $3.99 |
| 33 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 34 | 725245171 | SCREW Price: $2.08 |
| 36 | 506533101 | SPRING Price: $9.99 |
| 37 | 589530701 | BELT Price: $49.99 |
| 38 | 522821901 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 544400501 | SCREW Price: $3.99 |
| 40 | 117-0316 | DRIVE END FRAME ASM Price: $1,076.07 |
| 40 | 574510001 | DECAL Price: $2.99 |
| 41 | 725245171 | SCREW Price: $2.08 |
| 42 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 50 | 133-2811 | BEARING Price: $46.67 |
| 60 | 98-7715 | PLATE-RETAINER Price: $9.38 |
| 63 | 506789701 | Decal Price: $21.55 |
| 64 | 544238101 | Price: Call Us |
| 70 | 98-7716 | SCREW-HEAD, ROUND Price: $0.91 |
| 80 | 98-7717 | BOLT-THROUGH Price: $9.75 |
| 90 | 117-0317 | ROTOR ASM Price: $662.02 |
| 100 | 98-7711 | COVER-BEARING Price: $7.32 |
| 110 | 107-0138 | BEARING-BALL Price: $48.37 |
| 120 | 133-2813 | FRAME-END Price: $148.89 |
| 130 | 117-0322 | HOLDER Price: $393.13 |
| 140 | 107-0141 | BRUSH HOLDER ASM Price: $107.10 |
| 150 | 98-7724 | BRUSH Price: $12.41 |
| 160 | 98-7725 | SPRING-BRUSH Price: $4.32 |
| 170 | 117-0319 | REGULATOR ASM Price: $363.64 |
| 180 | 98-7728 | SCREW-HEAD, ROUND Price: $0.70 |
| 190 | 98-7727 | SCREW-HEAD, ROUND Price: $0.94 |
| 200 | 98-7729 | BOLT Price: $2.35 |
| 210 | 98-7726 | SCREW-HEAD, ROUND Price: $0.42 |
| 220 | 98-7731 | BOLT Price: $3.94 |
| 230 | 117-0320 | COVER-END Price: $107.22 |
| 240 | 117-0321 | INSULATION-BRUSH Price: $39.99 |
| 250 | 98-7730 | NUT Price: $1.31 |
| 260 | 98-7732 | NUT Price: $1.45 |
