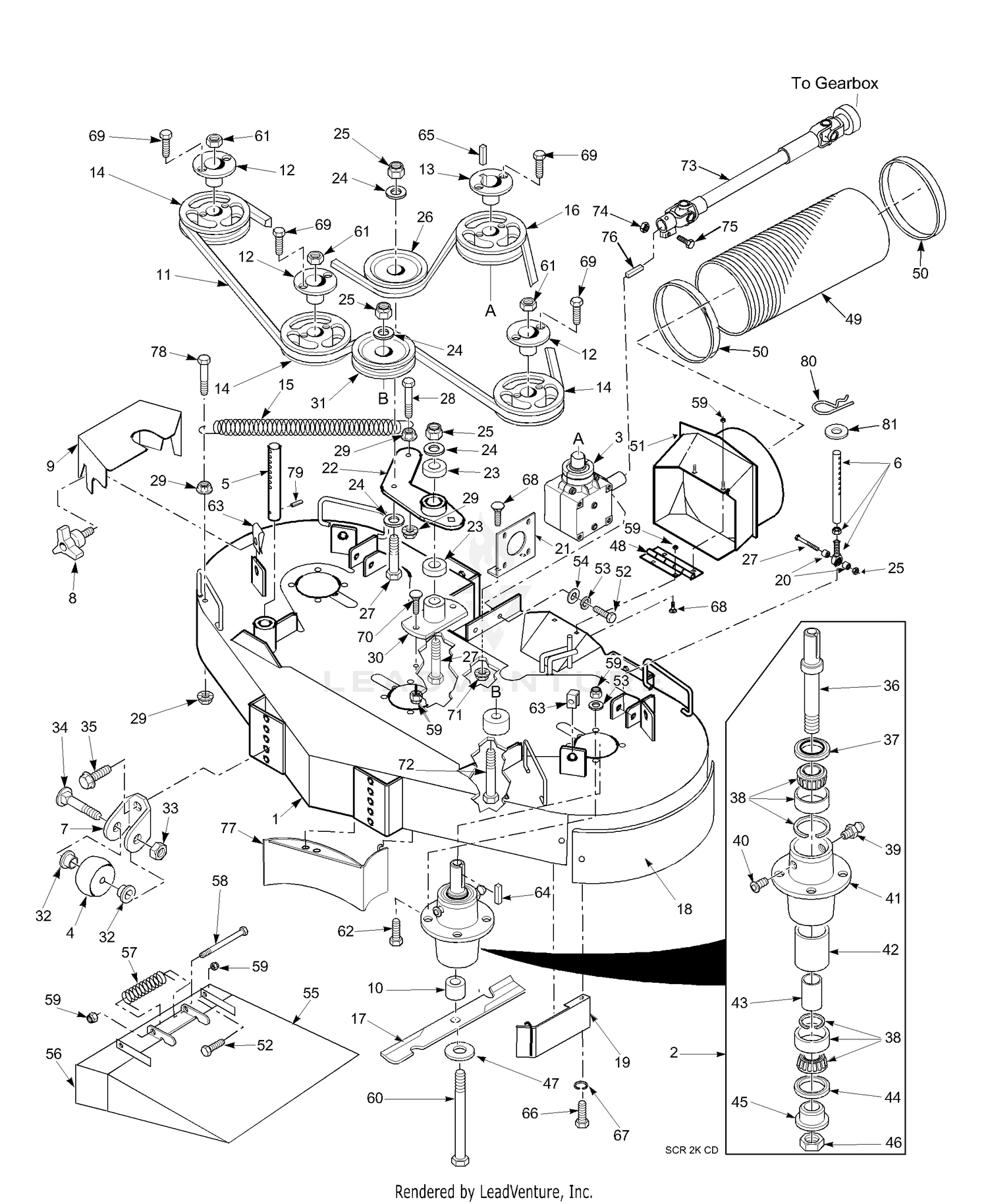

| Ref | Part Number | Description |
|---|
| 1 |
461330 |
Cutter Deck with Decals Price: Call Us |
| 2 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 3 |
482486 |
Gearbox, Cutter Deck This part replaces 481516. Price: Call Us |
| 4 |
481632 |
Wheel, Anti-Scalp Price: Call Us |
| 5 |
43515 |
Pin, Front Deck Height Adjustment Price: Call Us |
| 6 |
482075 |
Pin, Rear Deck Height Adjustment Price: Call Us |
| 7 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 8 |
481625-01 |
Knob w/Stud Price: Call Us |
| 9 |
422807 |
LH Belt Cover Price: Call Us |
| 10 |
43590 |
Spacer, Spindle Bottom This part replaces 43309. Price: Call Us |
| 11 |
481979 |
Belt, Cutter Deck Drive Price: Call Us |
| 12 |
48926 |
Hub, Tapered 1.125" bore Price: Call Us |
| 13 |
48141 |
Hub, Tapered 1.00" bore Price: Call Us |
| 14 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 15 |
481522 |
Spring, Belt Tension Price: Call Us |
| 16 |
482745 |
Pulley, 6.35 O.D. This part replaces 48753. Price: Call Us |
| 17 |
482450 |
Blade, Cutter 16.5" LH This part replaces 481997. Price: Call Us |
| 18 |
451126 |
Skirt, Weldment Bolt On Price: Call Us |
| 19 |
451091 |
Baffle, Bolt On Price: Call Us |
| 20 |
43512 |
Spacer Price: Call Us |
| 21 |
422426 |
Plate, Gearbox Mounting Price: Call Us |
| 22 |
451096 |
Idler Arm Price: Call Us |
| 23 |
48224 |
Bearing, Ball Price: Call Us |
| 24 |
04043-04 |
Flat Washer 3/8" Price: Call Us |
| 25 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 26 |
483215 |
Pulley, 5" Dia. Idler This part replaces 48269. Price: Call Us |
| 27 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2.5" Price: Call Us |
| 28 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1.5 GR8 Price: Call Us |
| 29 |
04019-04 |
Nut, Serr. Flng. 3/8-16 Price: Call Us |
| 30 |
422713 |
Pivot, Idler Arm Price: Call Us |
| 31 |
483215 |
Pulley, 5" Dia. Idler This part replaces 48269. Price: Call Us |
| 32 |
48100-15 |
Bushing .376 ID Oilite Price: Call Us |
| 33 |
04021-05 |
Lock Nut, 3/8-16 Center Lock Price: Call Us |
| 34 |
04003-26 |
Bolt, Carriage 3/8-16 x 4.0" Price: Call Us |
| 35 |
04017-27 |
Bolt, Hex Serr. Flng. 3/8-16 x 1.0" Price: Call Us |
| 36 |
43589 |
Shaft, Spindle This part replaces 43298. Price: Call Us |
| 37 |
481024 |
Seal, Top Price: Call Us |
| 38 |
481022 |
Bearing Assembly Price: Call Us |
| 39 |
48114-04 |
Grease Fitting Price: Call Us |
| 40 |
48677 |
Relief Fitting, Grease Price: Call Us |
| 41 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 42 |
43312 |
Spacer, Outside Price: Call Us |
| 43 |
43296 |
Spacer, Inside Price: Call Us |
| 44 |
481025 |
Seal, Bottom Price: Call Us |
| 45 |
43297 |
Bushing, Spindle Bottom Price: Call Us |
| 46 |
481035 |
Nut, Special 1 - 1/16-18 Price: Call Us |
| 47 |
04040-10 |
Flat Washer 5/8" Price: Call Us |
| 48 |
482077 |
Hinge, Rear Chute Price: Call Us |
| 49 |
482076 |
Tube, Discharge 8" ID Price: Call Us |
| 50 |
482134 |
Clamp, Duct 8" Price: Call Us |
| 51 |
451117 |
Chute, Rear Discharge Price: Call Us |
| 52 |
04001-09 |
Bolt, HH 5/16-18 x 1.0" Price: Call Us |
| 53 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 54 |
04040-15 |
Washer, Flat 5/16" Price: Call Us |
| 55 |
461329 |
Chute, Side Discharge Price: Call Us |
| 56 |
461328 |
Bracket, Side Discharge Chute Price: Call Us |
| 57 |
482245 |
Spring, Discharge Chute This part replaces 481050. Price: Call Us |
| 58 |
04001-108 |
Bolt, HH 5/16-18 x 4.5" Price: Call Us |
| 59 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 60 |
04001-158 |
Bolt, 5/8-11 x 9.5" LH Thread Price: Call Us |
| 61 |
04020-29 |
Nut, 5/8-11 LH Thread Price: Call Us |
| 62 |
04001-10 |
Bolt, HH 5/16-18 x 1.25" Price: Call Us |
| 63 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 64 |
04063-08 |
Key, 1/4 x 1/4 x 2.0" Price: Call Us |
| 65 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Price: Call Us |
| 66 |
04001-19 |
Bolt, 3/8-16 x 1.0" Price: Call Us |
| 67 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 68 |
04003-12 |
Bolt, Carriage 5/16-18 x .75" Price: Call Us |
| 69 |
04001-01 |
Bolt, HH 1/4-20 x .75" Price: Call Us |
| 70 |
04003-04 |
Bolt, Carriage 5/16-18 x 1.0" Price: Call Us |
| 71 |
04019-03 |
Nut, Serr. Flng. 5/16-18 Price: Call Us |
| 72 |
04001-62 |
Bolt, HH 3/8-16 x 3.25" Price: Call Us |
| 73 |
482426 |
Driveshaft This part replaces 481988. Price: Call Us |
| 74 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 75 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 76 |
04063-01 |
Key, 1/4 x 1/4 x 1-1/4" Price: Call Us |
| 77 |
451092 |
Baffle Price: Call Us |
| 78 |
04001-135 |
Bolt, Hex Head 3/8-16 x 1-3/4" Gr.8 Price: Call Us |
| 79 |
04060-08 |
Roll Pin Price: Call Us |
| 80 |
04062-04 |
Hair Pin Cotter Price: Call Us |
| 422808 |
RH |
Belt Cover Price: Call Us 422808 |
