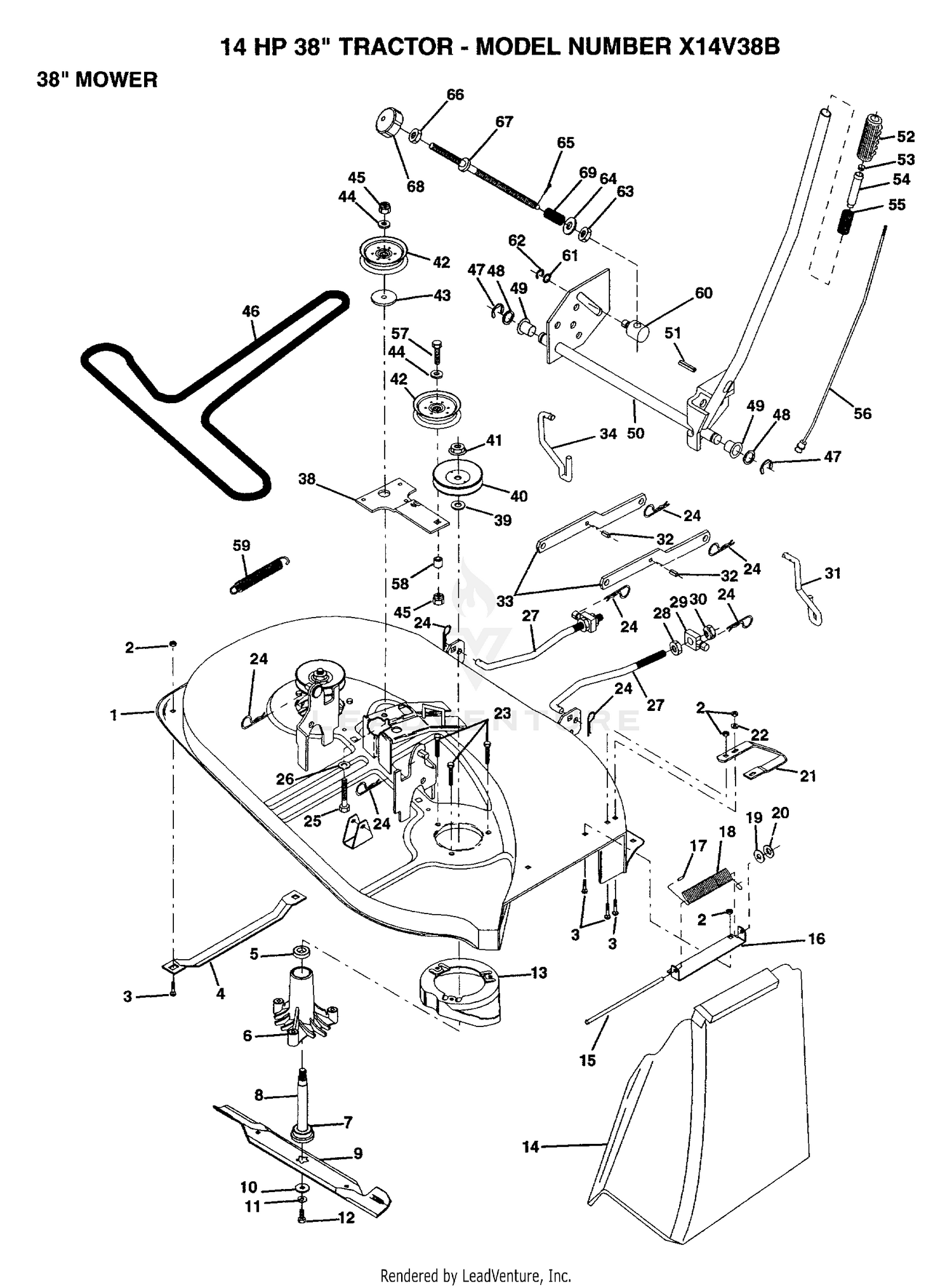

MOWER

MOWER

Parts (96)

RefPart NumberDescription
1 129365 SUB= 145775 Price: Call Us
1 323-6 SCREW-HH Price: $0.66
2 3253-21 WASHER-LOCK Price: $0.28
2 73680500 SUB= 73690500 Price: Call Us
3 32149-2 NUT-KEPS Price: $2.39
3 72140506 BOLT Price: Call Us
4 321-3 SCREW-HH Price: $0.28
4 7631J RUNNER-LH M Price: Call Us
5 110485X BEARING Price: Call Us
5 256-273 BUSHING-FLANGE Price: $4.55
6 128774 HSG ASM MANDREL Price: Call Us
6 43-6320 COLLAR Price: $24.71
7 129895 BEARING.BALL Price: Call Us
7 71-0440 ABRASIVE-PEDAL Price: $15.80
8 133172 SUB= 137646 Price: Call Us
8 69-9390 SHAFT-PEDAL Price: $71.62
9 127842 SUB= 138497 Price: Call Us
9 71-0450 ABRASIVE-PEDAL, REAR Price: $10.39
10 129962 WASHER BLADE Price: Call Us
10 3234-14 SCREW-HHF Price: $0.61
11 10030600 SUB= 10040600 Price: Call Us
11 32128-20 NUT-HF Price: $0.99
12 3217-7 NUT-HEX Price: $0.28
12 850857 BLADE BOLT Price: Call Us
13 128961 SUB= 140329 Price: Call Us
13 69-9030 POST-DEVICE, NEUTRAL Price: $39.15
14 106736X DEFLECTOR-SHLD T Price: Call Us
14 23-2270 BUSHING-RUBBER Price: $17.07
15 106735X ROD-HINGE T Price: Call Us
15 3256-6 WASHER-FLAT Price: $0.34
16 105896X SUB= 137607 Price: Call Us
16 3272-10 PIN-COTTER Price: $0.25
17 107-1179-03 CONTROL-ROD Price: $189.90
17 110452X NUT PUSH M Price: Call Us
18 106734X SUB= 123713X Price: Call Us
18 3220-5 NUT-JAM Price: $0.65
19 19111016 WASHER Price: Call Us
19 61-3530 BEARING-ROD END, RH Price: $52.61
20 105304X CAP-SLEEVE LT Price: Call Us
20 3296-39 NUT-LOCK, NI Price: $2.29
21 128772 RUNNER RH Price: Call Us
21 3272-7 PIN-COTTER Price: $0.25
22 19111216 WASHER M Price: Call Us
22 99-5347-03 TRACTION PEDAL ASM Price: $219.38
23 3245-1 SCREW-SET, HSH Price: $0.54
23 78158 SUB= 17580520 Price: Call Us
24 4939M SUB= 85902 Price: Call Us
24 99-5348 PLATE-CLUTCH Price: $61.10
25 43-6200 SPRING-COMPRESSION Price: $20.42
25 74600636 BOLT Price: Call Us
26 100-8016 FIELD CORE COIL ASM Price: $165.29
26 19131612 WASHER GT Price: Call Us
27 127218 LINK.FRONT Price: Call Us
27 92-9701 SHAFT-CRUISE Price: $101.17
28 3290-378 TIE-CABLE Price: $0.79
28 73350800 NUT Price: Call Us
29 130171 TRUNION Price: Call Us
29 3256-26 WASHER-FLAT Price: $0.39
30 323-10 SCREW-HH Price: $0.89
30 73800800 NUT.LK.W/WSH.1/2. Price: Call Us
31 135388 LIFT LINK RH Price: Call Us
31 3256-3 WASHER-FLAT Price: $0.49
33 130832 SUB= 130833 Price: Call Us
34 134619 LINK LIFT LH Price: Call Us
38 133840 IDLER ARM ASSY Price: Call Us
39 129963 WASHER Price: Call Us
40 129206 SUB= 153532 Price: Call Us
41 73050900 SUB= 139729 Price: Call Us
42 131494 FLAT IDLER PULLEY Price: Call Us
43 122052X SPACER RETAINER Price: Call Us
44 19131316 WASHER Price: Call Us
45 73680600 SUB= 73690600 Price: Call Us
46 131290 BELT-V.88.12.MW Price: Call Us
47 12000002 SUB= 2225J Price: Call Us
48 19211416 WASHER Price: Call Us
49 120183X NYLON BEARING Price: Call Us
50 122507X SUB= 145117 Price: Call Us
51 105767X PIN-GROOVE LT Price: Call Us
52 109413X GRIP Price: Call Us
53 124526X SUB= 125925X Price: Call Us
54 122364X SUB= 125925X Price: Call Us
55 122512X SUB= 532122512 Price: Call Us
56 122514X SUB= 136973 Price: Call Us
57 74760644 BOLT Price: Call Us
58 132823 SUB= 532132823 Price: Call Us
59 131950 SPRING.EXTENSION Price: Call Us
60 110810X TRUNION LT Price: Call Us
61 19151216 WASHER Price: Call Us
62 12000037 KLIP RING Price: Call Us
63 110807X NUT T Price: Call Us
64 19131016 WASHER Price: Call Us
65 76020308 SUB= 3145 Price: Call Us
66 73350600 NUT Price: Call Us
67 126971X SUB= 532126971 Price: Call Us
68 100734K SUB= 138057 Price: Call Us
69 2876H SPRING T Price: Call Us
