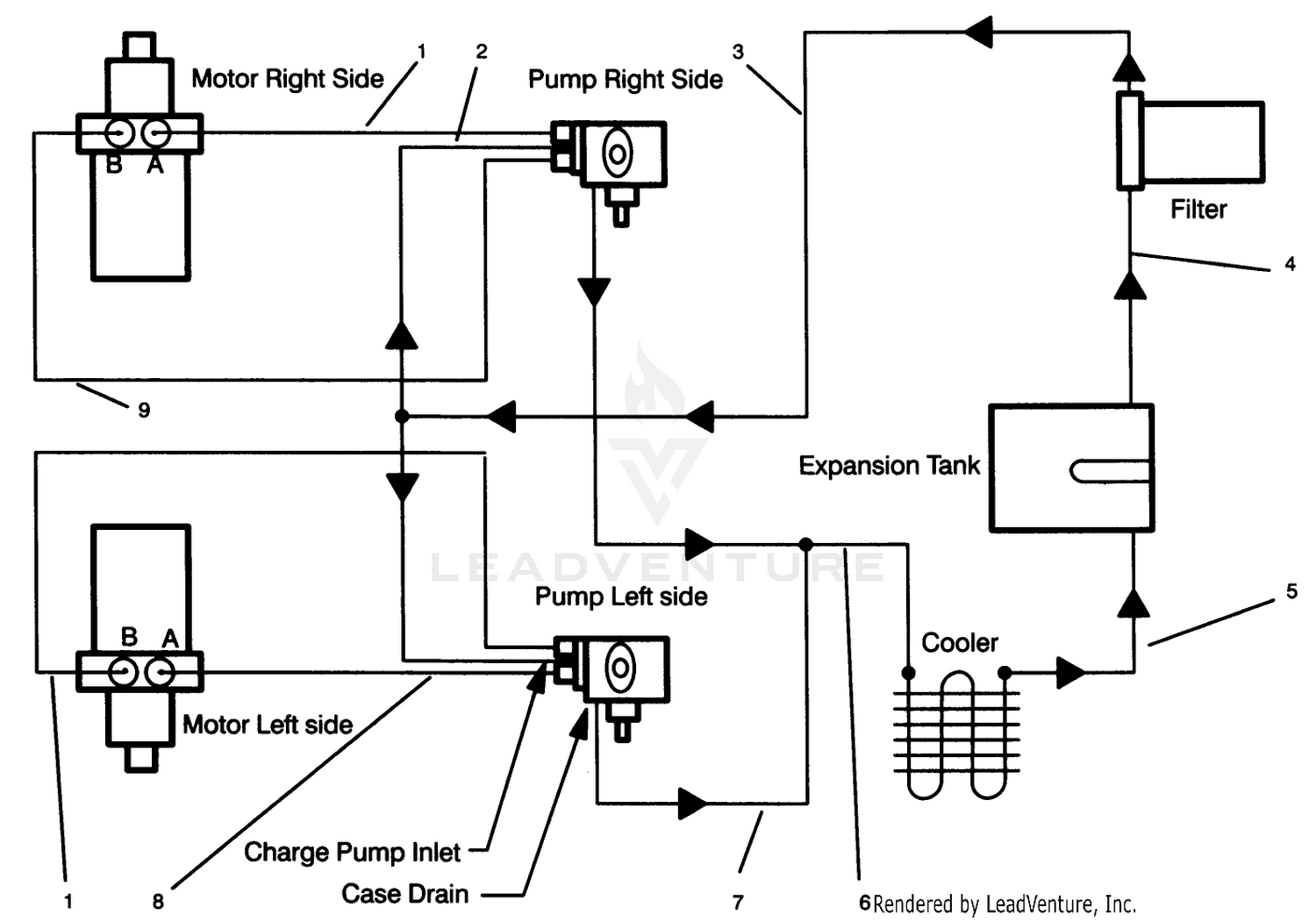

Hydraulic Schematic
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-0825 | HYD HOSE ASM This part replaces 82-4550. Price: $136.67 |
| 2 | 82-4170 | HYD HOSE ASM Price: $46.70 |
| 3 | 82-4180 | HYDRAULIC HOSE ASM Price: $44.46 |
| 4 | 82-4200 | HYD HOSE ASM Price: $83.84 |
| 5 | 82-4193 | HYDRAULIC HOSE ASM Price: Call Us |
| 6 | 82-41920 | Hose Assembly Price: Call Us |
| 7 | 82-4201 | HYD HOSE ASM Price: $46.23 |
| 8 | 106-0826 | HYD HOSE ASM This part replaces 82-4560. Price: $137.39 |
