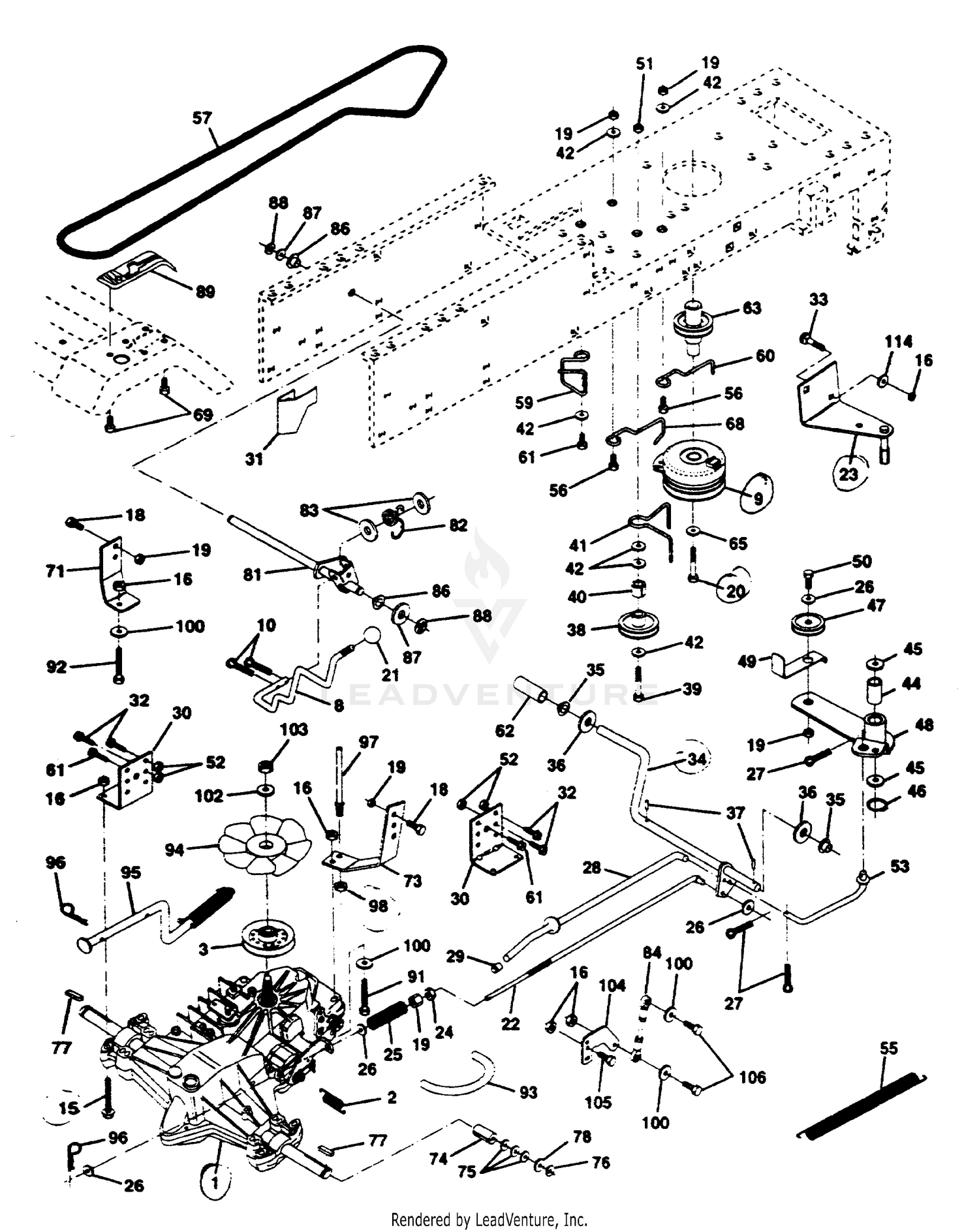

| Ref | Part Number | Description |
|---|
| 1 |
532150071 |
TRANSAXLE ASSEMBLY Price: $974.57 |
| 2 |
532142431 |
SPRING BRAKE Price: $4.99 |
| 3 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 8 |
532141003 |
ROD SHIFT Price: $10.40 |
| 9 |
532145028 |
CLUTCH.ELECT.EVX. Price: $299.99 |
| 10 |
127-0487 |
PISTON (STD) Price: $237.45 |
| 10 |
127-0488 |
PISTON (+0.50MM) Price: $219.32 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 15 |
596218601 |
Bolts This part replaces 874780544. Price: $3.99 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
127-0485 |
PISTON RING ASM (STD) Price: $41.84 |
| 20 |
127-0486 |
PISTON RING ASM (+0.50MM) Price: $41.84 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
532145627 |
ROD BRAKE HYDRO Price: $169.99 |
| 23 |
532154978 |
BRACKET, ASM CLUTCH MTG This part replaces 532140275. Price: $5.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 29 |
532071873 |
NEEDS DESCRIPTION Price: Call Us |
| 30 |
532130807 |
BRACKET TRANSAXLE Price: $3.99 |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 31 |
532127275 |
KEEPER BELT LH Price: $3.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 34 |
532149001 |
SHAFT PEDAL FOOT Price: $27.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 41 |
532109070 |
BELT KEEPER LT NLA Price: $6.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 44 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 45 |
532110812 |
WASHER LT Price: $3.10 |
| 46 |
812000039 |
KLIP RING Price: $4.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532123789 |
ARM IDLER Price: $13.07 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
117-7586 |
CONNECTING ROD ASM Price: $547.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $17.99 |
| 60 |
115-3014 |
BUSHING-PIN, PISTON Price: $19.81 |
| 60 |
532105730 |
KEEPER,BLT ENG LT Price: $3.99 |
| 61 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 63 |
532145868 |
PULLEY, CLUTCH ELECT EVX Price: $69.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 68 |
582121218 |
NEEDS DESCRIPTION Price: Call Us |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 71 |
532140158 |
STRAP LH TORQUE Price: $5.99 |
| 73 |
532140157 |
STRAP RH TORQUE Price: $2.42 |
| 74 |
532121199 |
SPACER SPLIT Price: $3.12 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 81 |
532156046 |
SHAFT ASSY This part replaces 532140154. Price: $15.23 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532140548 |
ROD.TIE.BALL.4.75 Price: $32.99 |
| 86 |
532071208 |
BUSHING.STEERING.ROD LTB-WSL Price: $3.99 |
| 87 |
819212016 |
WASHER D Price: $4.99 |
| 88 |
812000008 |
KLIP RING Price: $2.99 |
| 89 |
532153764 |
CONSOLE This part replaces 532139988. Price: $12.99 |
| 90 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) Price: $60.46 |
| 91 |
596434801 |
Bolts This part replaces 874780536. Price: $2.99 |
| 92 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 93 |
532142564 |
LINE FUEL HYD 4" Price: $3.99 |
| 94 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 95 |
532167696 |
CONTROL.ASM.BYPASS.HYDRO.99 This part replaces 532144643. Price: $9.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 97 |
532140469 |
KEEPER BELT RH Price: $2.99 |
| 98 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 100 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 102 |
532141322 |
WASHER Price: $3.99 |
| 103 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 105 |
871070516 |
SCREW Price: $3.99 |
| 106 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 114 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 734116301. Price: $2.99 |
| 120 |
117-7561 |
GEAR-CRANKSHAFT Price: $87.12 |
| 130 |
98-9666 |
KEY Price: $3.58 |
| 140 |
127-0445 |
GEAR-DRIVE, OIL PUMP Price: $14.70 |
| 150 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 160 |
127-0444 |
COLLAR-CRANKSHAFT Price: $42.94 |
| 170 |
105-3783 |
O-RING Price: $6.33 |
| 180 |
127-0432 |
METAL-CRANKSHAFT (-0.4MM) Price: $39.56 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 190 |
127-0416 |
METAL-SIDE (+0.2MM) Price: $21.04 |
| 190 |
127-0417 |
METAL-SIDE (+0.40MM) Price: $12.65 |
| 190 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
127-0437 |
METAL-SIDE (+0.2MM) Price: $18.42 |
| 200 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
