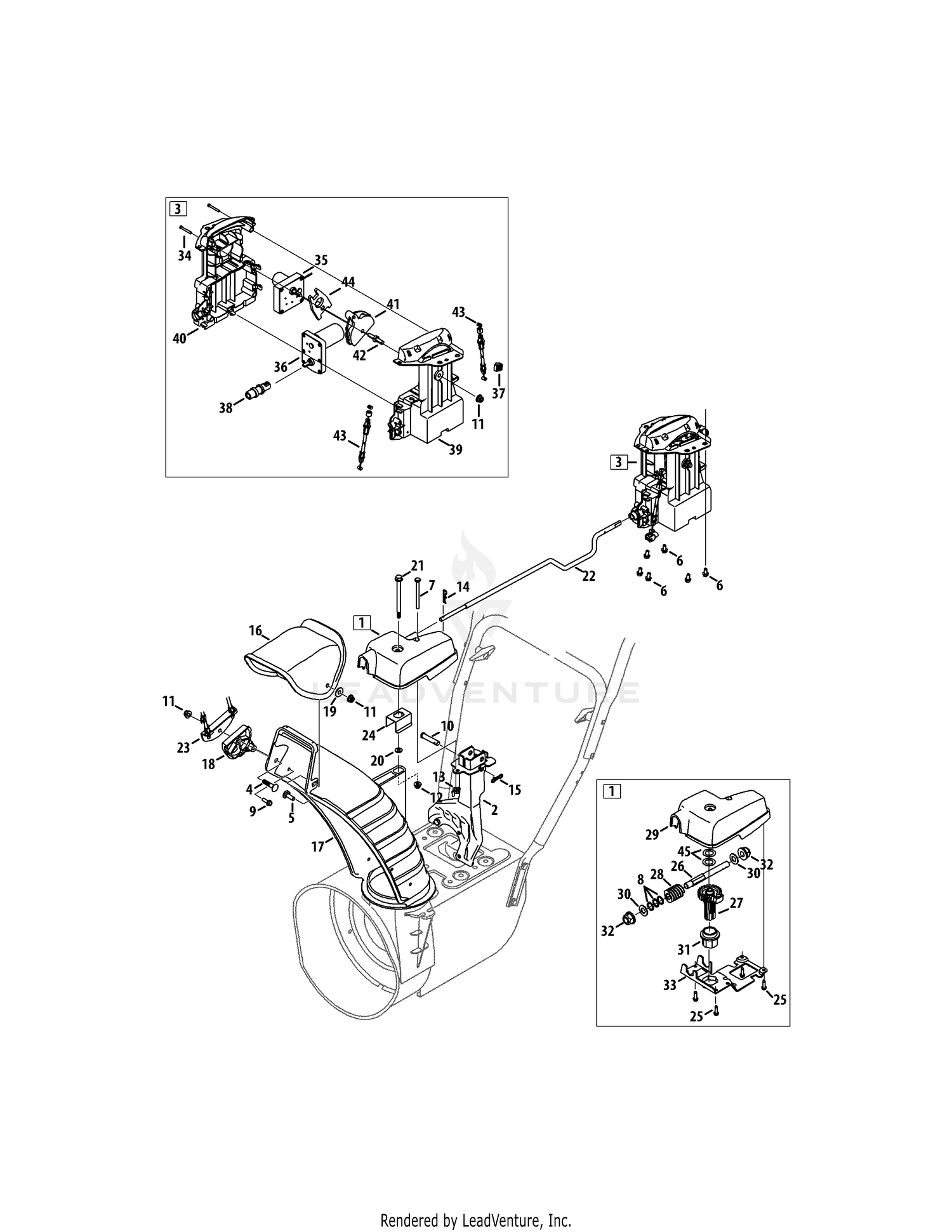

| Ref | Part Number | Description |
|---|
| 1 |
918-04932B |
Gearbox Assembly, Chute Rotation Price: $67.97 |
| 2 |
684-04310B-0637 |
CHUTE SUPPORT BRACKET (POWDER BLACK) This part replaces 684-04310A-0637. Price: $35.80 |
| 3 |
984-05051 |
Chute Assembly, 4-Way Elec. Price: $363.95 |
| 4 |
710-0262 |
Bolt, Carriage, 5/16-18 x 1.50 Price: $3.66 |
| 5 |
710-04071 |
Bolt, Carrier, 5/16-18 x 1.00 Price: $3.94 |
| 6 |
710-04187A |
Screw, HL, 1/4-15 x 0.50 Price: $5.99 |
| 7 |
710-04370 |
Hex Head Screw, 1/4-20 x 3.00 Price: $3.66 |
| 8 |
736-04202 |
Shim Washer, .504 x .700 x .010 Price: $3.00 |
| 9 |
710-0895 |
Screw, HL, 1/4-15 x 0.750 Price: $5.82 |
| 10 |
711-04469A |
Clevis Pin, 3/8 x 1.87 Price: $5.15 |
| 11 |
712-04063 |
Nut, Flangelock, 5/16-18 Price: $3.56 |
| 12 |
712-04064 |
Nut, Flangelock, 1/4-20 Price: $3.64 |
| 13 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 14 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 15 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 16 |
731-04427B |
UPPER REMOTE CHUTE WITH LABEL This part replaces 731-04427A. Price: $14.55 |
| 17 |
731-06440A |
Chute, Lower Price: $45.59 |
| 18 |
731-06451 |
Cable Guide, Chute Tilt Price: $4.26 |
| 19 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 20 |
736-04446 |
Washer, Flat, .25 x .630 Price: $3.75 |
| 21 |
738-04367 |
Screw, Shoulder, .312 x 3.5 x 1/4-20 Price: $4.36 |
| 22 |
747-05721 |
Chute Crank Rod Price: $25.46 |
| 23 |
784-5594-0637 |
Cable Bracket Price: $10.15 |
| 24 |
790-00503 |
Chute Bracket Price: $5.59 |
| 25 |
710-04373A |
Screw, 12-16 x .75 Price: $3.86 |
| 26 |
911-05752 |
Hex Shaft Price: $7.44 |
| 27 |
917-04973A |
Gear, 23 T Price: $13.05 |
| 28 |
917-05019 |
Worm Price: $5.72 |
| 29 |
731-07529A |
Gear Cover Price: $16.45 |
| 30 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 31 |
741-04388A |
Flange Bearing, 1.00 ID Price: $6.21 |
| 32 |
741-04453A |
Flange Bearing, .50 ID Price: $3.86 |
| 33 |
790-00342C-0637 |
Gear Bracket Price: $24.60 |
| 34 |
710-04509 |
Screw, #10-16 x 1.25 Price: $3.36 |
| 35 |
724-04209 |
Chute Pitch Motor Price: $121.13 |
| 36 |
724-04210 |
Chute Rotation Motor Price: $158.37 |
| 37 |
731-07868 |
CABLE CLIP Price: $3.00 |
| 38 |
731-08795 |
Electric Chute Coupler Price: $3.70 |
| 39 |
731-08845A |
Housing, LH Price: $19.55 |
| 40 |
731-08846 |
Housing, RH Price: $19.55 |
| 41 |
731-1313C |
Cable Guide Price: $10.46 |
| 42 |
938-0849 |
Hex Screw, 5/16-18 x .75 Price: $8.82 |
| 44 |
748-04297A |
CHUTE PITCH ADAPTER This part replaces 748-04297. Price: $9.93 |
