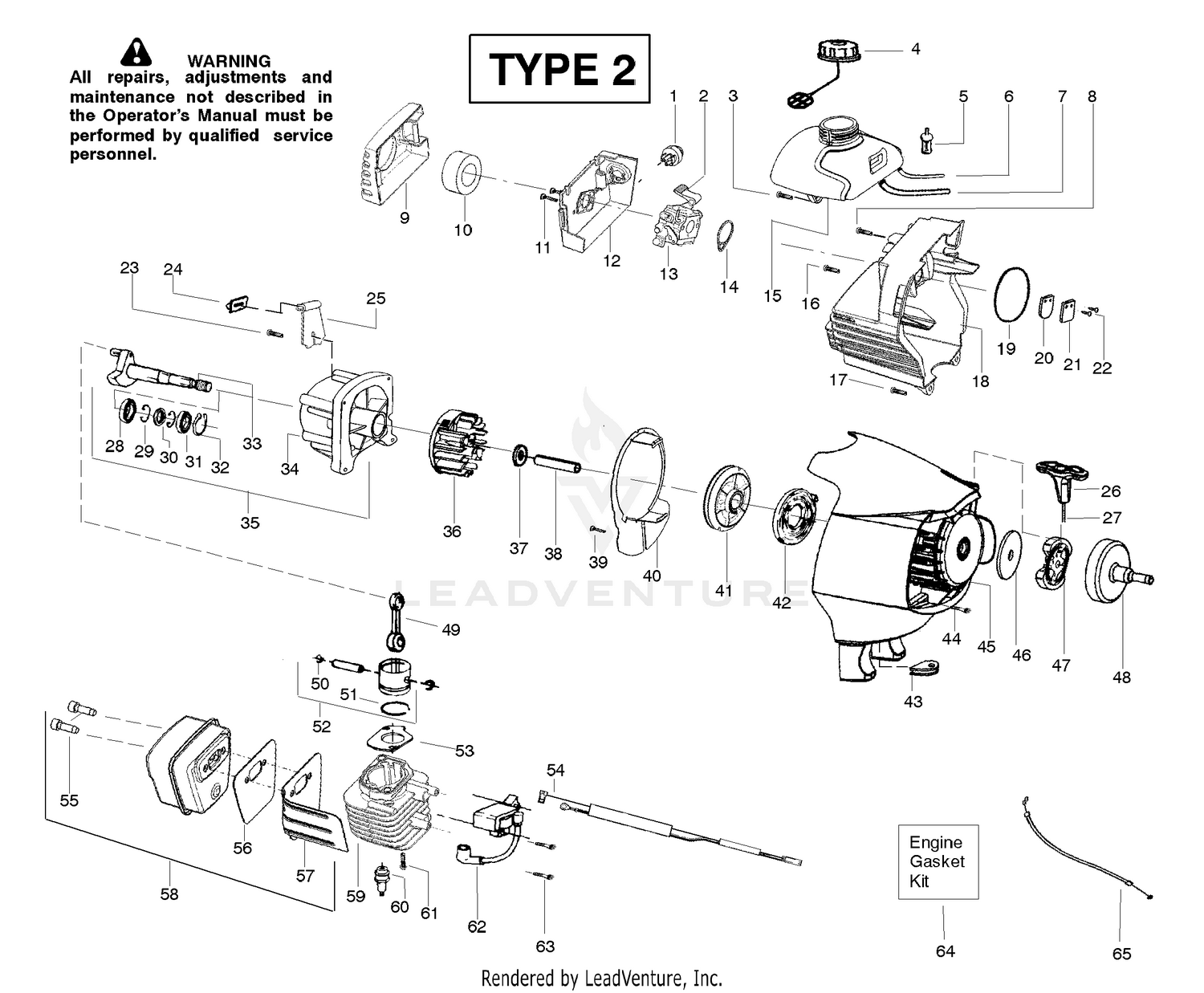

| Ref | Part Number | Description |
|---|
| 1 |
530047721 |
Bulb-Purge Price: $3.99 |
| 2 |
530071717 |
Kit-Choke Lever Price: $7.99 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
530015843 |
Screw-tank Price: $1.99 |
| 4 |
530057973 |
Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 4 |
8-8150 |
DISCONTINUED Price: Call Us |
| 5 |
530095646 |
Assy-Fuel pickup Price: $2.99 |
| 6 |
3219-14 |
NUT-HEX Price: $0.25 |
| 6 |
530069247 |
Kit-Fuel Line This part replaces 530071404. Price: $3.99 |
| 7 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 7 |
530069216 |
Kit-Fuel/Purge line Price: $3.99 |
| 8 |
530015775 |
Screw Price: $1.99 |
| 8 |
8-8200 |
DISCONTINUED Price: $2.00 |
| 9 |
3217-6 |
NUT-HEX Price: $1.19 |
| 9 |
545000501 |
Cover-Air box Price: $3.99 |
| 10 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 10 |
545082301 |
Filter-Air Price: $2.99 |
| 11 |
3-8947 |
DISCONTINUED Price: Call Us |
| 11 |
530015849 |
Screw-Carb. Price: $1.99 |
| 12 |
3220-7 |
NUT-JAM Price: $4.09 |
| 12 |
545000601 |
Box-Air Price: $4.99 |
| 13 |
3-8928 |
DISCONTINUED Price: Call Us |
| 14 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 15 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 15 |
545075305 |
Assy-Fuel Tank This part replaces 545075304. Price: $11.99 |
| 16 |
324-6 |
SCREW-HH Price: $0.81 |
| 16 |
530015771 |
Screw-Crankcase Price: $1.99 |
| 17 |
5-0786 |
KEY Price: $13.87 |
| 17 |
530015952 |
Screw-Shroud Price: $1.99 |
| 18 |
3246-4 |
SCREW-SET Price: $0.75 |
| 18 |
545000701 |
Assy-Rear Shroud Price: $17.99 |
| 19 |
321-2 |
SCREW-HH Price: $2.79 |
| 20 |
530027593 |
Valve-Reed Price: $1.99 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 21 |
530029781 |
Stop-Reed Price: $1.99 |
| 22 |
49-8110 |
HANDLE GRIP This part replaces 235-11. Price: $13.80 |
| 22 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 23 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 23 |
530015875 |
Screw-Retainer Price: $1.99 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
530055492 |
Isolator-Tank Price: $1.99 |
| 25 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 25 |
530054941 |
Ret.-Tank Price: $1.99 |
| 26 |
5-1671 |
DISCONTINUED Price: Call Us |
| 26 |
530054834 |
Handle-Starter Price: $1.99 |
| 27 |
5-1667 |
DISCONTINUED Price: Call Us |
| 27 |
545050409 |
Kit-Rope Price: $4.99 |
| 28 |
3-9351 |
EXT SPRING *R Price: $47.40 |
| 28 |
545081601 |
Bearing-Inner Price: $7.99 |
| 29 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 29 |
530015787 |
Retainer Price: $1.99 |
| 30 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 30 |
530019158 |
Seal Price: $2.99 |
| 31 |
3-8997 |
DISCONTINUED Price: Call Us |
| 31 |
530032102 |
Bearing-Outer Price: $8.99 |
| 32 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 32 |
530015789 |
Ret.-Crankshaft Price: $2.99 |
| 33 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 33 |
530028807 |
Assy-Crankshaft Price: $19.99 |
| 34 |
323-7 |
SCREW-HH Price: $0.65 |
| 35 |
3218-3 |
NUT-JAM Price: $0.25 |
| 36 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 36 |
530055524 |
Assy-Flywheel Price: $22.99 |
| 37 |
5-2793 |
DISCONTINUED Price: Call Us |
| 37 |
530016030 |
Washer Price: $1.99 |
| 38 |
5-1853 |
DISCONTINUED Price: Call Us |
| 38 |
530055620 |
Spacer Price: $4.99 |
| 39 |
321-6 |
SCREW-HH Price: $0.25 |
| 39 |
530015775 |
Screw-Baffle Price: $1.99 |
| 40 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 40 |
545115201 |
Plate-Baffle Price: $2.99 |
| 41 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
545050408 |
Kit-Pulley Price: $14.99 |
| 42 |
5-0701 |
ANCHOR Price: $4.07 |
| 42 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 43 |
3-9026 |
DISCONTINUED Price: Call Us |
| 43 |
530019182 |
Grommet Price: $1.99 |
| 44 |
3-8945 |
DISCONTINUED Price: Call Us |
| 44 |
530016386 |
Screw-F/hsg. Price: $5.99 |
| 45 |
3220-3 |
NUT-HJ Price: $0.28 |
| 45 |
530055248 |
Assy-Fan Housing Price: $17.99 |
| 46 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 46 |
530094189 |
Washer-Clutch Price: $2.99 |
| 47 |
282-1 |
DISCONTINUED Price: Call Us |
| 47 |
530055122 |
Assy-Clutch Price: $8.99 |
| 48 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 48 |
530150247 |
Assy-Drum/Adapter Price: $17.99 |
| 49 |
530010960 |
Assy-Conn. Rod Price: $14.99 |
| 50 |
5-3840 |
DISCONTINUED Price: Call Us |
| 50 |
530015162 |
Ret.-Piston pin Price: $1.99 |
| 51 |
323-9 |
SCREW-HH Price: $1.29 |
| 51 |
530012595 |
Ring-Piston Price: $4.99 |
| 52 |
321-6 |
SCREW-HH Price: $0.25 |
| 53 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 54 |
2212-16 |
DISCONTINUED Price: Call Us |
| 54 |
530058846 |
Assy-Leadwire Price: $4.99 |
| 55 |
3-9263 |
DISCONTINUED Price: Call Us |
| 55 |
530016387 |
Bolt-Muffler 1/4"-20 Price: $1.99 |
| 56 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 57 |
3217-5 |
NUT-HEX Price: $0.25 |
| 57 |
545033201 |
Shield Price: $3.99 |
| 58 |
3217-7 |
NUT-HEX Price: $0.28 |
| 59 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 59 |
530012589 |
Cylinder Price: $17.99 |
| 60 |
323-7 |
SCREW-HH Price: $0.65 |
| 61 |
2812-4 |
REDUCER-PIPE Price: $9.67 |
| 61 |
530001624 |
Bolt-Cyl. 1/4"-20 Price: $1.99 |
| 62 |
324-4 |
SCREW-HH Price: $0.95 |
| 62 |
545081826 |
Kit - Ignition Module This part replaces 530039234. Price: $32.99 |
| 63 |
5-2390 |
DISCONTINUED Price: Call Us |
| 63 |
530016357 |
Screw-Module Price: $1.99 |
| 64 |
6-1626 |
Pulley, Engine Price: Call Us |
| 65 |
5-1628 |
DISCONTINUED Price: Call Us |
| 66 |
3-9066 |
DISCONTINUED Price: Call Us |
| 67 |
3-9001 |
DISCONTINUED Price: Call Us |
| 68 |
5-3270 |
DISCONTINUED Price: Call Us |
| 69 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 70 |
3290-153 |
DISCONTINUED Price: Call Us |
| 71 |
289-153 |
Nut, Conduit Price: Call Us |
| 72 |
288-3 |
DISCONTINUED Price: Call Us |
| 73 |
5-2665 |
DISCONTINUED Price: Call Us |
| 74 |
3-8946 |
DISCONTINUED Price: Call Us |
| 75 |
221-459 |
Engine (Kohler Model K-321S Type No. 60231D) Price: Call Us |
| 77 |
5-2933 |
DISCONTINUED Price: Call Us |
| 78 |
5-4541 |
DISCONTINUED Price: Call Us |
