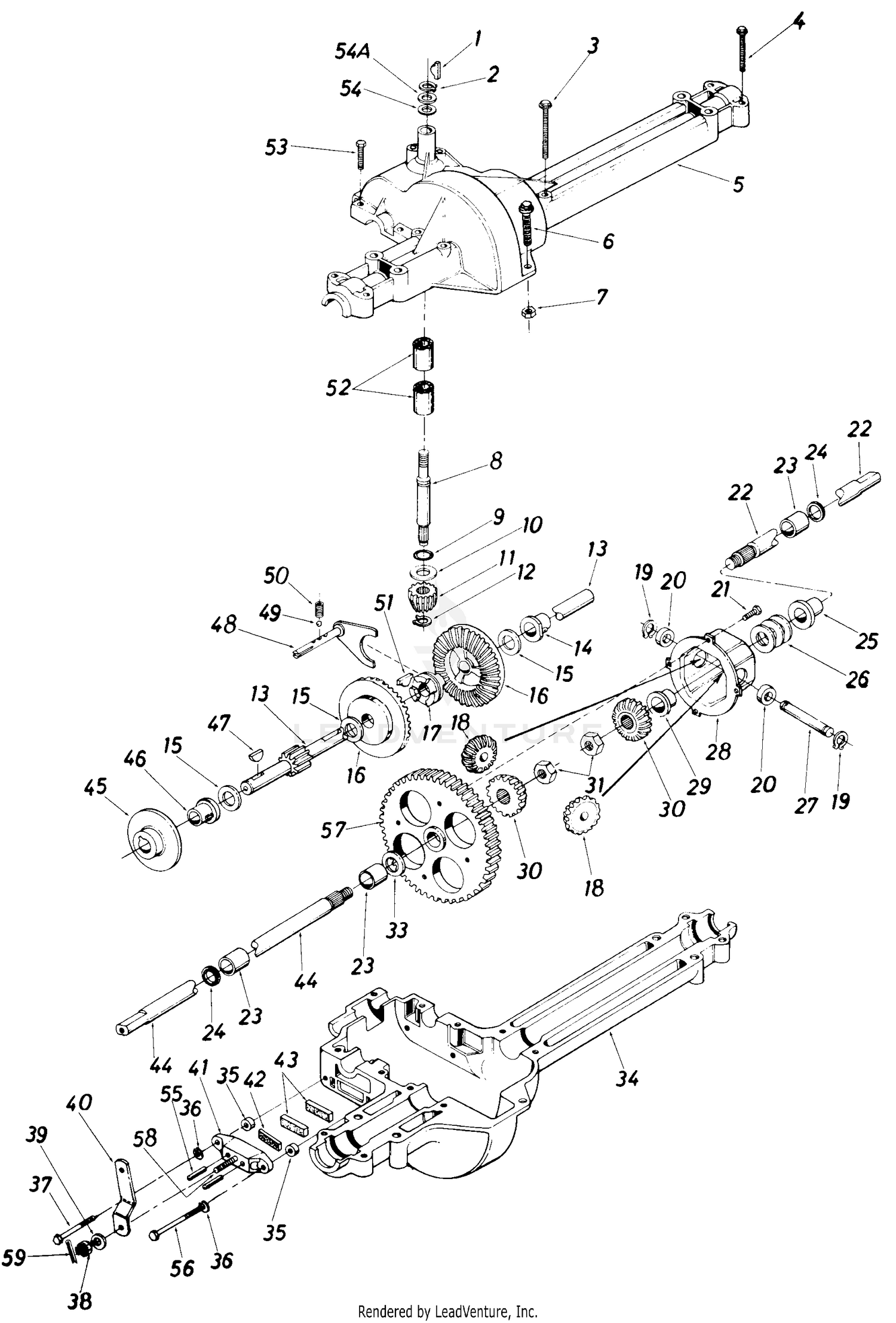

| Ref | Part Number | Description |
|---|
| 1 |
914-0129 |
KEY-HI-PRO #4-3/32X5/8 DIA Not Available This part replaces 714-0129. Price: |
| 2 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 3 |
710-1026 |
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75 Lg. This part replaces 710-0854. Price: $5.94 |
| 4 |
710-0809 |
Hex Bolt 1/4-20 x 1.25" Lg. Price: $6.37 |
| 5 |
717-0764 |
UPPER HOUSING Not Available Price: |
| 6 |
710-0889 |
HEX SCREW FL 1/4-20X.88 Not Available Price: |
| 7 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 8 |
717-0634A |
Input Shaft This part replaces 717-0634. Price: $105.19 |
| 9 |
721-0178 |
SQUARE SEAL 5/8ID Not Available Price: |
| 10 |
936-0335 |
THRUST WASHER This part replaces 736-0335. Price: $5.94 |
| 11 |
917-0633 |
INPUT PINION 14T Not Available This part replaces 717-0633. Price: |
| 12 |
716-0108 |
Retaining Ring 7/16" Ext. Price: $4.53 |
| 13 |
717-0768 |
DRIVE SHAFT (LH) Not Available Price: |
| 14 |
941-0336 |
Flange Brg. 5/8" I.D. x 3/4" Lg. This part replaces 741-0336. Price: $10.28 |
| 15 |
N/A |
Fl-Wash. |
| 16 |
717-0757 |
BEVEL GEAR 42 T Not Available Price: |
| 17 |
917-0667 |
CLUTCH COLLAR Not Available This part replaces 717-0667. Price: |
| 18 |
717-1020 |
MITER GEAR Not Available This part replaces 717-0674. Price: |
| 19 |
753-0527 |
KIT-DIFF CROSS SHA Not Available This part replaces 716-0142. Price: |
| 20 |
753-0527 |
KIT-DIFF CROSS SHA Not Available This part replaces 717-0690. Price: |
| 21 |
710-0862A |
Pan Head Scr. 1/4-20 x .50" Lg. w/Patch This part replaces 710-0862. Price: $4.05 |
| 22 |
917-0766 |
AXLE (RH) Not Available This part replaces 753-0394. Price: |
| 23 |
741-05060 |
SLEEVE BEARING .75X1.00X1.00 This part replaces 741-0340. Price: $7.69 |
| 24 |
721-0179 |
Oil Seal 3/4" I.D. Price: $7.48 |
| 25 |
941-0339 |
Flange Bearing 3/4" I.D. x 15/16" Lg. This part replaces 741-0339. Price: $11.83 |
| 26 |
736-0188 |
Fl-Wash. .760" I.D. x 1.49"O.D. Price: $3.75 |
| 27 |
753-0527 |
KIT-DIFF CROSS SHA Not Available This part replaces 717-0673. Price: |
| 28 |
753-0546 |
DIFFERENTIAL KIT Not Available This part replaces 717-0777. Price: |
| 29 |
N/A |
Part of Ref. 28 |
| 30 |
717-0687 |
MITER GEAR Not Available Price: |
| 31 |
716-0144 |
Retaining Ring Price: Call Us |
| 33 |
736-0188 |
Fl-Wash. .760" I.D. x 1.49" O.D. Price: $3.75 |
| 34 |
717-0761 |
TRANS HOUS Not Available Price: |
| 35 |
750-0555 |
SPACER Not Available Price: |
| 36 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 37 |
910-0886 |
HEX SCREW 1/4-20X1 Not Available This part replaces 710-0886. Price: |
| 38 |
912-0273 |
NUT This part replaces 712-0335. Price: $4.02 |
| 39 |
736-0159 |
Fl-Wash. .344" I.D. x .875" O.D. Price: $3.71 |
| 40 |
717-0772B |
ACTUATING ARM (LH) This part replaces 717-0772. Price: $11.08 |
| 41 |
717-0679 |
YOKE Not Available Price: |
| 42 |
917-0682 |
PUCK PLATE This part replaces 717-0682. Price: $8.68 |
| 43 |
917-0678 |
BRAKE PUCK This part replaces 717-0678. Price: $6.87 |
| 44 |
917-0765 |
AXLE (LH) Not Available This part replaces 753-0395. Price: |
| 45 |
717-0677 |
BRAKE DISC Not Available Price: |
| 46 |
941-0337 |
Flange Bearing 5/8" I.D. x 15/16" Lg. This part replaces 741-0337. Price: $9.58 |
| 47 |
914-0161 |
KEY 3/16 x 5/8 H This part replaces 714-0161. Price: $3.82 |
| 48 |
917-0754 |
SHIFT FORK ASSEMBLY Not Available This part replaces 717-0754. Price: |
| 49 |
741-0862 |
DETENT BALL .250 Price: $3.90 |
| 50 |
932-05125 |
DETENT SHAFT SPRING This part replaces 732-0863. Price: $3.66 |
| 51 |
914-0169 |
KEY-HI PRO Not Available This part replaces 714-0169. Price: |
| 52 |
941-0335 |
NEEDLE BEARING This part replaces 741-0335. Price: $16.86 |
| 53 |
710-0788 |
Screw, Hex This part replaces 710-0855. Price: $6.20 |
| 54 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 54A |
736-0337 |
Fl-Wash. 5/8" I.D. x .040 Price: $3.66 |
| 55 |
741-0343 |
Actuating Pin 5/16" Dia. Price: $8.93 |
| 56 |
910-0886 |
HEX SCREW 1/4-20X1 Not Available This part replaces 710-0886. Price: |
| 57 |
717-0767 |
DIFFERENTIAL GEAR Not Available Price: |
| 58 |
717-0796 |
BOLT Not Available This part replaces 717-0681. Price: |
| 59 |
914-0507 |
COTTER PIN-3/32 This part replaces 1544-013. Price: $3.93 |
