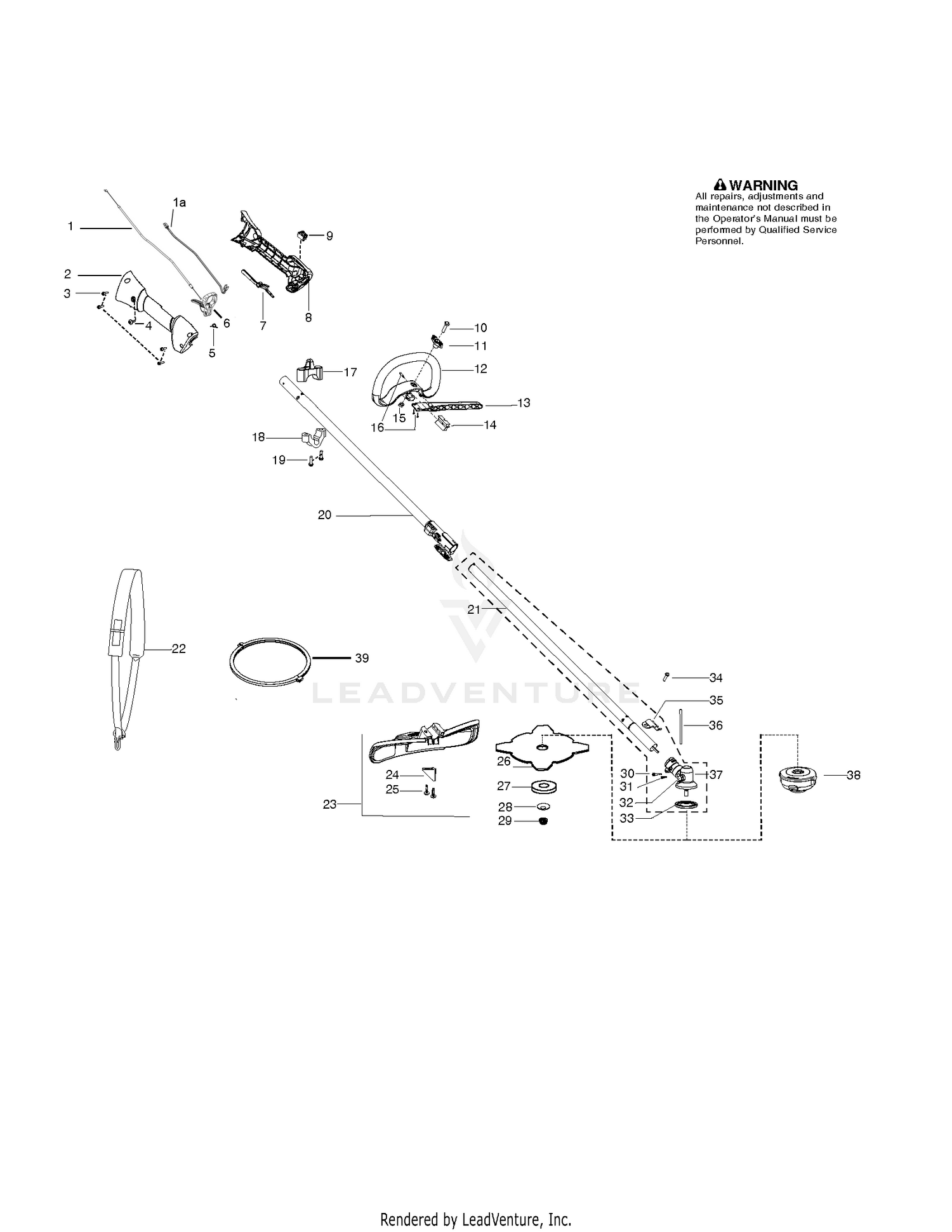

| Ref | Part Number | Description |
|---|
| 1a |
584994002 |
CABLE SHORT CIRCUIT HND This part replaces 584994001. Price: $8.99 |
| 2 |
545223001 |
HSG THROTTLE RIGHT HVA Price: $9.99 |
| 3 |
574444001 |
SCREW Price: $1.99 |
| 4 |
584294001 |
SCREW Price: $2.99 |
| 5 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 6 |
574355301 |
TRIGGER THROTTLE HVA ORANGE Price: $4.99 |
| 7 |
574355401 |
THROTTLE LOCKOUT HVA ORANGE Price: $4.99 |
| 8 |
545223201 |
HSG THROTTLE LEFT HVA Price: $5.99 |
| 9 |
545049311 |
Switches This part replaces 545049309. Price: $5.99 |
| 10 |
725238051 |
SCREW M6X50 Price: $2.99 |
| 12 |
503871907 |
HANDLE LOOP Price: $12.99 |
| 13 |
503997804 |
HANDLE Price: $14.99 |
| 14 |
503940301 |
SPACER PLASTIC Price: $9.99 |
| 15 |
502197101 |
NUT Price: $0.25 |
| 16 |
574181501 |
SCREW IHSCFTO Price: $2.99 |
| 17 |
545113301 |
CLAMP HARNESS UPPER Price: $4.99 |
| 18 |
545056601 |
CLAMP HARNESS LOWER Price: $3.99 |
| 19 |
530015940 |
SCREW Price: $2.99 |
| 20 |
545006074 |
DRIVESHAFT This part replaces 580446626. Price: $79.99 |
| 21 |
580446628 |
KIT LOWER SPLITBOOM Price: $84.99 |
| 22 |
537216202 |
Harness - Diagonal with sign Price: $8.99 |
| 23 |
580446606 |
KIT STRAIGHT SHIELD Price: $22.99 |
| 24 |
530052286 |
Limiter - Line Price: $0.68 |
| 25 |
584410001 |
SCREW 10-14X3/4 PLASTITE Price: $2.99 |
| 26 |
596278001 |
HUS 10" GRASSBLADE 255-4T 1" This part replaces 504001303. Price: $22.99 |
| 27 |
503890101 |
SUPPORTING CUP Price: $14.99 |
| 28 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 29 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 30 |
584410501 |
SCREW 8-32 X 16.51 Price: $4.99 |
| 31 |
584410601 |
SCREW 8-32 X 16.51 TT SC TRX Price: $2.99 |
| 32 |
575724601 |
PLUG GREASE 9MM Price: $2.99 |
| 33 |
537234901 |
DRIVE DISC Price: $19.99 |
| 34 |
584410101 |
SCREW 1/4-20 Price: $2.99 |
| 35 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 36 |
502285901 |
LOCKING PIN Price: $4.99 |
| 37 |
530096295 |
ASSY GEARBOX Price: $34.99 |
| 38 |
537338310 |
TRIMMER HEAD T25 This part replaces 537338306. Price: $27.99 |
| 39 |
537312901 |
BLADE GUARD TRANSPORT This part replaces 587344201. Price: $7.99 |
| 530031159 |
HEX |
WRENCH 5/32 Price: $2.99 530031159 |
| 580446602 |
NEEDS |
DESCRIPTION Price: Call Us 580446602 |
