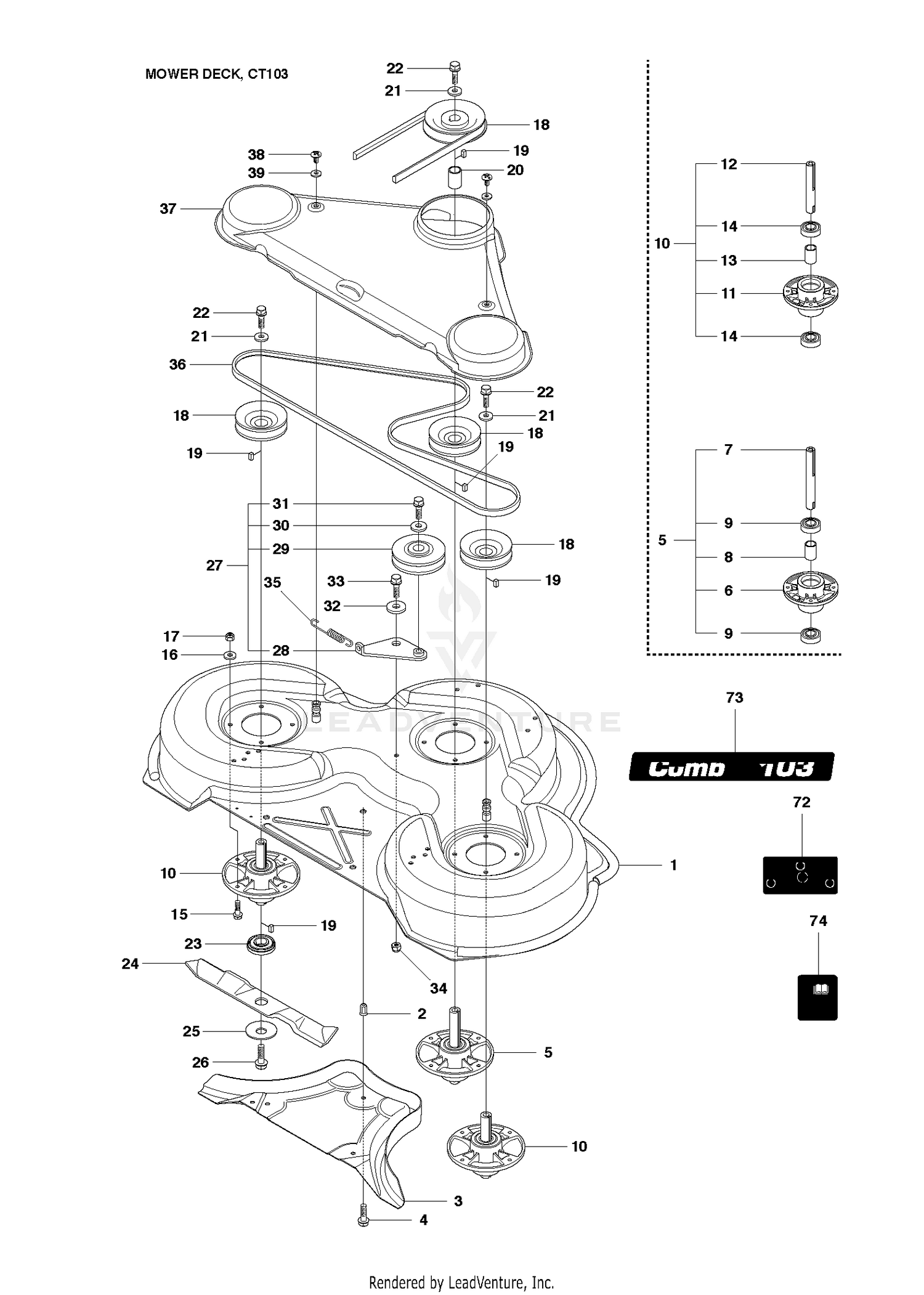

103CM CUTTING DECK 3
Parts (73)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504569801 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 544449201 | PLUG Price: $64.99 |
| 4 | 506570104 | BOLT Price: $4.99 |
| 5 | 535503501 | NEEDS DESCRIPTION Price: Call Us |
| 6 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 7 | 535428701 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 535428801 | SPACER Price: $7.99 |
| 9 | 738220519 | BALL BEARING Price: $6.99 |
| 10 | 535503502 | NEEDS DESCRIPTION Price: Call Us |
| 11 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 12 | 535428702 | AXLE Price: $49.99 |
| 13 | 535428801 | SPACER Price: $7.99 |
| 14 | 738220519 | BALL BEARING Price: $6.99 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 535429001 | NEEDS DESCRIPTION Price: Call Us |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 535428801 | SPACER Price: $7.99 |
| 21 | 535429201 | Price: Call Us |
| 22 | 725254251 | Screw Price: $4.99 |
| 23 | 535504201 | Price: Call Us |
| 24 | 504190410 | NEEDS DESCRIPTION Price: Call Us |
| 25 | 506792302 | WASHER Price: $12.99 |
| 26 | 725254251 | Screw Price: $4.99 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 589534401 | BELT Price: $39.99 |
| 37 | 544096103 | BELT COVER C103 HUSQ - GREY This part replaces 544096101. Price: $74.99 |
| 38 | 506982601 | SCREW Price: $5.99 |
| 39 | 506559701 | WASHER Price: $4.99 |
| 40 | 502642102 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 725245171 | SCREW Price: $2.08 |
| 42 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 43 | 502641802 | Price: Call Us |
| 44 | 502641902 | NEEDS DESCRIPTION Price: Call Us |
| 45 | 506869601 | BEARING Price: $8.99 |
| 46 | 506813801 | PLATE Price: $5.99 |
| 47 | 725246151 | BOLT Price: $4.99 |
| 48 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 49 | 504812701 | NEEDS DESCRIPTION Price: Call Us |
| 50 | 502642301 | PARALLEL ROD Price: $12.99 |
| 51 | 506839803 | NEEDS DESCRIPTION Price: Call Us |
| 52 | 721618301 | Split Pin Price: $1.99 |
| 53 | 502642002 | NEEDS DESCRIPTION Price: Call Us |
| 54 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 55 | 535505901 | PIVOT WHEELS Price: $109.99 |
| 56 | 535504601 | CLEVIS Price: $59.99 |
| 57 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 58 | 506810802 | PIPE Price: $7.99 |
| 59 | 506874102 | SPACER Price: $5.99 |
| 60 | 725251951 | BOLT Price: $9.99 |
| 61 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 62 | 506504805 | WASHER Price: $3.99 |
| 63 | 506570104 | BOLT Price: $4.99 |
| 64 | 734116441 | SPACER Price: $3.99 |
| 65 | 544017001 | HUB CAP PIVOT WHEEL Price: $2.99 |
| 66 | 506597401 | BOLT Price: $5.99 |
| 67 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 68 | 502639501 | NEEDS DESCRIPTION Price: Call Us |
| 69 | 502642401 | NEEDS DESCRIPTION Price: Call Us |
| 70 | 725245171 | SCREW Price: $2.08 |
| 71 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 74 | 506929001 | DECAL Price: $3.99 |
