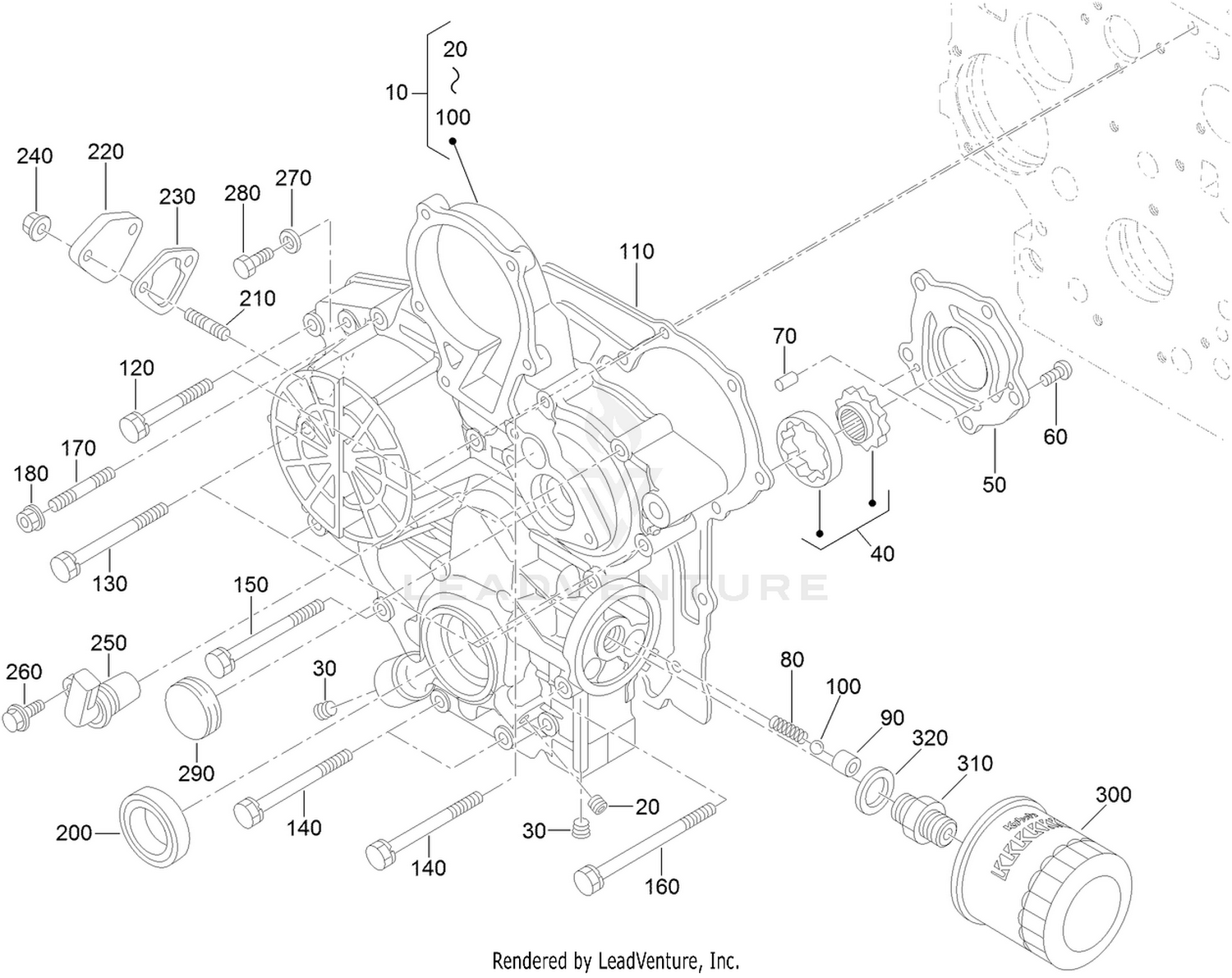

| Ref | Part Number | Description |
|---|
| 10 |
127-0453 |
GEAR CASE ASM Price: $677.86 |
| 20 |
98-7487 |
PLUG This part replaces 127-0424. Price: $3.18 |
| 30 |
127-0425 |
PLUG Price: $4.34 |
| 40 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 50 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 60 |
107-9071 |
SCREW Price: $0.36 |
| 70 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 80 |
98-9544 |
SPRING Price: $0.94 |
| 90 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 100 |
98-9380 |
BALL Price: $0.84 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
100-2203 |
NUT-FLANGE Price: $0.87 |
| 200 |
119-8038 |
SEAL-OIL Price: $40.16 |
| 210 |
105-3710 |
STUD Price: $1.16 |
| 220 |
99-3514 |
COVER Price: $11.33 |
| 230 |
117-7562 |
GASKET-PUMP, FUEL Price: $2.98 |
| 240 |
100-2203 |
NUT-FLANGE Price: $0.87 |
| 250 |
127-0504 |
SENSOR-REVOLUTION Price: $258.27 |
| 260 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 270 |
98-7654 |
GASKET Price: $8.84 |
| 280 |
127-0400 |
BOLT-HEX Price: $0.83 |
| 290 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 300 |
108-3841 |
FILTER-OIL This part replaces 127-0511. Price: $10.81 |
| 310 |
98-9388 |
JOINT-PIPE Price: $31.66 |
