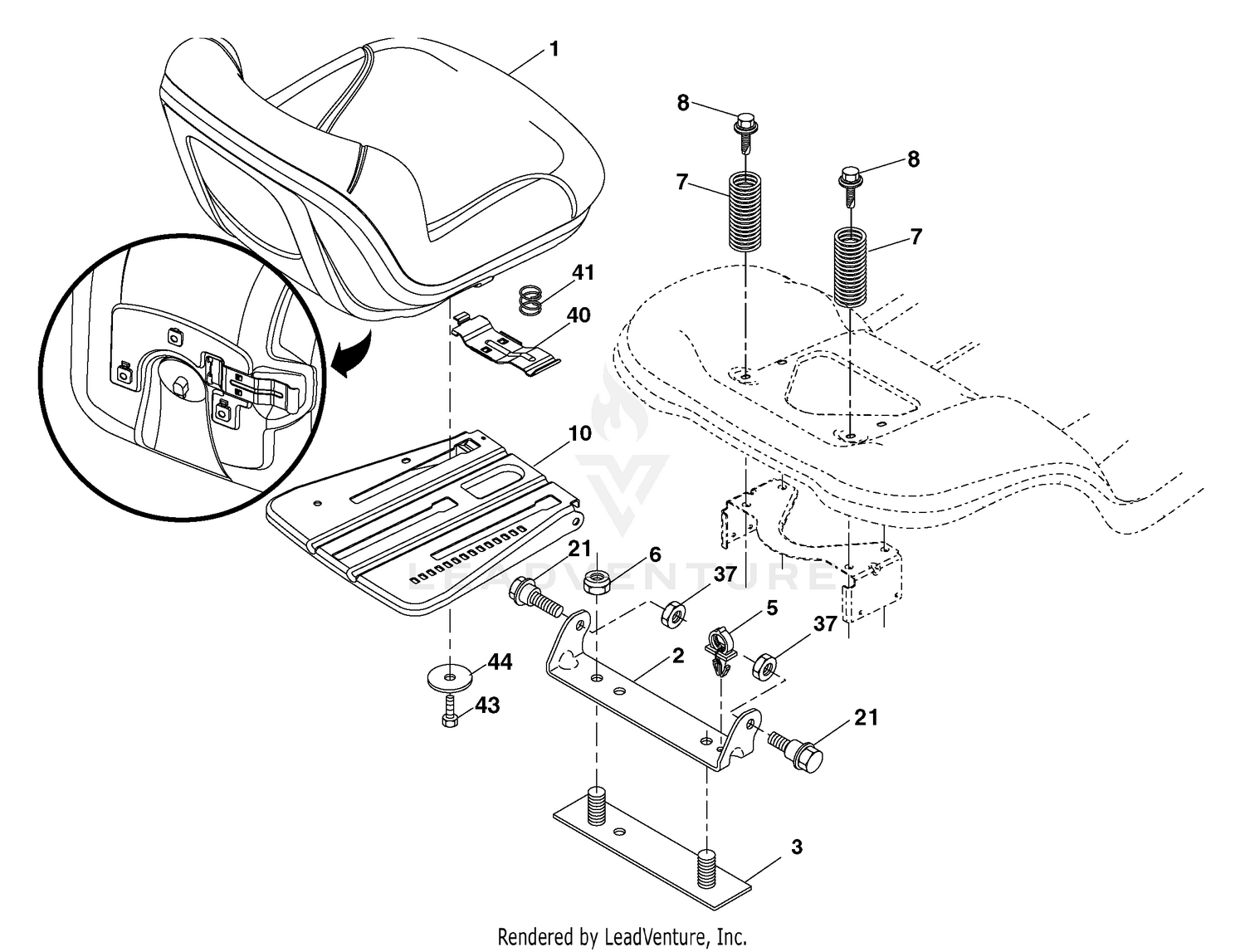

| Ref | Part Number | Description |
|---|
| 1 |
197530 |
Seat Price: Call Us |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 2 |
33114-060 |
SCREW-HH Price: $0.88 |
| 3 |
140675 |
Strap, Asm Fender Price: Call Us |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 4 |
93-5192-03 |
DISCONTINUED Price: Call Us |
| 5 |
145006 |
Clip, Push In, Hinged Price: Call Us |
| 5 |
93-5196 |
SPACER-CRANK Price: $105.91 |
| 6 |
57-6360 |
SCREW-CLUTCH Price: $4.29 |
| 6 |
73800600 |
Nut, Lock W/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring, Seat Cprsn Price: Call Us |
| 7 |
93-5062-03 |
MOUNT-ENGINE, LH ASM Price: $66.91 |
| 8 |
171877 |
Bolt 5/16-18 uncx 3/4 w/Sems Price: Call Us |
| 8 |
93-5265 |
MOUNT-ENGINE Price: $100.22 |
| 9 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 10 |
196977 |
Pan, Seat Price: Call Us |
| 10 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 11 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 12 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 13 |
33125-040 |
SCREW-CARR Price: $6.74 |
| 14 |
93-5049 |
DISCONTINUED Price: Call Us |
| 15 |
93-5504-03 |
LEVER Price: $11.57 |
| 16 |
33005-00 |
NUT-HF Price: $0.68 |
| 17 |
71-4690 |
SCREW-HH Price: $3.65 |
| 18 |
33104-050 |
SCREW-HHF Price: $1.70 |
| 19 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 20 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 21 |
93-5055-03 |
PLATE-ENGINE, FRONT ASM Price: $208.72 |
| 22 |
93-5059-03 |
MOUNT-ENGINE, RH ASM Price: $71.67 |
| 23 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 24 |
93-5389 |
DISCONTINUED Price: Call Us |
| 25 |
93-5197 |
SPACER-IDLER Price: $10.86 |
| 26 |
33114-020 |
SCREW-HH Price: $0.28 |
| 27 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 28 |
2412-104 |
CLAMP-R Price: $2.37 |
| 29 |
33004-00 |
NUT-HF Price: $0.34 |
| 30 |
2412-147 |
CLAMP-R Price: $2.51 |
| 31 |
86-2990 |
MOUNT-CABLE, THROTTLE Price: $22.81 |
| 32 |
66-5310-03 |
V PULLEY-IDLER Price: $75.13 |
| 33 |
33114-016 |
SCREW-HH Price: $0.27 |
| 34 |
93-5114 |
DISCONTINUED Price: Call Us |
| 35 |
33105-020 |
SCREW-HHF Price: $0.54 |
| 36 |
95-5618 |
BELT Price: $36.40 |
| 37 |
73800500 |
Nut, Lock 5/16-18 unc Price: Call Us |
| 37 |
96-1267-03 |
PULLEY-FAN Price: $31.57 |
| 38 |
93-5545 |
HUB-FAN Price: $140.84 |
| 39 |
93-5187 |
DISCONTINUED Price: Call Us |
| 40 |
197661 |
Handle Slide Seat Price: Call Us |
| 40 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 41 |
198200 |
Spring Latch Seat Price: Call Us |
| 41 |
32120-10 |
RING-SNAP Price: $1.29 |
| 42 |
98-3578 |
BEARING Price: $85.75 |
| 43 |
33105-035 |
SCREW-HHF Price: $2.44 |
| 43 |
74760612 |
Bolt Fin Hex 3/8-16 unc x 3/4 Price: Call Us |
| 44 |
33104-035 |
SCREW-HHF Price: $0.88 |
| 45 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 46 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 47 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 48 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 49 |
3255-10 |
WASHER-LOCK / EXT Price: $0.25 |
| 50 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 51 |
48-7880 |
NUT-HEX Price: $0.25 |
| 52 |
48-7870 |
DISCONTINUED Price: Call Us |
| 53 |
93-5450 |
NUT-CLINCH Price: $4.13 |
| 54 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 55 |
3234-25 |
SCREW-HHF Price: $7.69 |
