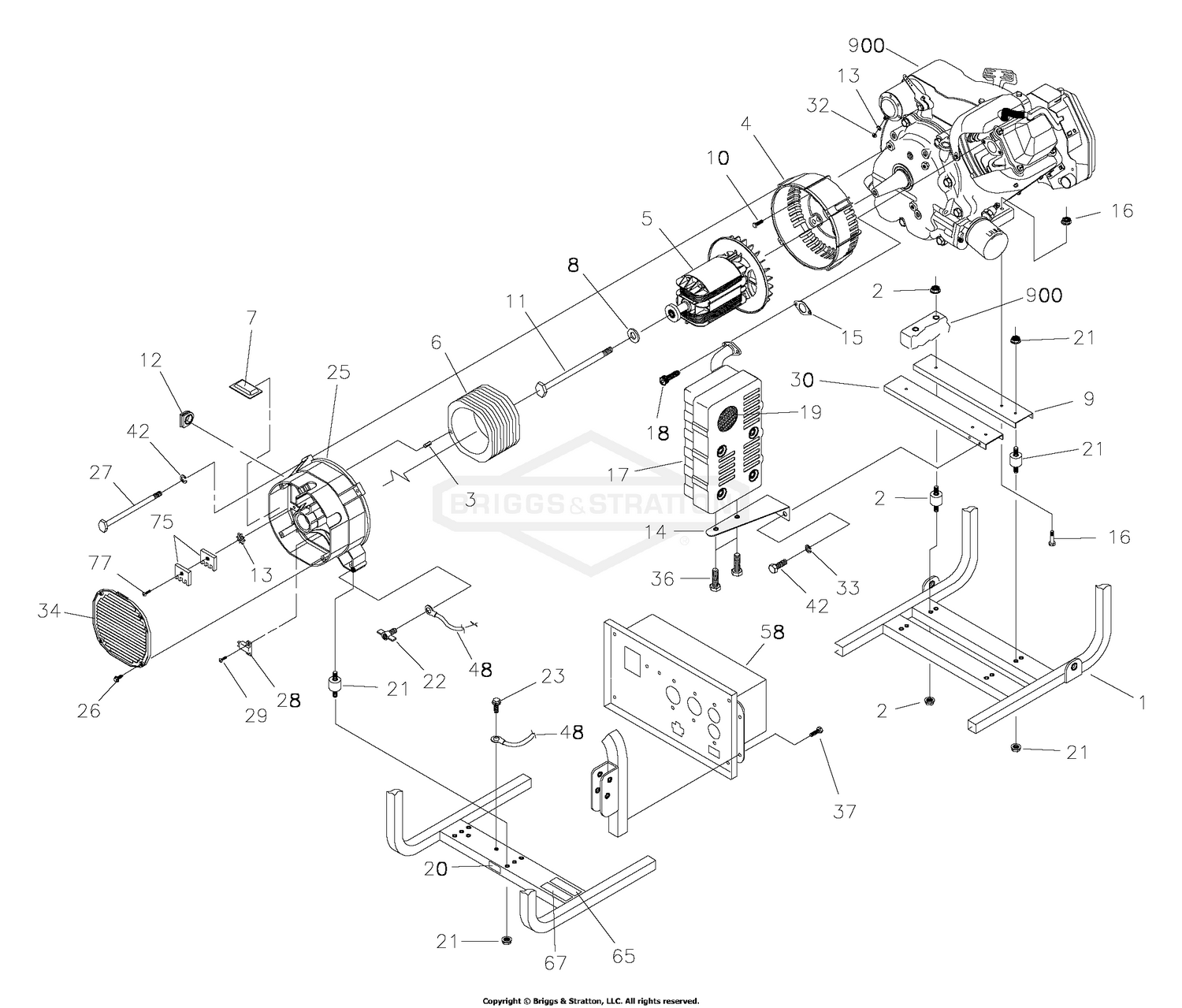

| Ref | Part Number | Description |
|---|
| 1 |
M197022GS |
CRADLE Price: $299.99 |
| 2 |
194219GS |
KIT, Vibration Mount Price: $10.79 |
| 3 |
81917GS |
PIN, Roll 4mm x 10 Price: $2.79 |
| 4 |
92247GS |
HOUSING, Engine Adapter Price: $86.95 |
| 5 |
B1342GGS |
ASSY, Rotor Price: $419.99 |
| 6 |
B1897AGS |
ASSY, Stator Price: $827.96 |
| 7 |
84132GS |
ASSY, Power Regulator Price: $31.80 |
| 8 |
96796GS |
WASHER Price: $2.79 |
| 9 |
M92531GS |
SUPPORT, Engine Price: $9.95 |
| 11 |
47481GS |
HHCS, 5/16-24 x 10-5/8 Lg. Price: $9.60 |
| 12 |
67022GS |
GROMMET, Rubber Price: $2.55 |
| 15 |
90239GS |
GASKET, Muffler Price: $3.73 |
| 16 |
195078GS |
KIT, Engine Mounting Hardware Price: $9.19 |
| 17 |
A7433GS |
MUFFLER Price: $94.60 |
| 19 |
83083GS |
SCREEN, Spark Arrestor Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 21 |
194218GS |
KIT, Vibration Mount Price: $10.79 |
| 22 |
86494GS |
SCREW, Wing M6 - 1.0 x 16 Price: $2.51 |
| 23 |
313085GS |
SCREW This part replaces 86292GS. Price: $3.35 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing Price: $120.36 |
| 26 |
74908GS |
TAPTITE, M5-0.8 x 10 Lg. Price: $2.69 |
| 27 |
66449LGS |
BOLT Price: $28.08 |
| 28 |
66386GS |
ASSY, Brush Holder Price: $21.52 |
| 29 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 30 |
M92731GS |
SUPPORT, Engine & Muffler Price: $18.20 |
| 34 |
B4871GS |
COVER, Bearing Carrier Price: $4.15 |
| 37 |
B2153GS |
SCREW, 12-14 x 7/8, Self Driller Price: $3.95 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 65 |
195940GS |
DECAL, French Neutral Ground Price: $2.70 |
| 67 |
195459GS |
DECAL, English Neutral Ground Price: $3.45 |
| 75 |
65795GS |
RECTIFIER, Battery Charge Price: $10.80 |
| 77 |
66849CGS |
TAPTITE, M5-0.8 x 30 Lg. Price: $3.79 |
