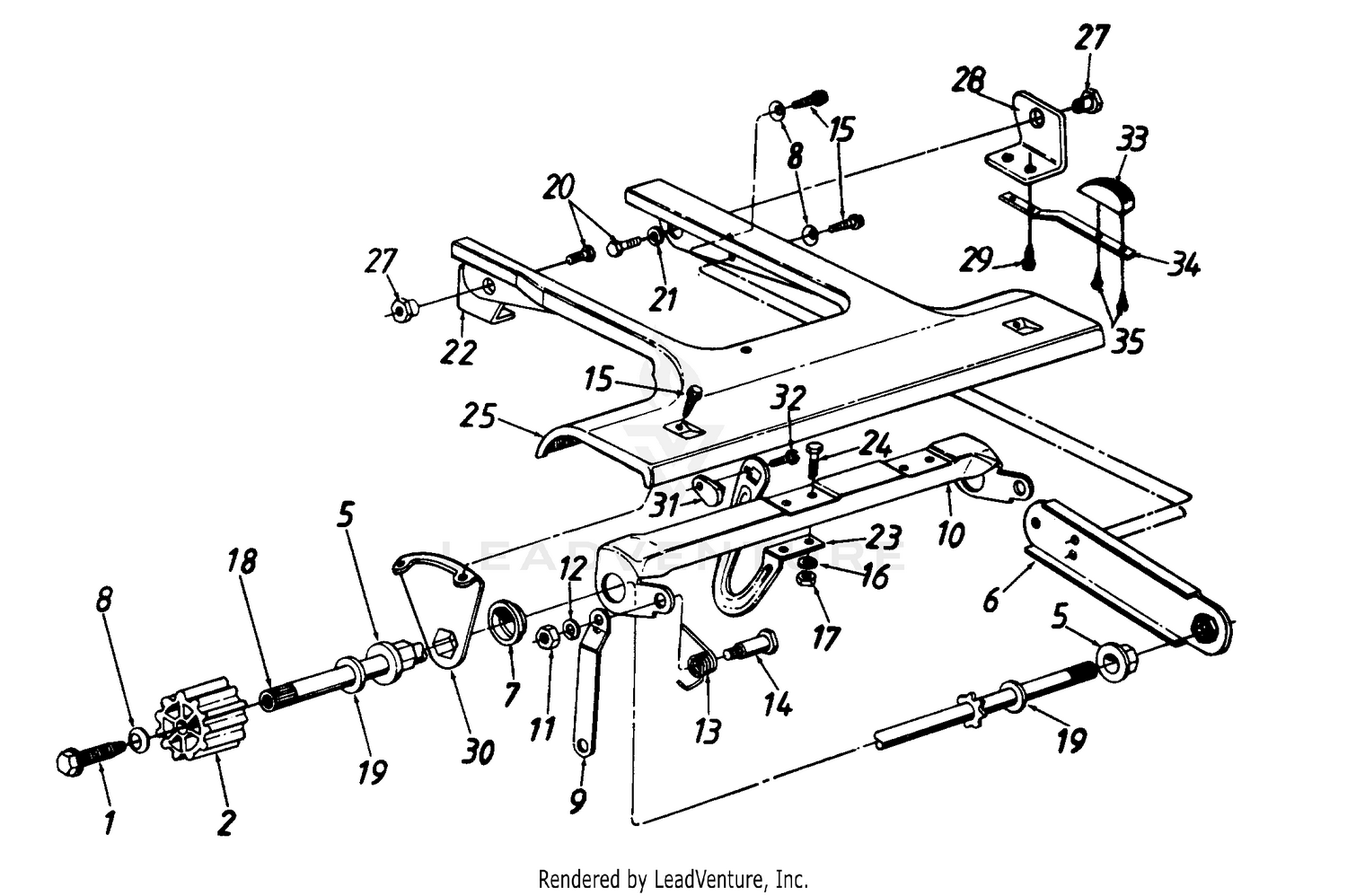

| Ref | Part Number | Description |
|---|
| 1 |
710-1115 |
SCREW Not Available Price: |
| 2 |
931-0908 |
DRIVE PINION This part replaces 731-0908. Price: $15.30 |
| 5 |
741-0503 |
Hex Flange Brg. .504" I.D. Price: $2.93 |
| 6 |
17018 |
SUPPORT-BEARING Not Available Price: |
| 7 |
741-0504 |
FLANGE BEARING Not Available Price: |
| 8 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 9 |
16532B |
LINK-5.3 LG Not Available Price: |
| 13 |
732-0569A |
TORSION SPRING (RH) Not Available Price: |
| 14 |
738-0754 |
Shoulder Bolt .437" Dia. Price: $3.76 |
| 15 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 19 |
736-0160 |
Fl-Wash. .531" I.D. x .93" O.D. Price: $3.90 |
| 20 |
710-0168 |
Hex Bolt 3/8-16 x .5" Lg. Price: $3.38 |
| 22 |
17616 |
PIVOT BRACKET (RH) Not Available Price: |
| 23 |
17185 |
ARM-ENGAGEMENT Not Available Price: |
| 24 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 25 |
17725 |
FRONT PINION PIVOT COVER Not Available Price: |
| 27 |
938-0529 |
Shoulder Nut.825 x .165 Lg. This part replaces 738-0529. Price: $9.85 |
| 28 |
17617 |
PIVOT BRACKET (LH) Not Available Price: |
| 29 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 30 |
17017 |
BRACKET-AXLE BEARI Not Available Price: |
| 31 |
746-0606 |
HOLD DOWN-BARREL (RH) Not Available Price: |
| 32 |
710-0919 |
Hex B-Tap Scr. #10 x .44" Lg. Price: $3.95 |
| 33 |
731-1136 |
CHAIN TENSIONER Not Available Price: |
| 34 |
732-0635 |
SPRING-CANTILEVER Not Available Price: |
