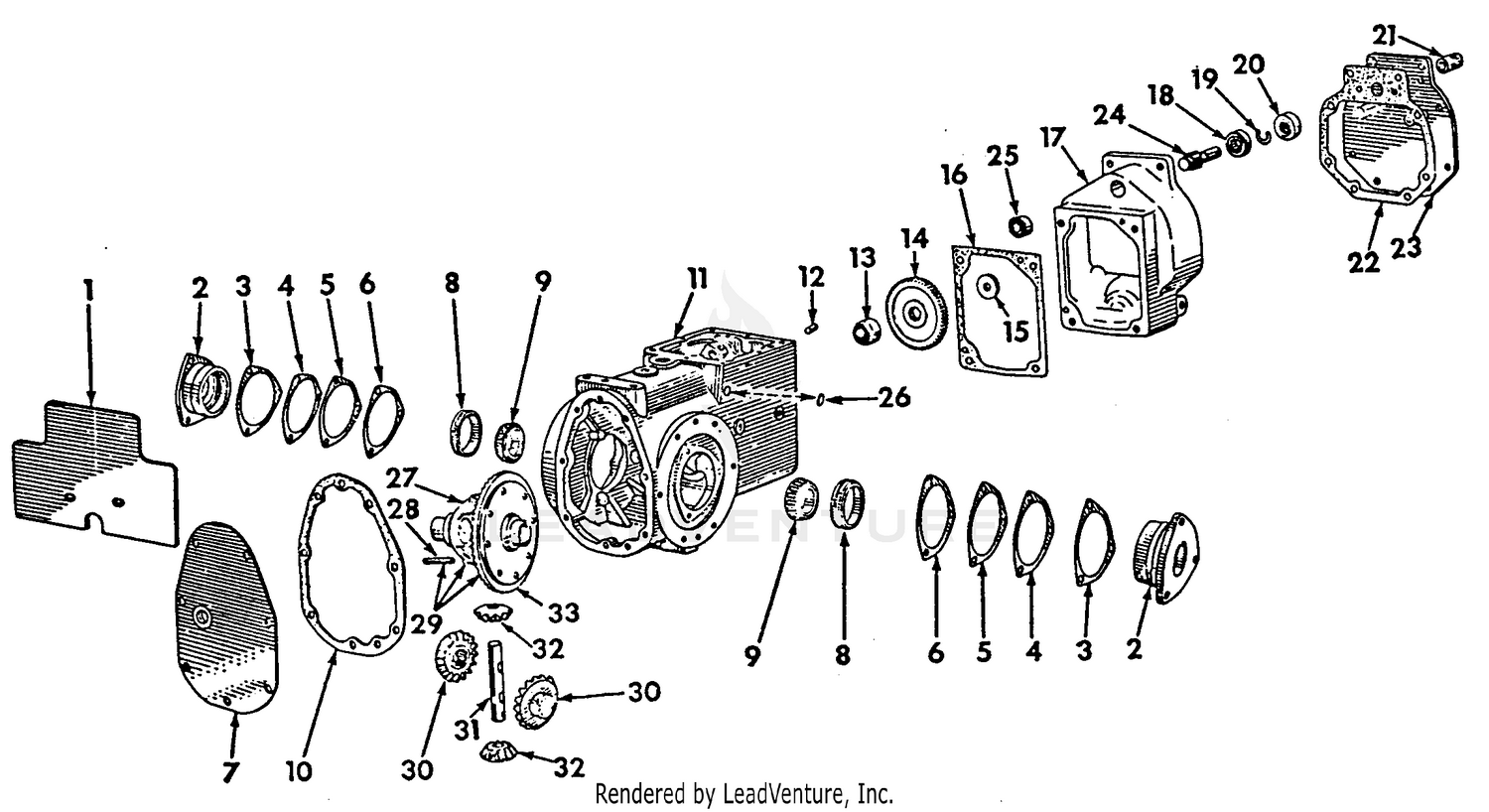

| Ref | Part Number | Description |
|---|
| 1 |
None |
Not used in this application |
| 2 |
IH-376158-R91 |
Cage w/Cup IH-ST974, Differential Brg Price: Call Us |
| 3 |
717-3097 |
SHIM, BEARING RETAINER, .004 Not Available Price: |
| 4 |
717-3098 |
SHIM, BEARING RETAINER, .007 Not Available Price: |
| 5 |
717-3099 |
Shim, Differential Brg Retainer, .0149 Price: $32.65 |
| 6 |
717-3100 |
SHIM .028 Not Available Price: |
| 7 |
IH-106394-C1 |
Plate Assy, Transmission Case Rear Cover Price: Call Us |
| 8 |
IH-ST974 |
BEARING Not Available Price: |
| 9 |
741-0369 |
CONE BEARING ROLLER Not Available Price: |
| 10 |
IH-350837-R3 |
GASKET This part replaces IH-350837-R2. Price: $25.86 |
| 11 |
IH-384699-R91 |
Case Assy, Transmission Price: Call Us |
| 12 |
IH-350799-R1 |
PIN Not Available Price: |
| 13 |
IH-384713-R1 |
Spacer, Driven Reduction Price: Call Us |
| 14 |
717-3074 |
GEAR-REDUCTION-84T Not Available Price: |
| 15 |
None |
Washer, 15/32 X 1-1/4 X 3/16 |
| 16 |
IH-376216-R2 |
GASKET Not Available This part replaces IH-376216-R1. Price: |
| 17 |
IH-384706-R2 |
HOUSING Not Available Price: |
| 18 |
941-0361 |
Bearing, Ball This part replaces 741-0361. Price: $43.82 |
| 19 |
IH-384709-R1 |
RING, DRIVE SHAFT BEARING RETAINER Not Available Price: |
| 20 |
IH-385076-R92 |
SEAL This part replaces IH-385076-R91. Price: $29.30 |
| 21 |
IH-394036-R2 |
COUPLER-CLUTCH SHA This part replaces IH-394036-R1. Price: $74.77 |
| 22 |
IH-384725-R2 |
GASKET This part replaces IH-384725-R1. Price: $10.32 |
| 23 |
IH-384714-R11 |
Plate Assy, Reduction Housing Cover Price: Call Us |
| 24 |
717-3073 |
INPUT SHAFT Not Available Price: |
| 25 |
941-0362 |
Bearing, Needle This part replaces 741-0362. Price: $95.90 |
| 26 |
IH-172530 |
Plug, 11/16 Expansion Price: Call Us |
| 27 |
None |
Not serviced separately |
| 28 |
IH-350788-R1 |
PIN Not Available Price: |
| 29 |
IH-223472-C91 |
Case w/Drive Gear, Differential Price: Call Us |
| 30 |
None |
Gear, Differential Side |
| 31 |
IH-350789-R1 |
Shaft, Differential Pinion Price: Call Us |
| 32 |
717-3113 |
PINION-10T Not Available Price: |
| 33 |
IH-350787-R1 |
GEAR Not Available Price: |
| 501468401 |
501468401 |
SPRING Price: $6.99 |
| 501468501 |
501468501 |
BALL Price: $6.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667001 |
501667001 |
GASKET, METERING SIDE Price: $6.99 |
| 501667301 |
501667301 |
METERING DIAPHRAGM Price: $64.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 501668401 |
501668401 |
REPAIR KIT DIAPHRAGM SET Price: $17.99 |
| 501832901 |
501832901 |
BUSHING Price: $2.99 |
| 502254701 |
502254701 |
PUMP DIAPHRAGM Price: $19.99 |
| 503081801 |
503081801 |
Washer Price: $7.50 |
| 503082001 |
503082001 |
NIPPLE Price: $4.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |
| 503281812 |
503283208 |
CARBURETOR C3-EL18 This part replaces 503281812. Price: $99.99 |
| 503562301 |
503562301 |
Screw Price: $0.40 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503581501 |
503581501 |
JET Price: $4.99 |
| 503614801 |
503614801 |
IDLE SPEED SCREW Price: $2.99 |
| 503638201 |
503638201 |
CHOKE VALVE Price: $2.99 |
| 503669601 |
503669601 |
THROTTLE VALVE Price: $4.99 |
| 503945201 |
503945201 |
Throttle Shaft Price: $9.06 |
| 503945601 |
503945601 |
SPRING Price: $2.99 |
| 503945701 |
503945701 |
IDLE NEEDLE Price: $4.99 |
| 503970601 |
503970601 |
RETURN SPRING Price: $2.99 |
| 503991601 |
503991601 |
LEVER Price: $2.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 507574201 |
507574201 |
Price: Call Us |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
| 537075201 |
537075201 |
ADJUSTING SCREW Price: $7.99 |
| 537075301 |
537075301 |
JET Price: $1.87 |
| 537108701 |
537108701 |
COVER Price: $30.32 |
| 537157901 |
537157901 |
CHOKE SHAFT Price: $6.99 |
| 537158001 |
537158001 |
CHOKE LEVER Price: $5.99 |
| 537158101 |
537158101 |
SPRING Price: $9.99 |
