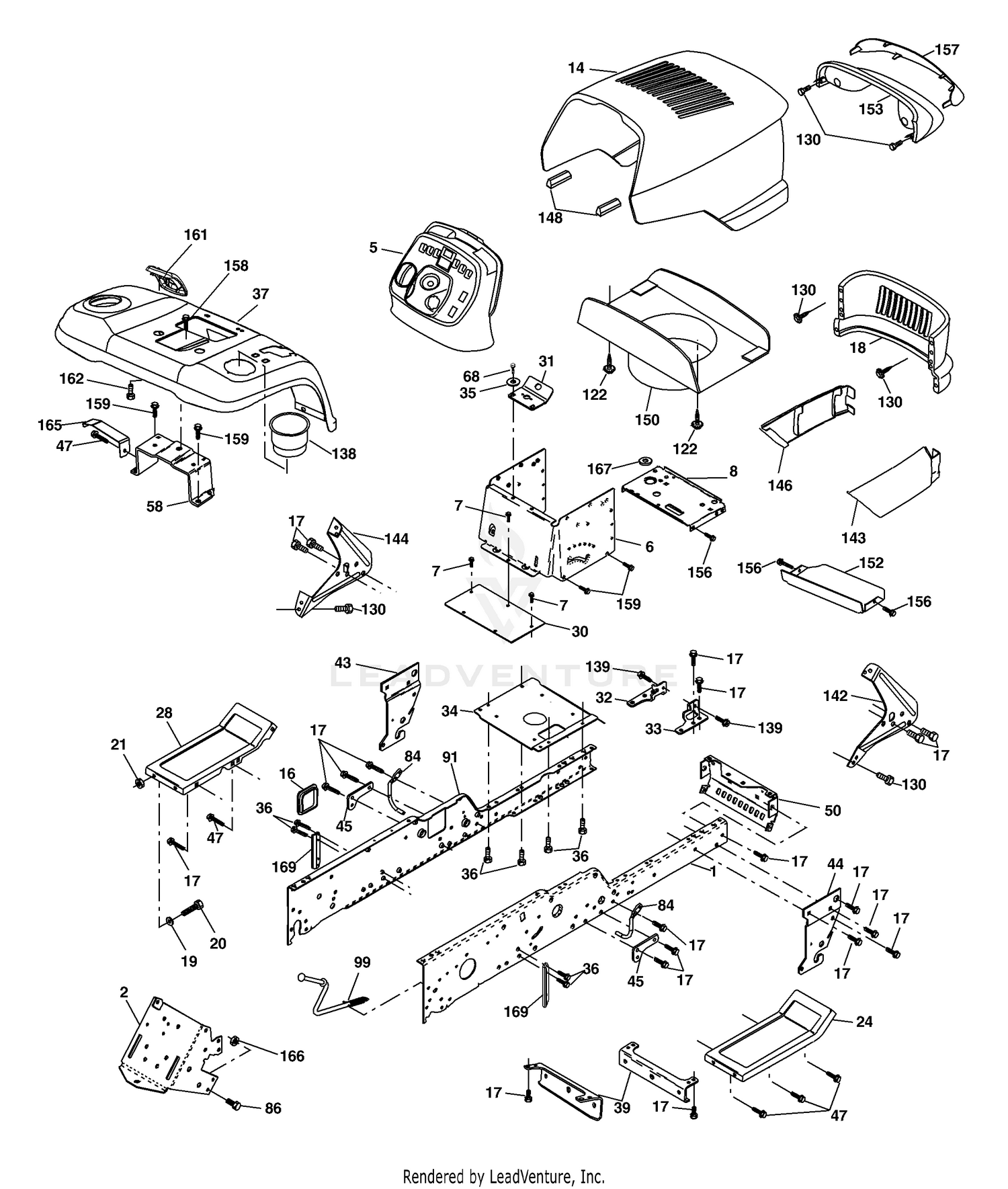

| Ref | Part Number | Description |
|---|
| 1 |
180375 |
Rail, Frame RH Price: Call Us |
| 2 |
175282 |
Drawbar, Gt Price: Call Us |
| 5 |
187934X428 |
Dash Price: Call Us |
| 6 |
157882 |
Dash Asm., Lower Price: Call Us |
| 7 |
17720408 |
Screw, Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 8 |
184668 |
Support, Battery Price: Call Us |
| 10 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 14 |
175260X428 |
Hood Asm., Pnt Price: Call Us |
| 16 |
121794X |
Cover, Access Price: Call Us |
| 17 |
17060612 |
Screw, 3/8-16 x 3/4 Price: Call Us |
| 18 |
175289X428 |
Grille Price: Call Us |
| 19 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 20 |
74780616 |
Bolt, Fin Hex 3/8-16 x 1 Price: Call Us |
| 20 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 20 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 21 |
73800600 |
Nut, Lock Hex w/Ins. 3/8-16 unc Price: Call Us |
| 24 |
179717X428 |
Footrest, RH Price: Call Us |
| 28 |
179716X428 |
Footrest, LH Price: Call Us |
| 30 |
145052 |
Saddle, Hydro 1995 Price: Call Us |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 31 |
161419 |
Bracket, Supt 1-pc VGT Steering Price: Call Us |
| 32 |
161327 |
Bracket, Pivot Chassis LH Price: Call Us |
| 33 |
161326 |
Bracket, Pivot Chassis RH Price: Call Us |
| 34 |
177018 |
Plate Asm. Engine Chassis Price: Call Us |
| 35 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 36 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 37 |
178510X428 |
Fender, Pnt. Price: Call Us |
| 39 |
175278 |
Bracket, Axle Front Price: Call Us |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 43 |
136939 |
Bracket, Spnsn Front Lh Price: Call Us |
| 44 |
136940 |
Bracket, Spnsn Front Rh Price: Call Us |
| 45 |
187270 |
Bracket Arm Susp. Price: Call Us |
| 47 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 TYT Price: Call Us |
| 50 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 50 |
175476 |
Bracket, Chassis Front Price: Call Us |
| 58 |
183569 |
Bracket Asm., Fender Price: Call Us |
| 60 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 68 |
17490508 |
Screw, Thd 5/16-18 x 1/2 Price: Call Us |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 84 |
188164 |
Upstop Price: Call Us |
| 86 |
74780716 |
Bolt, Fin Hex 7/16-14 unc x 1 Price: Call Us |
| 90 |
120-2561 |
CRANKSHAFT ASM This part replaces 105-3718. Price: $3,034.45 |
| 91 |
180374 |
Rail, Frame Lh Price: Call Us |
| 99 |
177143 |
Rod By Pass Price: Call Us |
| 110 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 120 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 122 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 130 |
171875 |
Screw HWHD Hi-Lo #13-16 x 3/4 Price: Call Us |
| 130 |
98-9666 |
KEY Price: $3.58 |
| 138 |
179125X428 |
Cupholder YTGT Price: Call Us |
| 139 |
171873 |
Bolt Shoulder 5/16-18 TT Price: Call Us |
| 140 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 142 |
161897 |
Bracket Dash RH Price: Call Us |
| 143 |
169847X428 |
Skirt Grill RH Price: Call Us |
| 144 |
161900 |
Bracket Dash LH Price: Call Us |
| 146 |
169848X428 |
Skirt Grill LH Price: Call Us |
| 148 |
164655 |
Extrusion Bumper Price: Call Us |
| 150 |
175352 |
Duct Heat Hood Price: Call Us |
| 150 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 152 |
177956 |
Shield Browning Price: Call Us |
| 153 |
179761 |
Light Box Asm. w/Lens Price: Call Us |
| 156 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 157 |
161840 |
Lens, Bar Price: Call Us |
| 158 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 159 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 160 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 161 |
179612X428 |
Console Fuel Window Price: Call Us |
| 162 |
142432 |
Screw 1/4-1/2 Price: Call Us |
| 165 |
183554 |
Bracket Support Tank Price: Call Us |
| 166 |
73680700 |
Nut, Crownlock 7/16-14 unc Price: Call Us |
| 167 |
184672 |
Bushing Price: Call Us |
| 170 |
98-9373 |
O-RING Price: $3.11 |
| 180 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9554. Price: $66.99 |
| 180 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 180 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 190 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 190 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 190 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 200 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) This part replaces 105-3719. Price: $60.46 |
| 200 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) This part replaces 105-3720. Price: $66.64 |
| 200 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 210 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 210 |
98-9413 |
BEARING-THRUST (STD) This part replaces 99-6864. Price: $16.90 |
| 210 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 220 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 99-6868. Price: $18.42 |
| 220 |
98-9688 |
BEARING-THRUST (STD) This part replaces 99-6867. Price: $16.90 |
