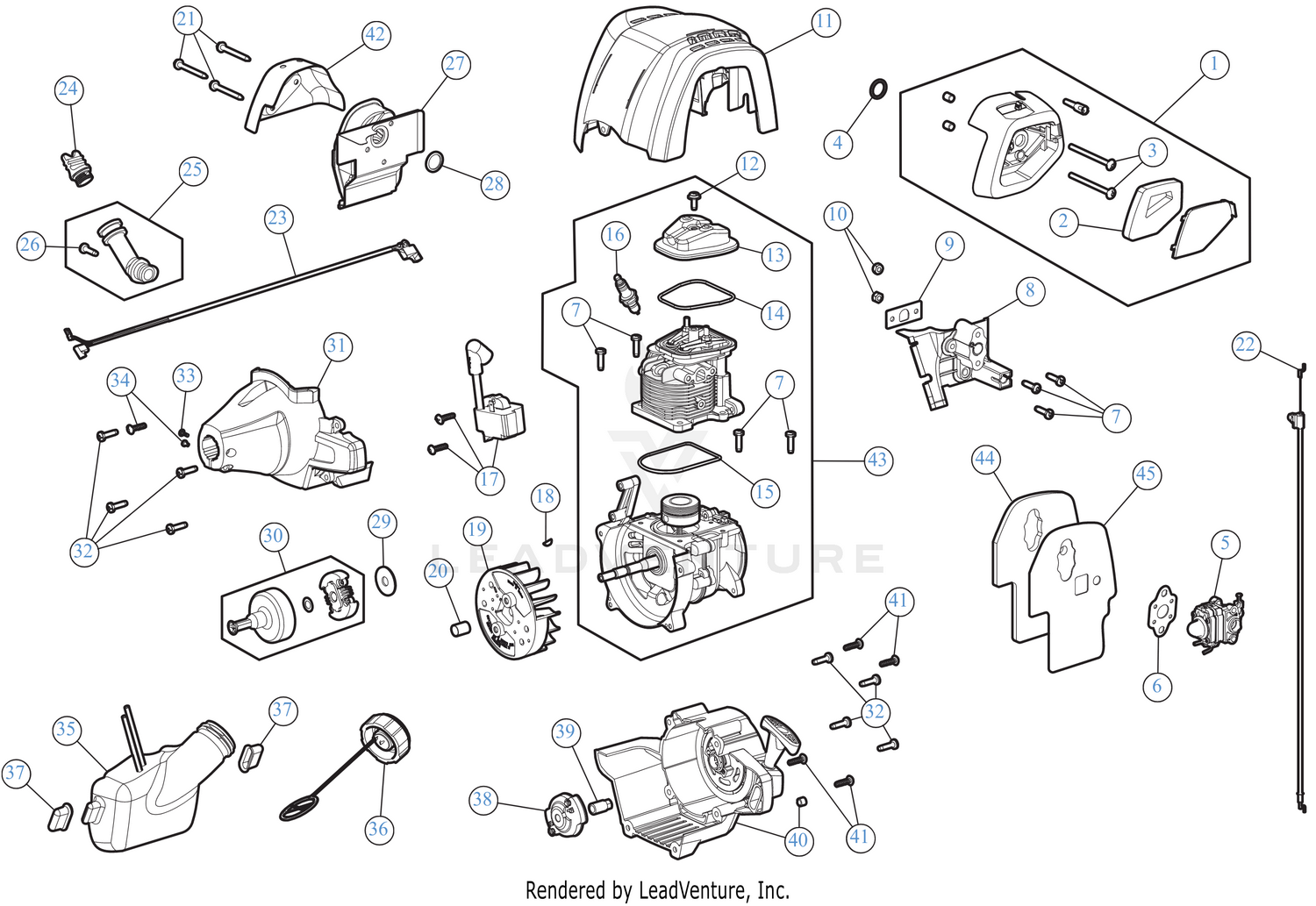

Engine Assembly
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 753-06085 | AIR FILTER Price: $3.05 |
| 3 | 753-06939 | SCREW 10-32X3 Price: $2.83 |
| 4 | 791-181751 | O-RING Price: $3.92 |
| 5 | 753-06083 | CARBURETOR ASSEMBLY Price: $46.32 |
| 6 | 791-181709 | CARBURETOR GASKET Price: $4.30 |
| 7 | 9052-1 | SCREW, M5 X18 Price: $3.78 |
| 8 | 731-08964 | INSULATOR Price: $4.10 |
| 9 | 753-05673 | INSULATOR GASKET Price: $9.07 |
| 10 | 712-04099 | NUT 10-32 Price: $5.94 |
| 11 | 731-07528-1 | ENGINE COVER Price: $8.50 |
| 12 | 791-181025 | SCR, VALVE COVER Price: $2.44 |
| 13 | 753-05901 | ROCKER COVER Price: $7.13 |
| 14 | 753-05902 | O-RING Price: $4.58 |
| 15 | 753-05910 | O-RING CYL AC5 Price: $2.65 |
| 16 | 794-00082 | SPARK PLUG 4 CYCL Price: $6.35 |
| 17 | 753-05907 | MODULE MA-95 Price: $45.78 |
| 18 | 914-04016 | WOODRUFF KEY #403-.125 x .375 Price: $3.82 |
| 19 | 753-09584 | FLYWHEEL W/KEY Price: $22.24 |
| 20 | 753-05814 | SPACER .591" Price: $3.58 |
| 21 | 710-04809 | SCREW M5 x 44MM Price: $2.83 |
| 22 | 753-06166 | THROTTLE CABLE Price: $14.01 |
| 23 | 794-00047A | WIRE LEAD AC5 Price: $4.92 |
| 24 | 753-05408 | OIL PLUG Price: $25.95 |
| 26 | 9054 | SCR, M5 x 15.8MM Price: $3.82 |
| 27 | 753-06334 | MUFFLER ASSEMBLY AC5.1 Price: $15.79 |
| 28 | 753-05244 | GASKET/MUFFLER Price: $5.11 |
| 29 | 9162-1 | WASH, CLUTCH O.D. 1.155 +/- .0 Price: $3.91 |
| 30 | 753-05860 | SMALL CLUTCH ASSEMBLY W/SMALL DRUM Price: $22.50 |
| 31 | 753-06335 | CLUTCH COVER Price: $4.39 |
| 32 | 710-04604A | SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 33 | 791-182519 | SCREW, 8-32 x .312 P Price: $4.37 |
| 34 | 753-04291 | SCREW:CLMPNG W/NUT Not Available Price: |
| 35 | 753-06093 | FUEL TANK ASSEMBLY Not Available Price: |
| 36 | 753-04084 | FUEL CAP ASSEMBLY Not Available Price: |
| 37 | 753-05259 | FUEL TANK PADS Price: $5.72 |
| 38 | 753-06091 | PAWL ASSEMBLY AC5 Price: $7.90 |
| 39 | 753-06104 | ELECTRIC START ADP Price: $3.61 |
| 40 | 841-021101S | STARTER HOUSING Not Available Price: |
| 41 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 42 | 753-06101 | MUFFLER SHLD Not Available Price: |
| 44 | 753-06122 | HEAT SHLD CARB AC5 Not Available Price: |
