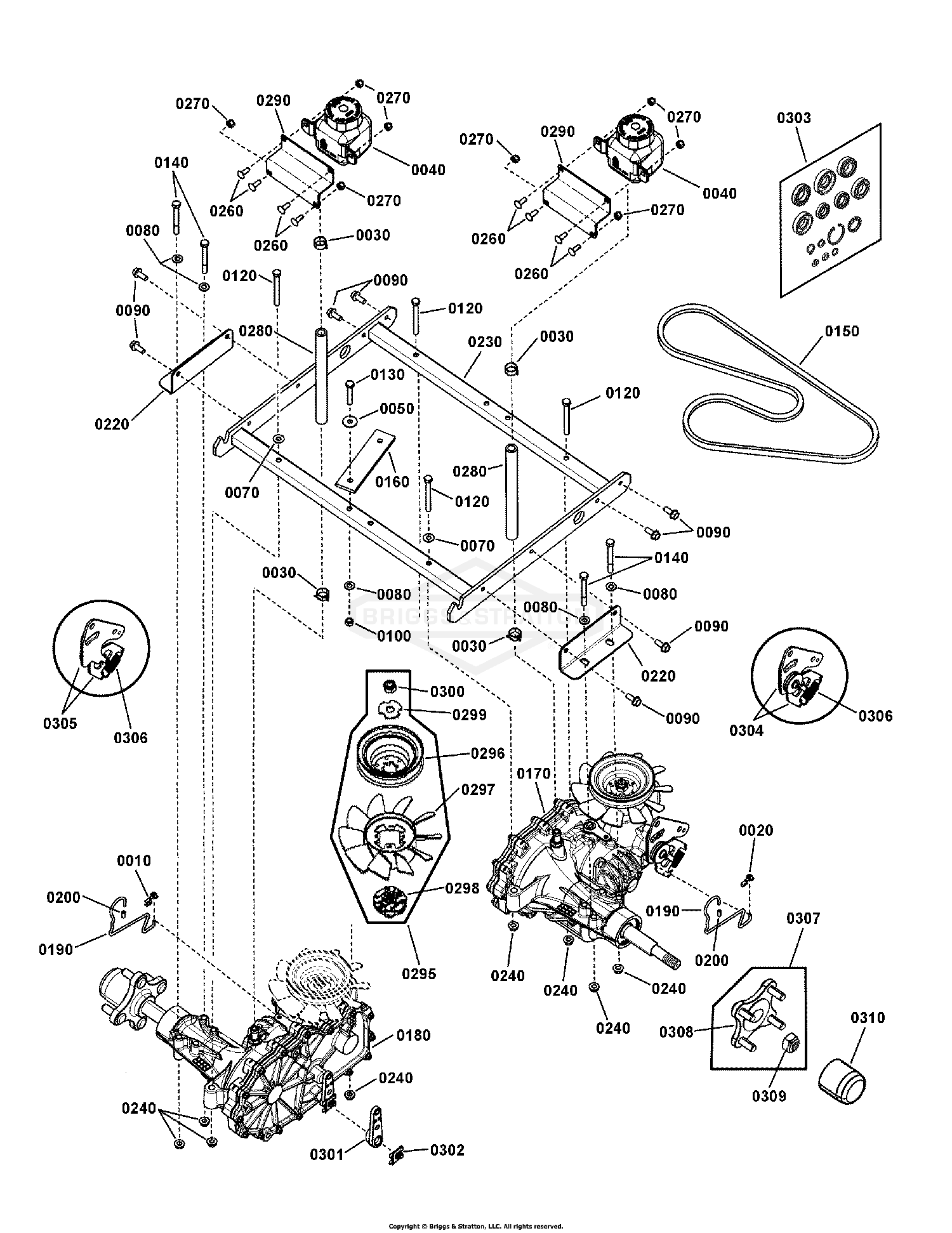

| Ref | Part Number | Description |
|---|
| 0010 |
1717024SM |
CLIP, Rod End Clevis RH (for .188 Dia. Rod) Price: $6.68 |
| 0020 |
1725550SM |
CLIP, Rod End Clevis LH (for .188 Dia. Rod) Price: $5.36 |
| 0030 |
5025474SM |
CLAMP - HOSE Price: $2.97 |
| 0040 |
5100473SM |
RESERVOIR Price: $38.02 |
| 0050 |
7011763SM |
WASHER, 5/16” I.D. 1” O.D. Fender Price: $3.82 |
| 0070 |
7015686SM |
WASHER, Shim, .314 X .75 X .032 BP Price: $3.49 |
| 0080 |
703350 |
WASHER Price: $3.72 |
| 0090 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0100 |
703164 |
NUT Price: $2.87 |
| 0120 |
5025011X24SM |
BOLT, 5/16-18 This part replaces 703870. Price: $3.51 |
| 0130 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 704288. Price: $3.40 |
| 0140 |
703869 |
CAPSCREW,5/16-18X2.75 Price: $5.59 |
| 0150 |
7100102SM |
V-BELT, 58” EL, Hydro Drive Price: $39.45 |
| 0160 |
7104674YP |
RUBBER, Anti-Rotation Price: $13.90 |
| 0170 |
7103418YP |
TRANSAXLE, Hydro Gear, ZT-2800, LH Price: $1,299.99 |
| 0180 |
7103419YP |
TRANSAXLE, Hydro Gear, ZT-2800, RH Price: $1,218.99 |
| 0190 |
7103512YP |
ROD, Roll Release Price: $17.32 |
| 0200 |
7103537YP |
CAP, Vinyl Price: $2.99 |
| 0220 |
7300000BMYP |
BRACKET, TRANSAXLE Price: $11.12 |
| 0230 |
7400288BMYP |
WELDMENT, Transaxle Support This part replaces 7400288BM. Price: $184.99 |
| 0240 |
704067 |
NUT, HEX FLNG,5/16-18 Price: $3.17 |
| 0260 |
703101 |
BOLT,1/4-20X.75 Price: $3.63 |
| 0270 |
703232 |
NUT, 1/4-20, NYLOCK This part replaces 7091603. Price: $3.94 |
| 0280 |
703343 |
HOSE, .5” ID, .78” OD, 8.75” LG Price: $10.79 |
