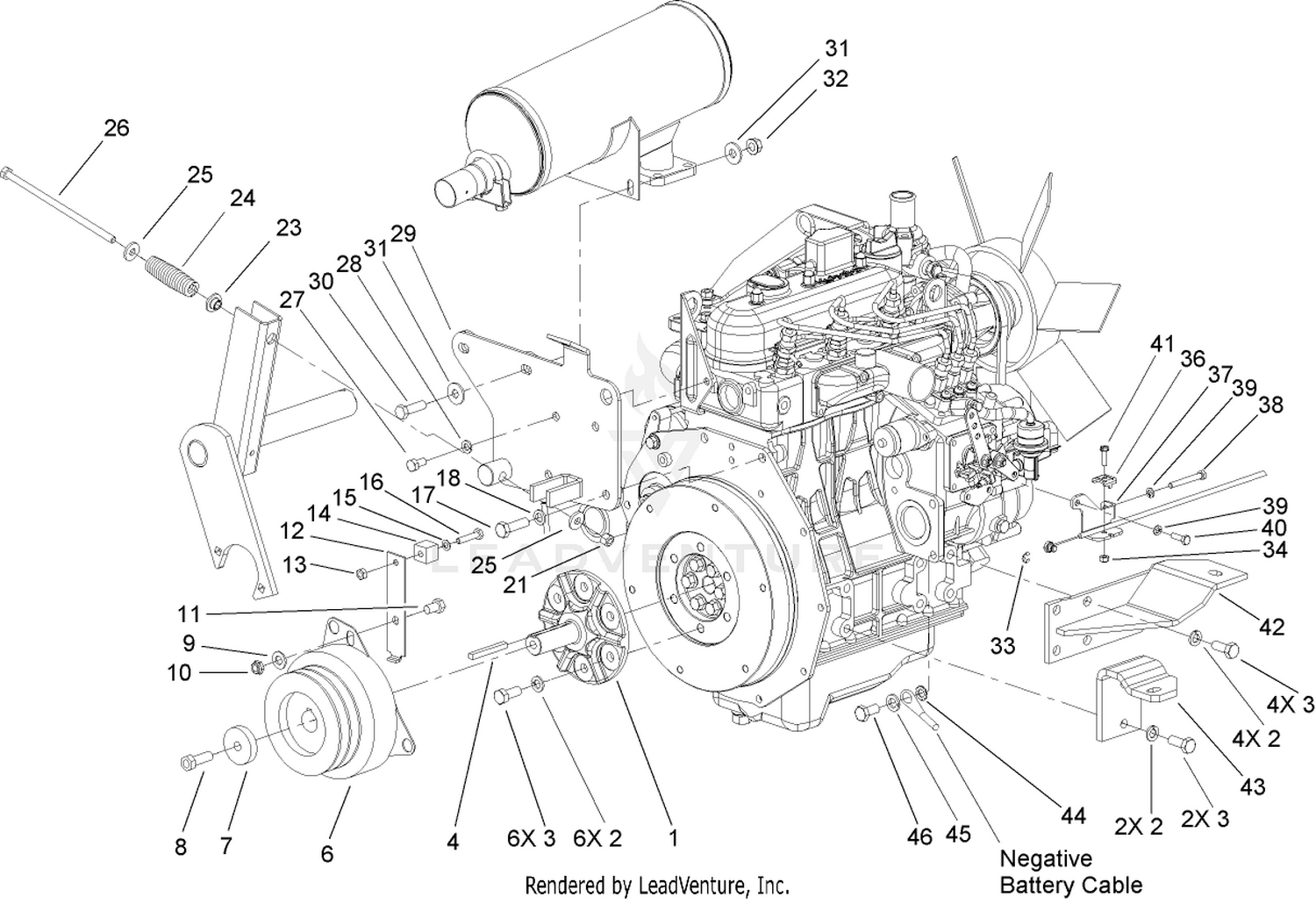

| Ref | Part Number | Description |
|---|
| 1 |
104-1715 |
HUB-CLUTCH Price: $177.49 |
| 2 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 3 |
43-0090 |
SCREW-HH Price: $8.05 |
| 4 |
18-6430 |
KEY-SQUARE Price: $3.56 |
| 6 |
110-9697 |
ELECTRIC CLUTCH KIT This part replaces 100-6565. Price: $1,166.55 |
| 7 |
105-3698 |
SPACER Price: $65.71 |
| 8 |
3212-5 |
SCREW-HH Price: $2.46 |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 11 |
323-34 |
SCREW-HH Price: $0.54 |
| 12 |
94-7438 |
LEVER-CLUTCH ANCHOR Price: $41.49 |
| 13 |
32153-4 |
NUT-HEX, SIDE DEFORM Price: $0.75 |
| 14 |
95-6328 |
BUMPER-ELECTRIC CLUTCH Price: $39.08 |
| 15 |
3256-60 |
WASHER-FLAT Price: $1.49 |
| 16 |
321-8 |
SCREW-HH Price: $0.34 |
| 17 |
56-2140 |
SCREW-HH Price: $4.17 |
| 18 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 24 |
21-0400-01 |
SPRING-COMPRESSION Price: $20.88 |
| 25 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 26 |
110-9696 |
BOLT-HH This part replaces 94-7431. Price: $18.93 |
| 27 |
33114-016 |
SCREW-HH Price: $0.27 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
106-4379-03 |
MUFFLER MOUNT ASM Price: $142.69 |
| 30 |
323-44 |
SCREW-HH Price: $3.69 |
| 31 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 32 |
32128-21 |
NUT-HF Price: $0.39 |
| 33 |
701197 |
E-RING Price: $2.99 |
| 34 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 36 |
81-1690 |
CLAMP-CABLE Price: $2.24 |
| 37 |
110-9682-03 |
BRACKET-THROTTLE This part replaces 106-8097-03. Price: $28.22 |
| 38 |
33113-050 |
SCREW-HH Price: $0.62 |
| 39 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 40 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 41 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 42 |
117-0836-03 |
MOUNT-ENGINE, RH FRONT This part replaces 104-1710-03. Price: $82.72 |
| 43 |
104-1713-03 |
MOUNT-ENGINE, RH REAR Price: $78.67 |
| 44 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 45 |
3253-6 |
WASHER-LOCK Price: $0.39 |
