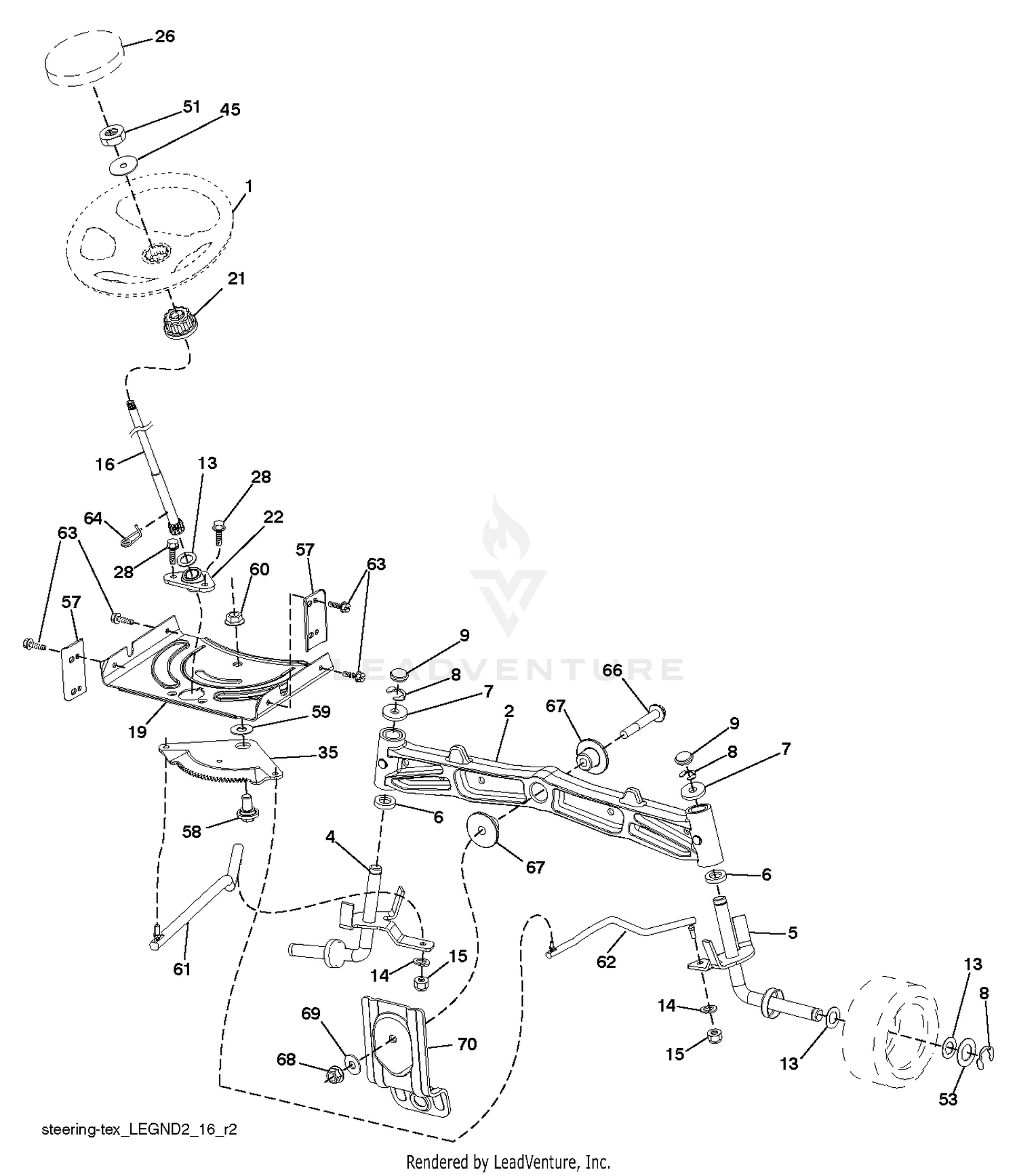

| Ref | Part Number | Description |
|---|
| 1 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
136-3375 |
NO.1 LIFTARM ASM This part replaces 108-4032. Price: $856.35 |
| 4 |
131-4201 |
PIN-PIVOT This part replaces 104-5525. Price: $20.50 |
| 5 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 6 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
328-7 |
SCREW-HH Price: $4.00 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
127-6429 |
LIFT CYLINDER ASM Price: $710.40 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
127-6427 |
LIFT CYLINDER ASM Price: $652.96 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 11 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 12 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 13 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
125-1906 |
PIN-CYLINDER Price: $27.84 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 17 |
105-3987-03 |
PLATE-SKID Price: $42.52 |
| 18 |
136-3377 |
NO.4 LIFTARM ASM This part replaces 108-4033. Price: $866.36 |
| 19 |
323-7 |
SCREW-HH Price: $0.65 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
136-2922 |
SHAFT,PIVOT CARRIER Price: $61.94 |
| 21 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 23 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 24 |
104-5585 |
BRACKET-SWITCH Price: $21.55 |
| 25 |
106-9288 |
SENSOR-PROXIMITY, FERROUS Price: $126.57 |
| 26 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 28 |
104-5689-03 |
BRACKET-SUPPORT, BUMPER Price: $62.97 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
87-3470 |
BUMPER Price: $18.89 |
| 31 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 32 |
105-9831-03 |
BRACKET-BUMPER, NO. 1 Price: $26.24 |
| 33 |
104-5680-03 |
FRAME-CARRIER, FRONT Price: $1,713.36 |
| 35 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 36 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 37 |
323-52 |
SCREW-HH Price: $3.63 |
| 38 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 39 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 40 |
105-9822 |
SPACER Price: $3.16 |
| 41 |
323-11 |
SCREW-HH Price: $1.08 |
| 42 |
321-15 |
SCREW-HH Price: $0.61 |
| 43 |
32128-33 |
NUT-HF Price: $0.25 |
| 44 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 46 |
136-3379 |
NO.5 LIFTARM ASM This part replaces 108-4034. Price: $894.10 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
