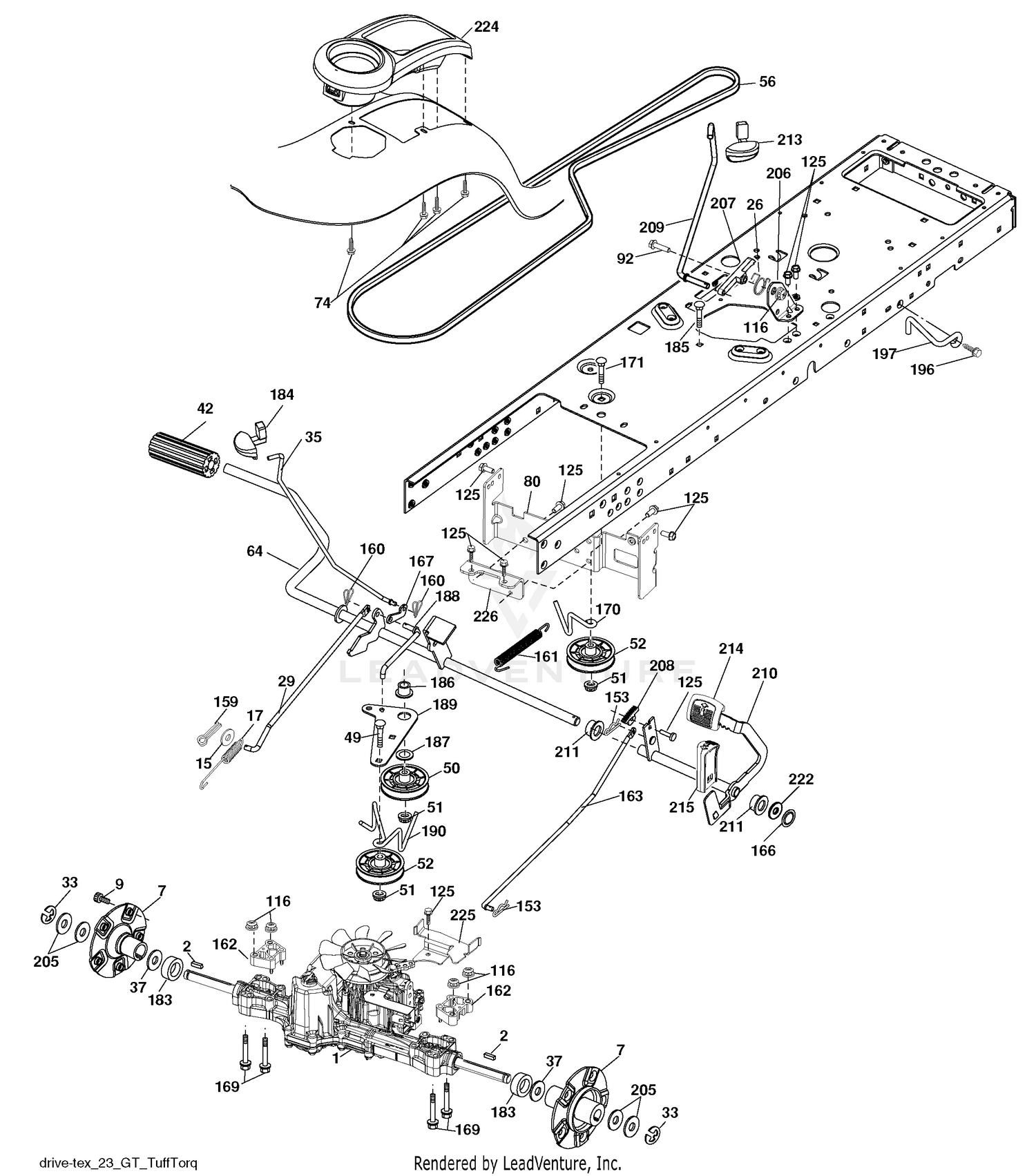

| Ref | Part Number | Description |
|---|
| 1 |
99-5610 |
PIN Price: $40.16 |
| 2 |
186211 |
Key Price: Call Us |
| 2 |
98-1880-03 |
KNUCKLE-PIVOT This part replaces 98-1880-01. Price: $350.23 |
| 3 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 4 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 5 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 6 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 7 |
199844 |
Hub Asm. Wheel Price: Call Us |
| 8 |
94-9998 |
WASHER-THRUST Price: $11.60 |
| 9 |
140080 |
Bolt Hub Wheel Price: Call Us |
| 9 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 10 |
105-3308 |
DISCONTINUED Price: Call Us |
| 11 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 12 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 13 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 14 |
99-5642 |
HOSE-HYD Price: $157.38 |
| 15 |
100-3799 |
HOSE ASM Price: $143.98 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 16 |
105-3309-03 |
DISCONTINUED Price: Call Us |
| 17 |
328-7 |
SCREW-HH Price: $4.00 |
| 17 |
401072 |
Spring, Brake Price: Call Us |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
104-3798 |
HYD HOSE ASM Price: $74.65 |
| 20 |
105-0110 |
NO. 5 LIFT ARM ASM Price: $912.87 |
| 21 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 22 |
33114-020 |
SCREW-HH Price: $0.28 |
| 23 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 24 |
99-5621 |
GUIDE-HOSE Price: $34.45 |
| 25 |
83-6780 |
PIN-CYLINDER This part replaces 83-6780-01. Price: $130.51 |
| 26 |
199679 |
Spring Return Cruise Price: Call Us |
| 26 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 27 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 28 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 29 |
403806 |
Rod, Brake Price: Call Us |
| 29 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 30 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 31 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 32 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 33 |
12000001 |
Ring E Price: Call Us |
| 33 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 34 |
104-3799 |
DISCONTINUED Price: Call Us |
| 35 |
197275 |
Rod, Brake, Park Price: Call Us |
| 35 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 36 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 37 |
121749X |
Washer Price: Call Us |
| 37 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 38 |
108-6715 |
GAUGE BAR ASM This part replaces 98-1852. Price: $148.12 |
| 42 |
123533X |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
130969 |
V-Belt, Drive Price: Call Us |
| 64 |
197865 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 74 |
142432 |
Screw Hx Wsh Hi-Lo 1/4 x 1/2 unc Price: Call Us |
| 80 |
404483 |
Strap Torque Price: Call Us |
| 92 |
74760520 |
Bolt Fin Hex 5/16-18 unc x 1.25 Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 153 |
4497H |
Retainer Spring Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 162 |
195785 |
Spacer Transaxle Price: Call Us |
| 163 |
401034 |
Rod Pedal Control Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
196211 |
Latch Brake Parking Price: Call Us |
| 169 |
74490560 |
Bolt Hex Flghd 5/16-18 x 3.0 Gr. 5 Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110616 |
Bolt Price: Call Us |
| 183 |
400424 |
Spacer Split Price: Call Us |
| 184 |
195361X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 196 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 197 |
199769 |
Bracket Clutch Anti-Rotation Price: Call Us |
| 205 |
121748X |
Washer Price: Call Us |
| 206 |
197867 |
Bracket Mount Latch Cruise Price: Call Us |
| 207 |
197868 |
Latch Control Cruise Price: Call Us |
| 208 |
197869 |
Bolt Sector Control Cruise Price: Call Us |
| 209 |
199466 |
Rod Conrtrol Cruise Price: Call Us |
| 210 |
197860 |
Rocker Asm. Pdeal Control Price: Call Us |
| 211 |
120183X |
Bearing Nylon Price: Call Us |
| 213 |
195352X428 |
Knob Control Cruise Price: Call Us |
| 214 |
197302 |
X428 Pad Pedal Forward Price: Call Us 197302 X428 |
| 215 |
197301 |
X428 Pad Pedal Reverse Price: Call Us 197301 X428 |
| 222 |
19212010 |
Washer 21/32 x 1-1/4 x 10 Ga. Price: Call Us |
| 224 |
193099X428 |
Console Toolbox Price: Call Us |
| 225 |
403319 |
Keeper Belt Trans. Price: Call Us |
