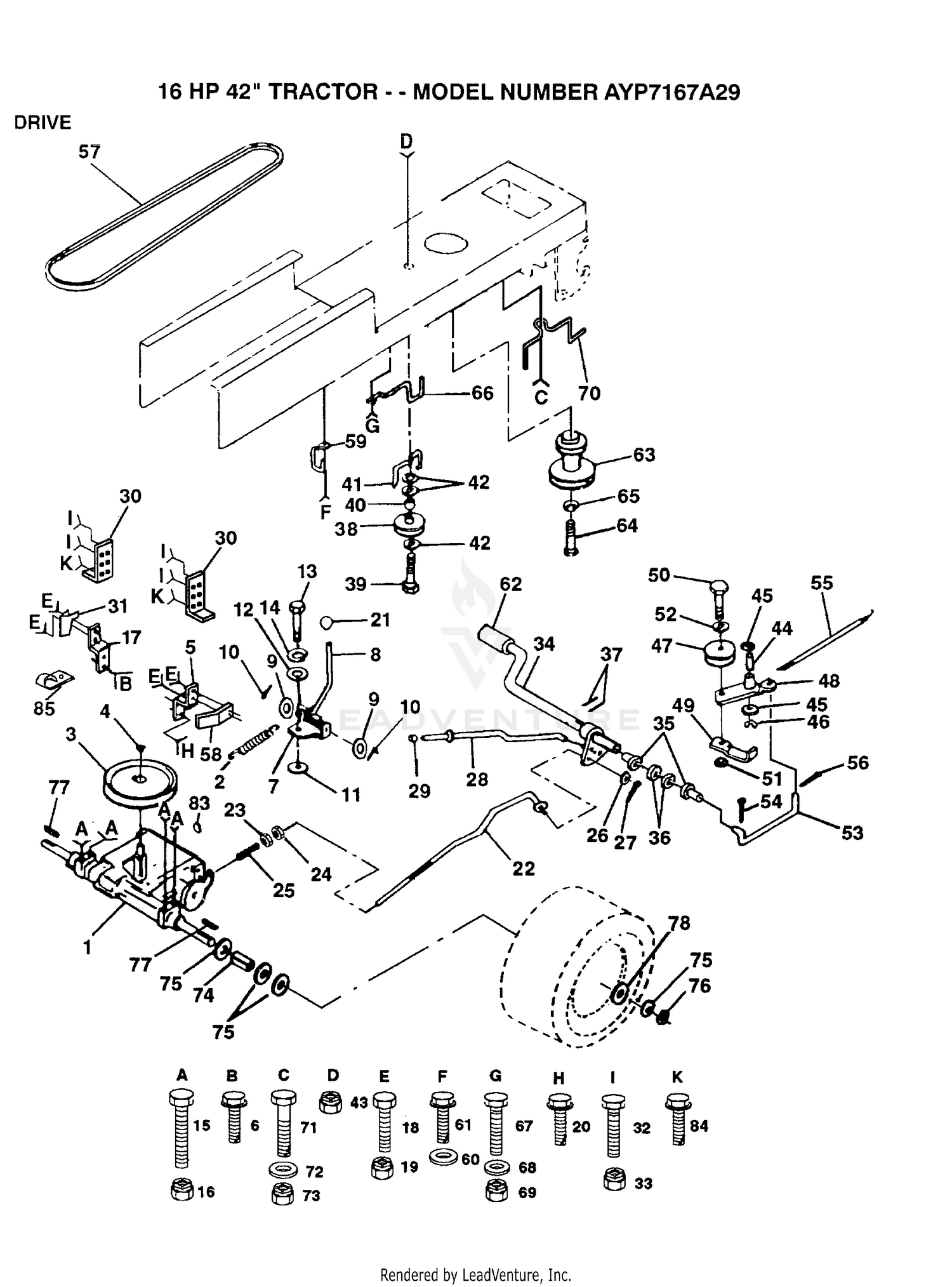

| Ref | Part Number | Description |
|---|
| 1 |
104-1715 |
HUB-CLUTCH Price: $177.49 |
| 1 |
131965 |
SUB= 137367 Price: Call Us |
| 2 |
110422X |
SUB= 146682 Price: Call Us |
| 2 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 3 |
43-0090 |
SCREW-HH Price: $8.05 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
63-8150 |
KEY-SQUARE Price: $9.44 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 5 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 6 |
107-9061 |
ELECTRIC CLUTCH / BRAKE ASM Price: $1,140.58 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 7 |
105-3698 |
SPACER Price: $65.71 |
| 7 |
130802 |
SUB= 162240 Price: Call Us |
| 8 |
131679 |
SHIFT ROD Price: Call Us |
| 8 |
3212-5 |
SCREW-HH Price: $2.46 |
| 9 |
19151216 |
WASHER Price: Call Us |
| 9 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 10 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
120-6568-03 |
STOP-CLUTCH This part replaces 108-6586-03. Price: $32.96 |
| 12 |
19091210 |
WASHER LT Price: Call Us |
| 13 |
32128-25 |
NUT-HF Price: $3.19 |
| 13 |
71040412 |
SUB= 74550412 Price: Call Us |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
104-1713-03 |
MOUNT-ENGINE, RH REAR Price: $78.67 |
| 15 |
117-0836-03 |
MOUNT-ENGINE, RH FRONT This part replaces 104-1710-03. Price: $82.72 |
| 15 |
74760540 |
BOLT Price: Call Us |
| 16 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 16 |
73680500 |
SUB= 73690500 Price: Call Us |
| 17 |
121520X |
STRAP TORQUE Price: Call Us |
| 17 |
56-2140 |
SCREW-HH Price: $4.17 |
| 18 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 18 |
74760612 |
SUB= 74780612 Price: Call Us |
| 19 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 19 |
73680600 |
SUB= 73690600 Price: Call Us |
| 20 |
17490512 |
SCREW Price: Call Us |
| 20 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 22 |
33113-050 |
SCREW-HH Price: $0.62 |
| 23 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 23 |
73800600 |
NUT Price: Call Us |
| 24 |
21-0400-01 |
SPRING-COMPRESSION Price: $20.88 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 26 |
110-9696 |
BOLT-HH This part replaces 94-7431. Price: $18.93 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
33114-016 |
SCREW-HH Price: $0.27 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
133261 |
BRAKE PARK ROD Price: Call Us |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
108-6561-03 |
MOUNT-MUFFLER Price: $183.52 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 30 |
323-44 |
SCREW-HH Price: $3.69 |
| 31 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 32 |
32128-21 |
NUT-HF Price: $0.39 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 33 |
701197 |
E-RING Price: $2.99 |
| 33 |
73680500 |
SUB= 73690500 Price: Call Us |
| 34 |
122424X |
SUB= 149001 Price: Call Us |
| 34 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 35 |
110-9682-03 |
BRACKET-THROTTLE This part replaces 106-8097-03. Price: $28.22 |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
109070X |
BELT KEEPER LT Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 43 |
73680600 |
SUB= 73690600 Price: Call Us |
| 45 |
110812X |
WASHER LT Price: Call Us |
| 46 |
12000039 |
KLIP RING Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
123789X |
ARM IDLER Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
19131316 |
WASHER Price: Call Us |
| 54 |
76020412 |
COTTER PIN Price: Call Us |
| 56 |
76020412 |
COTTER PIN Price: Call Us |
| 57 |
131006 |
BELT-V Price: Call Us |
| 59 |
104777X |
SUB= 140312 Price: Call Us |
| 60 |
19131312 |
WASHER Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
134825 |
SUB= 136004 Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
129921 |
KEEPER.BELT.ENG.L Price: Call Us |
| 67 |
74760616 |
BOLT Price: Call Us |
| 68 |
19131312 |
WASHER Price: Call Us |
| 69 |
73680600 |
SUB= 73690600 Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 71 |
74760616 |
BOLT Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 73 |
73680600 |
SUB= 73690600 Price: Call Us |
| 74 |
109502X |
SPACER LT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 83 |
2228M |
SUB= 2228M1 Price: Call Us |
| 84 |
17490612 |
SCREW Price: Call Us |
