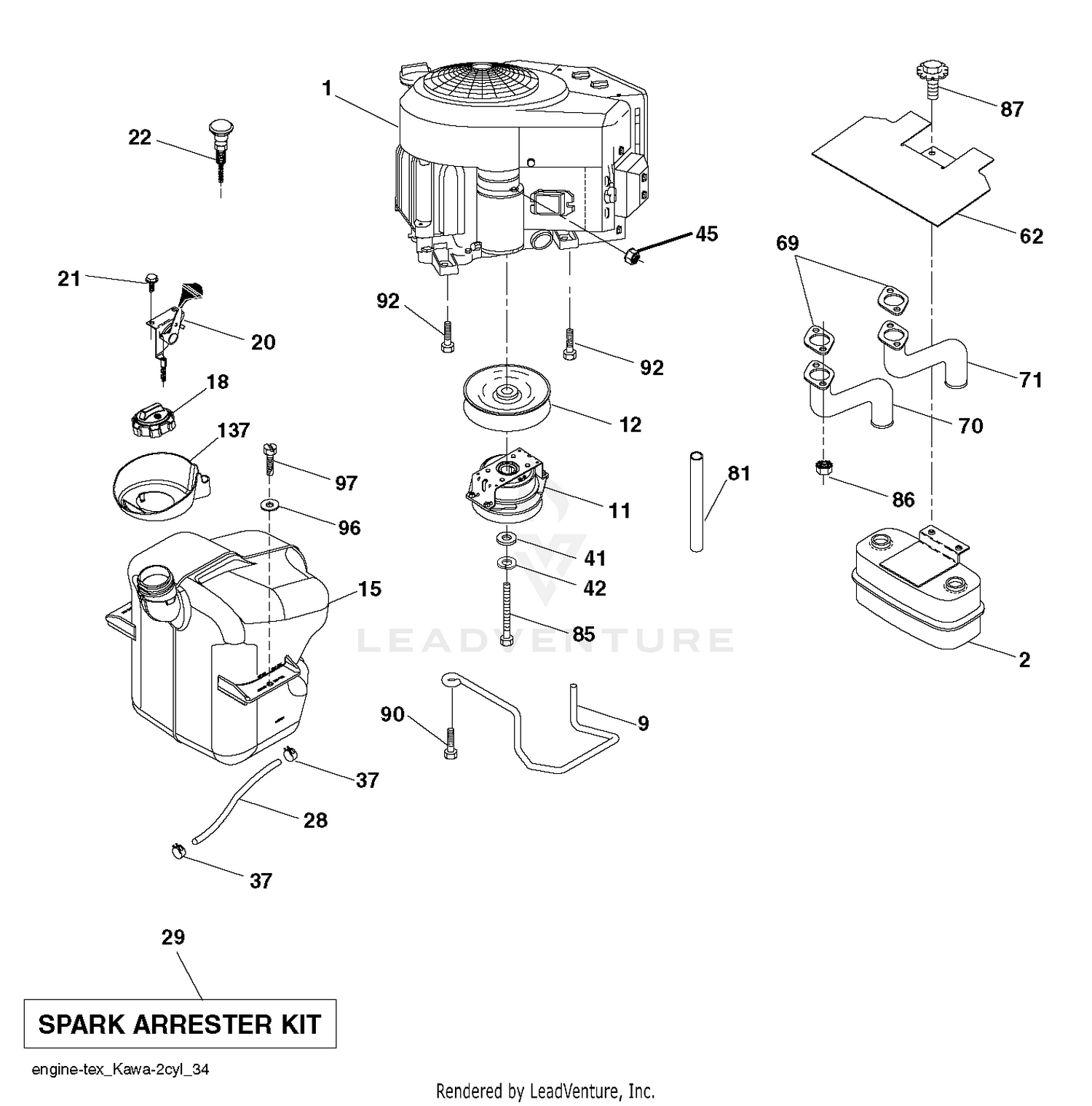

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 3 |
820056 |
Seal-Oil Price: Call Us |
| 7 |
820152 |
Gasket-Cylinder Head Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
583507201 |
TANK.ASSY.XTERNAL.FILL.GT2.TEX This part replaces 532435816. Price: $129.99 |
| 18 |
532441462 |
CAP.ASM.FUEL.2.25"TOP.TURN Price: $11.99 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 20 |
820055 |
Seal-Oil Price: Call Us |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 51 |
820087 |
Gasket-Intake Price: Call Us |
| 51A |
820160 |
Gasket-Intake Price: Call Us |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 87 |
820054 |
Seal-Governor Shaft Price: Call Us |
| 88 |
820148 |
Gasket-Cover Price: Call Us |
| 88A |
820155 |
Gasket-Cover Price: Call Us |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 137 |
532441461 |
SPILL.CUP Price: $7.99 |
| 355 |
820049 |
Washer Price: Call Us |
| 355A |
820064 |
Washer Price: Call Us |
| 358 |
825058 |
Gasket Set Price: Call Us |
| 868 |
820041 |
Seal-Valve Price: Call Us |
| 883 |
820088 |
Gasket-Exhaust Price: Call Us |
| 883A |
820085 |
Gasket-Exhaust Price: Call Us |
| 1022 |
820150 |
Gasket-Rocker Cover Price: Call Us |
| 1033 |
825206 |
Kit-Valve Overhaul Price: Call Us |
| 1062 |
820093 |
Gasket-Outlet Price: Call Us |
| 1065 |
820098 |
Gasket-Inlet Hsg. Price: Call Us |
| 1067 |
820100 |
Gasket-Water Pump Price: Call Us |
| 1070 |
820104 |
Gasket-Oil Strainer Price: Call Us |
| 1078 |
820137 |
Gasket-Oil Pan Price: Call Us |
