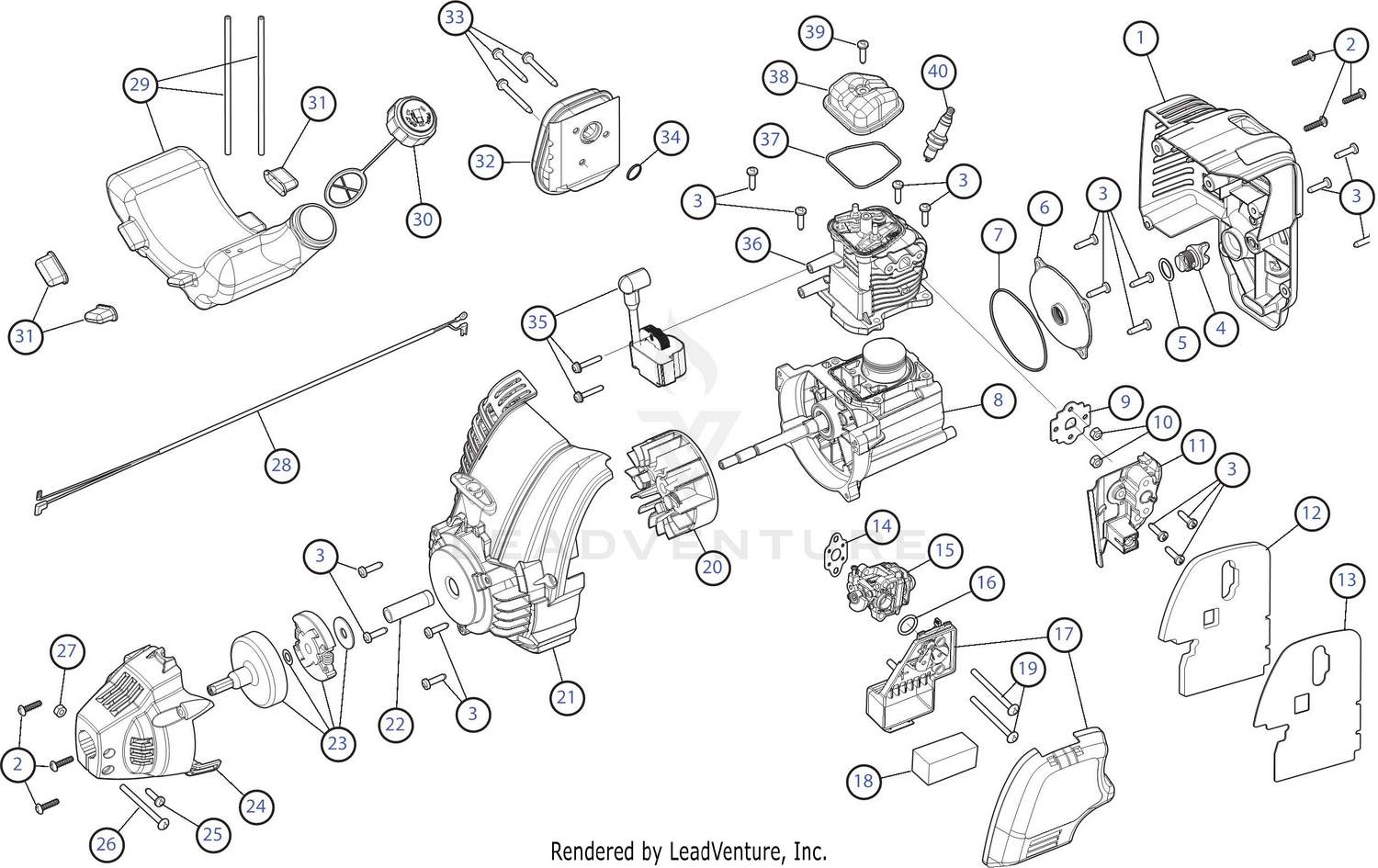

Engine Assembly
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 710-04194 | Cover Screw Price: $3.66 |
| 3 | 710-04604A | SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 5 | 791-182290 | Oil Plug O-Ring Price: $4.29 |
| 6 | 841-020721S | CRANKCASE COVER This part replaces 753-06111. Price: $11.71 |
| 7 | 753-05238 | Crankcase Cover O-Ring Price: $9.20 |
| 9 | 753-05247 | GASKET/INSULATOR Not Available Price: |
| 10 | 712-04099 | Nut Price: $5.94 |
| 11 | 753-06947 | Insulator Price: $6.42 |
| 12 | 753-06949 | Heat Shield Price: $5.15 |
| 13 | 753-06948 | Gasket Price: $4.10 |
| 14 | 791-181709 | Gasket Price: $4.30 |
| 15 | 753-08174 | Carburetor Price: $30.56 |
| 16 | 791-181751 | O-Ring Price: $3.92 |
| 18 | 753-05254 | Air Filter Price: $4.88 |
| 19 | 710-04517 | Screw Price: $4.71 |
| 20 | 753-06221 | Flywheel Assembly Price: $18.82 |
| 22 | 750-04434 | Powershaft Spacer Price: $5.91 |
| 23 | 753-06281 | Clutch Assembly Price: $19.43 |
| 25 | 791-182519 | Anti-Rotation Screw Price: $4.37 |
| 26 | 9689A | Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 27 | 712-0161 | Nut Price: $4.02 |
| 28 | 753-08248 | WIRE LEAD TWST Not Available Price: |
| 30 | 753-1229 | Fuel Tank Cap Price: $19.90 |
| 31 | 753-05259 | Fuel Tank Pads Price: $5.72 |
| 33 | 710-04809 | SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 34 | 753-05244 | Muffler Gasket Price: $5.11 |
| 35 | 753-08302 | Module Assembly Price: $26.74 |
| 37 | 753-05902 | Rocker Cover O-Ring Price: $4.58 |
| 38 | 753-05901 | Rocker Cover Price: $7.13 |
| 39 | 791-181025 | Rocker Cover Screw Price: $2.44 |
| 40 | 794-00098 | Spark Plug Price: $5.93 |
