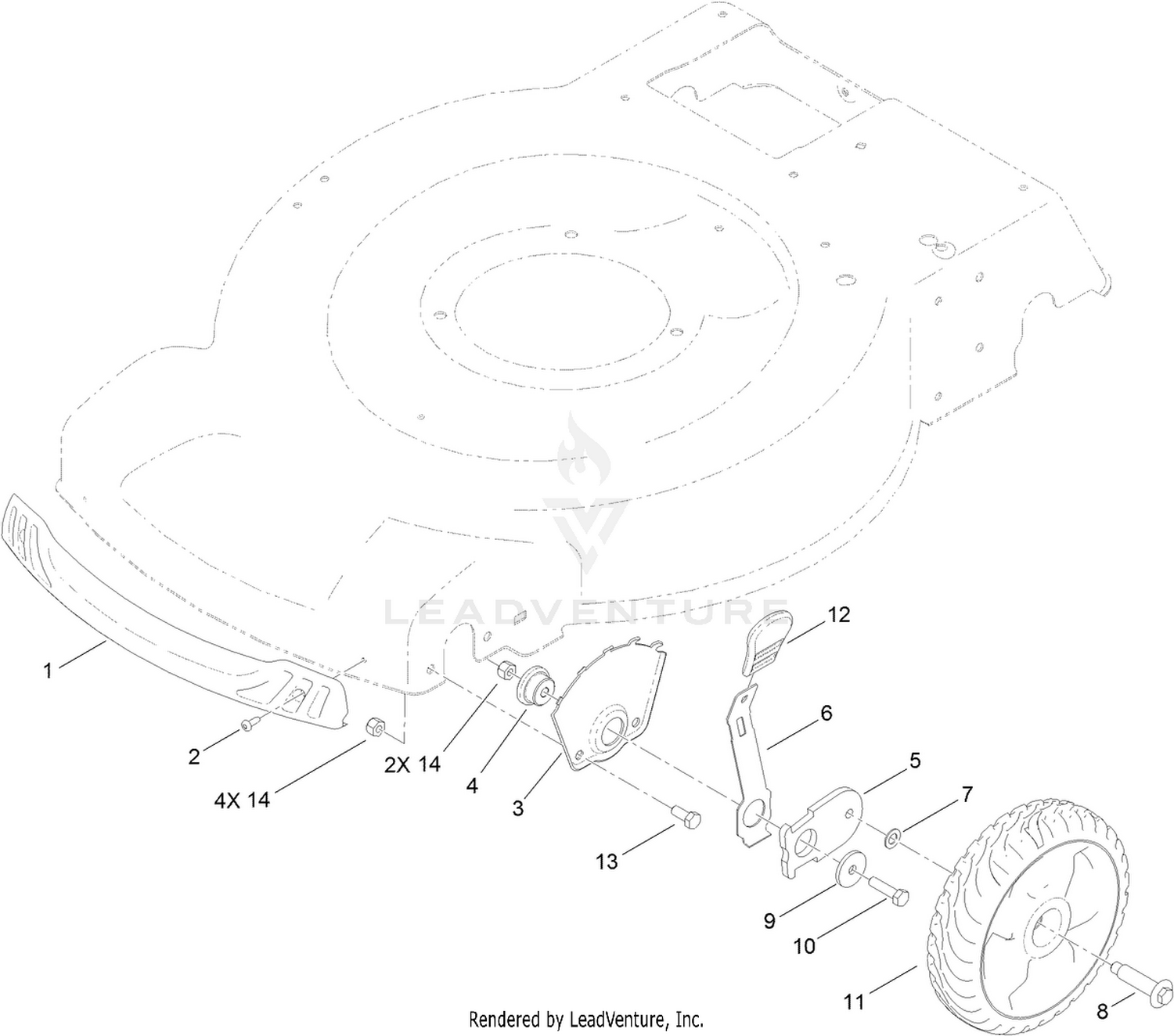

Front Wheel and Height-of-Cut Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-7987 | BUMPER Price: $8.08 |
| 2 | 105-6849 | SCREW-FORMING, THREAD Price: $0.60 |
| 3 | 115-1956-03 | PLATE-HOC, FRONT Price: $6.59 |
| 4 | 105-1818 | BUSHING-MOUNT, HOC Price: $3.26 |
| 5 | 137-9128 | ARM-PIVOT, FRONT This part replaces 105-1807. Price: $5.46 |
| 6 | 105-1809 | ARM-SPRING Price: $7.52 |
| 7 | 40-1940 | WASHER Price: $1.59 |
| 8 | 614650 | BOLT-SHOULDER Price: $3.28 |
| 9 | 105-3048 | WASHER-FLAT Price: $0.89 |
| 10 | 322-6 | SCREW-HH Price: $0.45 |
| 12 | 110-0549 | KNOB-HOC Price: $1.08 |
| 13 | 322-3 | SCREW-HH Price: $0.79 |
