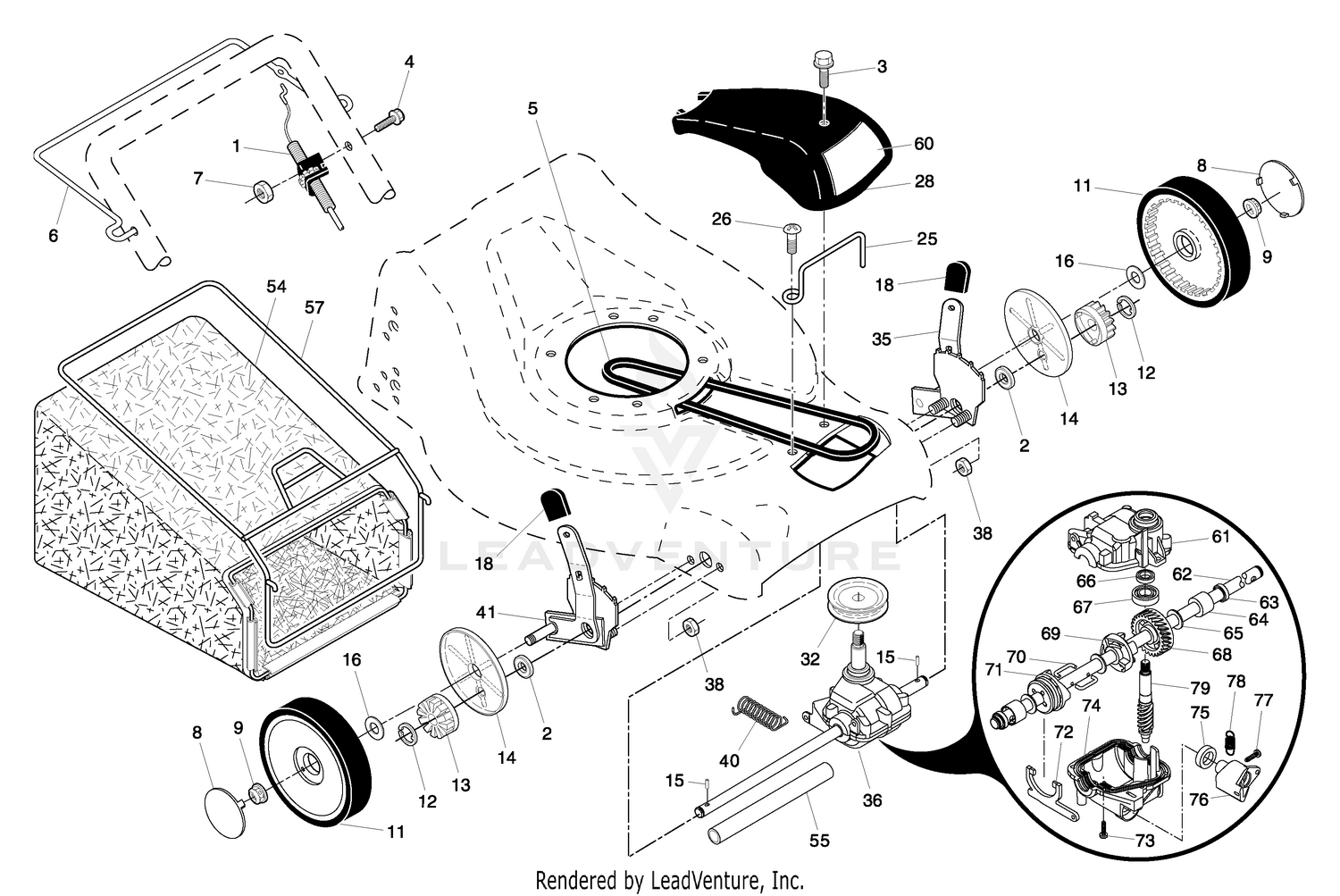

| Ref | Part Number | Description |
|---|
| 1 |
532193480 |
CONTROL.DRIVE.VARI.SPEED.FWGD Price: $37.99 |
| 2 |
532169911 |
BEARING, BALL Price: $11.99 |
| 3 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 4 |
532185681 |
SCREW Price: $3.99 |
| 5 |
532194149 |
BELT.DRIVE.FG Price: $19.99 |
| 6 |
532194185 |
DRIVE CONTROL BAIL This part replaces 532196188. Price: $9.99 |
| 7 |
532191730 |
NUT.HEX.FLANGE.1/4 This part replaces 532751152. Price: $3.99 |
| 8 |
532150182 |
CAP.HUB.ARC.SPOKE.8".LP This part replaces 532180626. Price: $3.99 |
| 9 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 11 |
532180775 |
WHEEL.8X2.PR.LP.RADII.BLACK.BU This part replaces 532180767. Price: $29.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532175103 |
GEAR, PINION Price: $10.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE This part replaces 532191017. Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 18 |
532185574 |
SELECTOR KNOB Price: $5.99 |
| 25 |
532199089 |
KEEPER.BELT.21.EZ.FWGD This part replaces 532196689. Price: $3.99 |
| 26 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 36 |
532188296 |
TRANSMISSION.21RD Price: $89.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532192849 |
SPRING RETURN Price: $4.99 |
| 54 |
580953406 |
GBAG.34710090.H-GREY MS498 This part replaces 532194724. Price: $54.99 |
| 55 |
532175739 |
DRIVESHAFT COVER Price: $2.94 |
| 57 |
532194643 |
FRAME.GBAG.21.FWGD. This part replaces 532188815. Price: $44.99 |
| 60 |
532189066 |
Decal, Drive Cover Price: Call Us |
| 61 |
532196886 |
GEARCASE.HOUSING Price: $12.99 |
| 62 |
532196885 |
SHAFT.OUTPUT Price: $44.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532183499 |
GEAR.27.TEETH.WALK.MOWER Price: $14.99 |
| 69 |
532196884 |
CLUTCH Price: $3.99 |
| 70 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 71 |
532196883 |
CLUTCH Price: $4.99 |
| 72 |
532196882 |
FORK Price: $5.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 74 |
532196881 |
GEARCASE.HOUSING.LOWER Price: $12.99 |
| 75 |
532196880 |
SEAL Price: $4.99 |
| 76 |
532196879 |
LEVER Price: $5.99 |
| 77 |
532196878 |
SCREW.LEVER. Price: $6.99 |
| 78 |
532196877 |
SPRING. Price: $4.99 |
