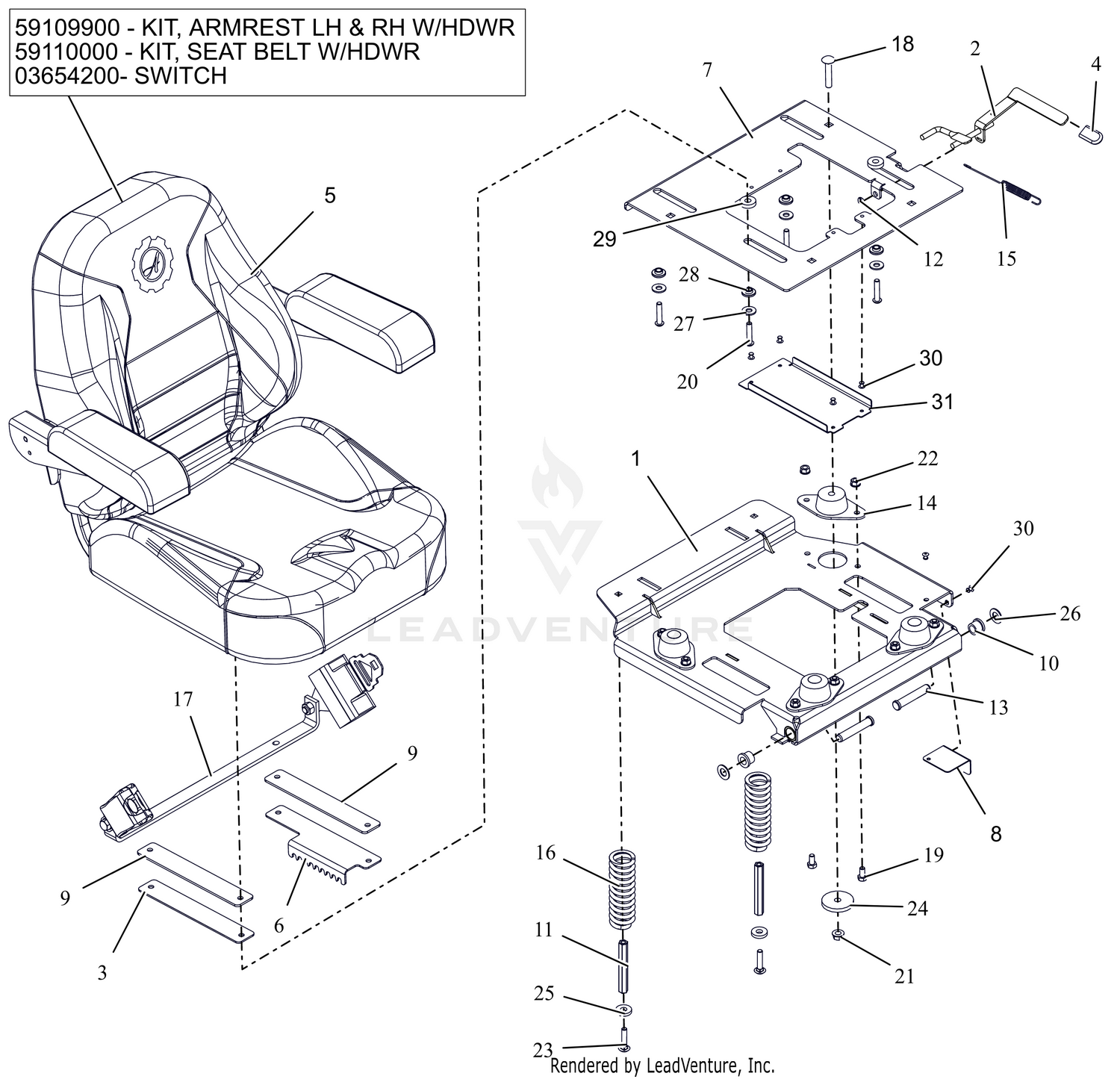

| Ref | Part Number | Description |
|---|
| 1 |
05265451 |
WLDMT, ISO MTG PLATE (BLACK) Price: $112.45 |
| 2 |
05015251 |
WLDMT, SEAT SLIDE LEVER Price: $19.45 |
| 3 |
04377051 |
PLATE, ADJUSTABLE SEAT SLIDE Price: $20.45 |
| 4 |
04396600 |
GRIP, SEAT LEVER, GREY Price: $2.45 |
| 5 |
05124700 |
SEAT, APEX Price: $438.95 |
| 6 |
05015151 |
PLATE, HD SEAT ADJUSTMENT Price: $15.45 |
| 7 |
05133559 |
PLATE, SEAT MOUNTING (ISO KIT) (ORANGE) Price: $56.45 |
| 8 |
05265551 |
GUARD, SEAT FAN (SH)(BLACK) Price: $18.45 |
| 9 |
05158051 |
SPACER, SEAT Price: $10.45 |
| 10 |
05500901 |
BSHG, FLG .516X.750X.625X.937 Price: $5.45 |
| 11 |
06500828 |
NUT, COUPLING 5/16X18 X 3.75 Price: $11.45 |
| 12 |
06514900 |
NUT-PUSH .312 Price: $0.45 |
| 13 |
06800202 |
PIN-CLIC .50X2.70X2.31 -ZCC Price: $7.45 |
| 14 |
07500237 |
MOUNT, FAIL-SAFE COMPRESSION Price: Call Us |
| 15 |
08300022 |
SG-TENS .06X.482X5.35 Price: $5.45 |
| 16 |
08300704 |
SPRING, COMPRESSION SEAT 224LB Price: $15.45 |
| 17 |
59110000 |
KIT-SEAT BELT REPLACE-05007300 Price: $125.95 |
| 18 |
06200323 |
BLT,RHSSN.375-16X2.00 G5 ZCC Price: $2.45 |
| 19 |
05901832 |
BLT, HEX .31-18X.625 G5 ZCC Price: $1.45 |
| 20 |
05901727 |
BLT,SHCS-BTN .31-18X1.50 ZCC Price: $3.95 |
| 21 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 22 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 23 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC Price: $1.45 |
| 24 |
06401212 |
WSHR-FL-STL 0.406X2X0.25 ZCC Price: $4.45 |
| 25 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC Price: $2.45 |
| 26 |
06401115 |
WSHR, FLT .531X1.00X.063 ZCC Price: $0.45 |
| 27 |
06401023 |
WSHR,FLT .375X.875X.083 ZCC Price: $1.45 |
| 28 |
05501127 |
BSHG-FLG .325X.499X.3X.875 Price: $0.95 |
| 29 |
06401125 |
WSHR, FLT .390X1.00X.250 ZCC Price: $2.45 |
| 30 |
06800120 |
RIVET, .1875 AL/AL .126-.250 Price: $1.45 |
