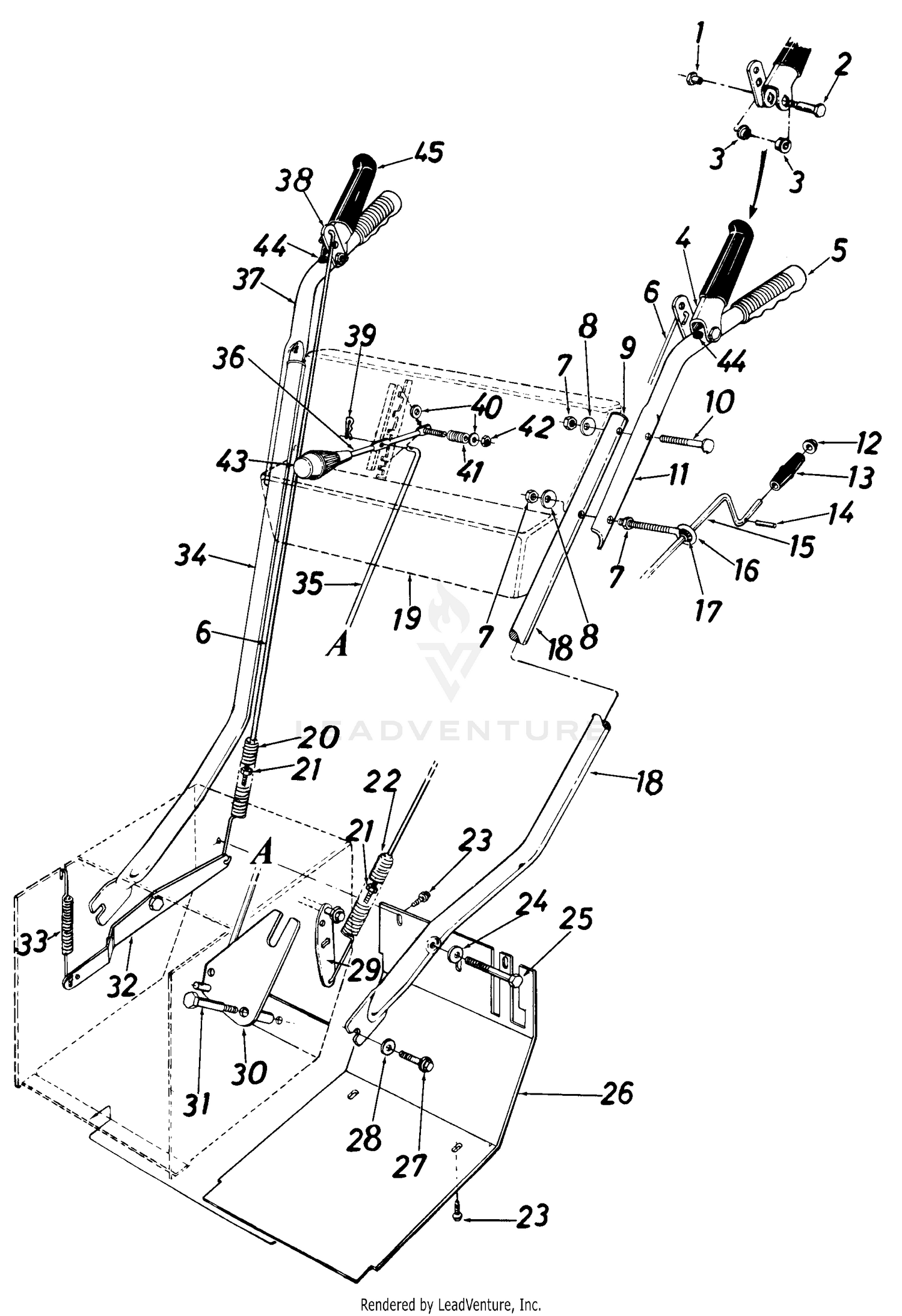

| Ref | Part Number | Description |
|---|
| 1 |
938-0561 |
SHOULDER NUT Not Available This part replaces 738-0561. Price: |
| 2 |
938-0560 |
Shoulder Bolt .374 Dia. x 1.53" Lg. This part replaces 738-0560. Price: $9.09 |
| 3 |
741-0402 |
BEARING-FL Not Available Price: |
| 4 |
05987 |
Clutch Grip Ass'y.-L.H. Price: Call Us |
| 5 |
720-0220 |
GRIP Not Available Price: |
| 6 |
747-0461 |
LOCK RODOU Not Available Price: |
| 7 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 8 |
736-0242 |
Bell-Wash. .34" I.D. x .88" O.D. Price: $3.75 |
| 9 |
731-0496 |
PLUG Not Available Price: |
| 10 |
710-0487 |
Curved Carriage Bolt 5/16-18 x 2.0" Lg. Price: $6.17 |
| 11 |
749-0595 |
HANDLE-FOLDING (LH) Not Available Price: |
| 12 |
726-0100 |
Push Nut 3/8" Rod Price: $3.75 |
| 13 |
720-0201A |
Knob 3/8" Rod Price: $9.62 |
| 14 |
915-0138 |
Rolled Pin, 1/8 x .63 This part replaces 715-0138. Price: $4.17 |
| 15 |
05980 |
CHUTE CRANK ASS'Y. Not Available Price: |
| 16 |
747-0416A |
EYE-BOLT Not Available Price: |
| 17 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 18 |
749-0405 |
Lower Handle-L.H. (Painted) Price: Call Us |
| 19 |
784-5451 |
HANDLE PANEL ASSEMBLY Not Available Price: |
| 20 |
732-0463A |
Spring, Extension, .75 O.D. x 5.0 Not Available This part replaces 732-0463. Price: |
| 21 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. Price: $3.38 |
| 22 |
732-0184 |
Extension Spring .75" O.D. x 5.0" Lg. Price: $23.36 |
| 23 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 24 |
736-0105 |
Bell-Wash. .40" I.D. x .88" O.D. Price: $3.96 |
| 25 |
710-3144 |
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) This part replaces 710-0427. Price: $4.02 |
| 26 |
784-5131 |
Frame Cover Price: Call Us |
| 27 |
710-0216 |
Hex Screw, 3/8-16 x.75 This part replaces 710-0555. Price: $3.93 |
| 28 |
736-0105 |
Bell-Wash. .40" I.D. x .88" O.D. Price: $3.96 |
| 29 |
05500 |
Drive Clutch Brkt. Ass'y. Price: Call Us |
| 30 |
784-5133 |
BRACKET ASSY Not Available Price: |
| 31 |
738-0129 |
Shld. Bolt .498 Dia. x 2.0" Lg. Price: $9.86 |
| 32 |
05518 |
AUGER CLUTCH BRACKET Not Available Price: |
| 33 |
932-0303 |
Spring .38" O.D. x 3.18" Lg. This part replaces 732-0303. Price: $8.93 |
| 34 |
749-0406 |
Lower Handle-R.H. (Painted) Price: Call Us |
| 35 |
747-0356A |
SHIFT ROD Not Available Price: |
| 36 |
747-0696 |
SHIFT HANDLE Not Available Price: |
| 37 |
749-0596 |
HANDLE-FOLDING-RH Not Available Price: |
| 38 |
05988 |
GRIP ASSEMBLY- Not Available Price: |
| 39 |
714-0104 |
Int. Cotter Pin 5/16" Dia. Price: $3.90 |
| 40 |
736-0264 |
Fl-Wash. .344" I.D. x .62" O.D. Price: $5.99 |
| 41 |
732-0193 |
Compression Spring Price: $4.11 |
| 42 |
712-0429 |
Hex Ins. L-Nut 5/16-18 Thd. Price: $3.56 |
| 43 |
720-0218 |
Knob Price: $17.27 |
| 44 |
735-0199A |
Bumper, Rubber This part replaces 726-0247. Price: $6.89 |
