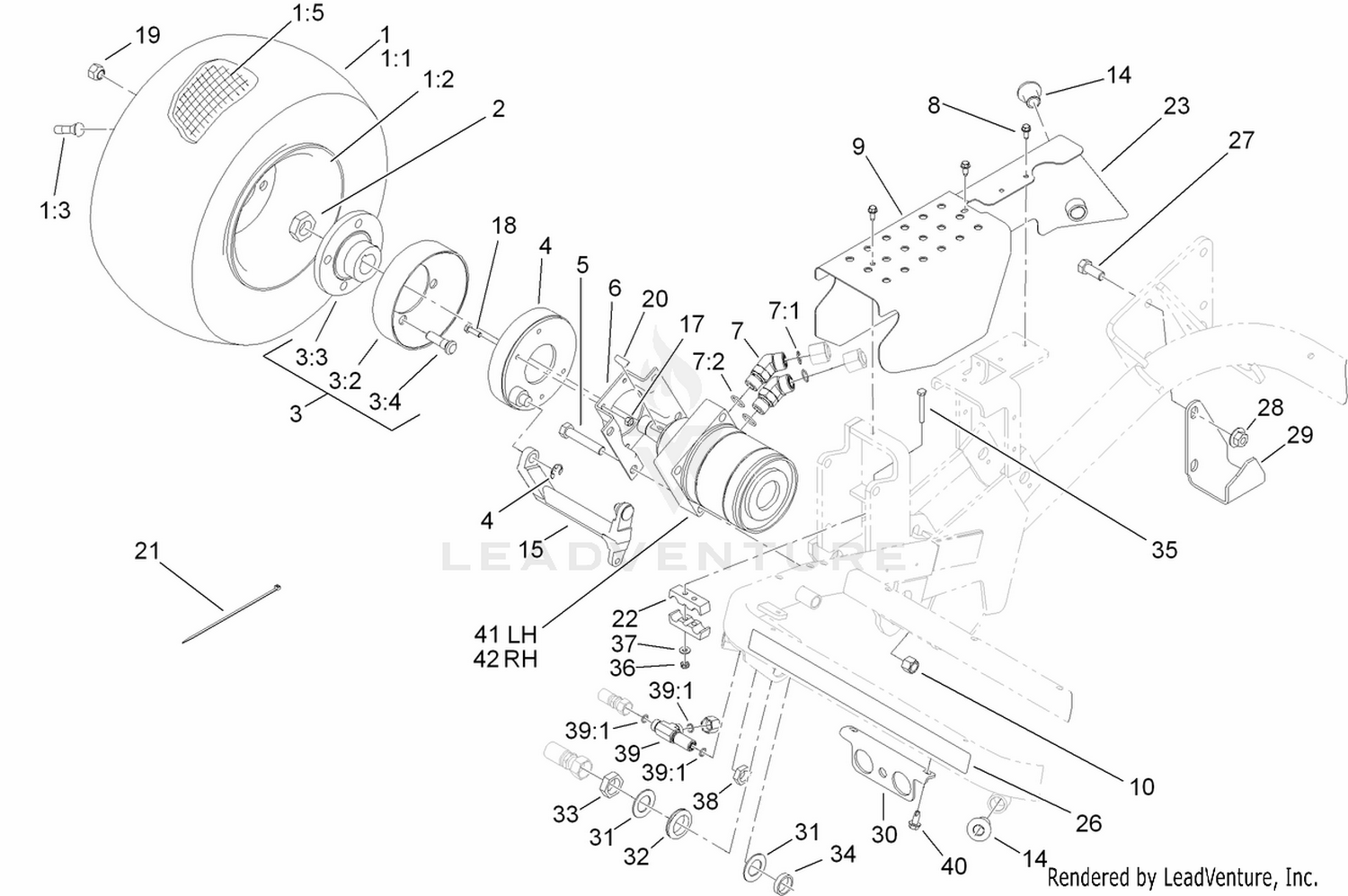

| Ref | Part Number | Description |
|---|
| 2 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 3 |
10-6821 |
BRAKE DRUM ASM Price: $170.90 |
| 4 |
104-7705 |
BRAKE ASM Price: $175.69 |
| 5 |
325-11 |
SCREW-HH Price: $1.93 |
| 6 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000-03. Price: $8.08 |
| 7 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 8 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 9 |
105-0433-01 |
CHANNEL-STEP, RH Price: $65.59 |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 14 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 15 |
93-2096 |
LEVER-BRAKE Price: $89.45 |
| 17 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 18 |
321-5 |
SCREW-HH Price: $0.22 |
| 19 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 20 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 21 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 22 |
93-2509 |
CLAMP-TUBE Price: $14.32 |
| 23 |
105-8282-01 |
SHIELD-SIDE Price: $77.28 |
| 26 |
115-5216 |
DECAL Price: $18.44 |
| 27 |
325-5 |
SCREW-HH Price: $1.20 |
| 28 |
32128-52 |
NUT-LOCK, FLANGE Price: $1.69 |
| 29 |
105-8263-01 |
BRACKET-ROPS Price: $37.76 |
| 30 |
107-2552-01 |
BRACKET-BULKHEAD Price: $21.40 |
| 31 |
69-9010 |
WASHER Price: $1.83 |
| 32 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 33 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 34 |
125-1984 |
SPACER This part replaces 69-9000. Price: $0.68 |
| 35 |
321-11 |
SCREW-HH Price: $0.36 |
| 36 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 37 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 38 |
340-70 |
NUT-LOCK Price: $2.10 |
| 39 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 40 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 41 |
110-4015 |
HYD MOTOR ASM (CCW) Price: $1,358.50 |
