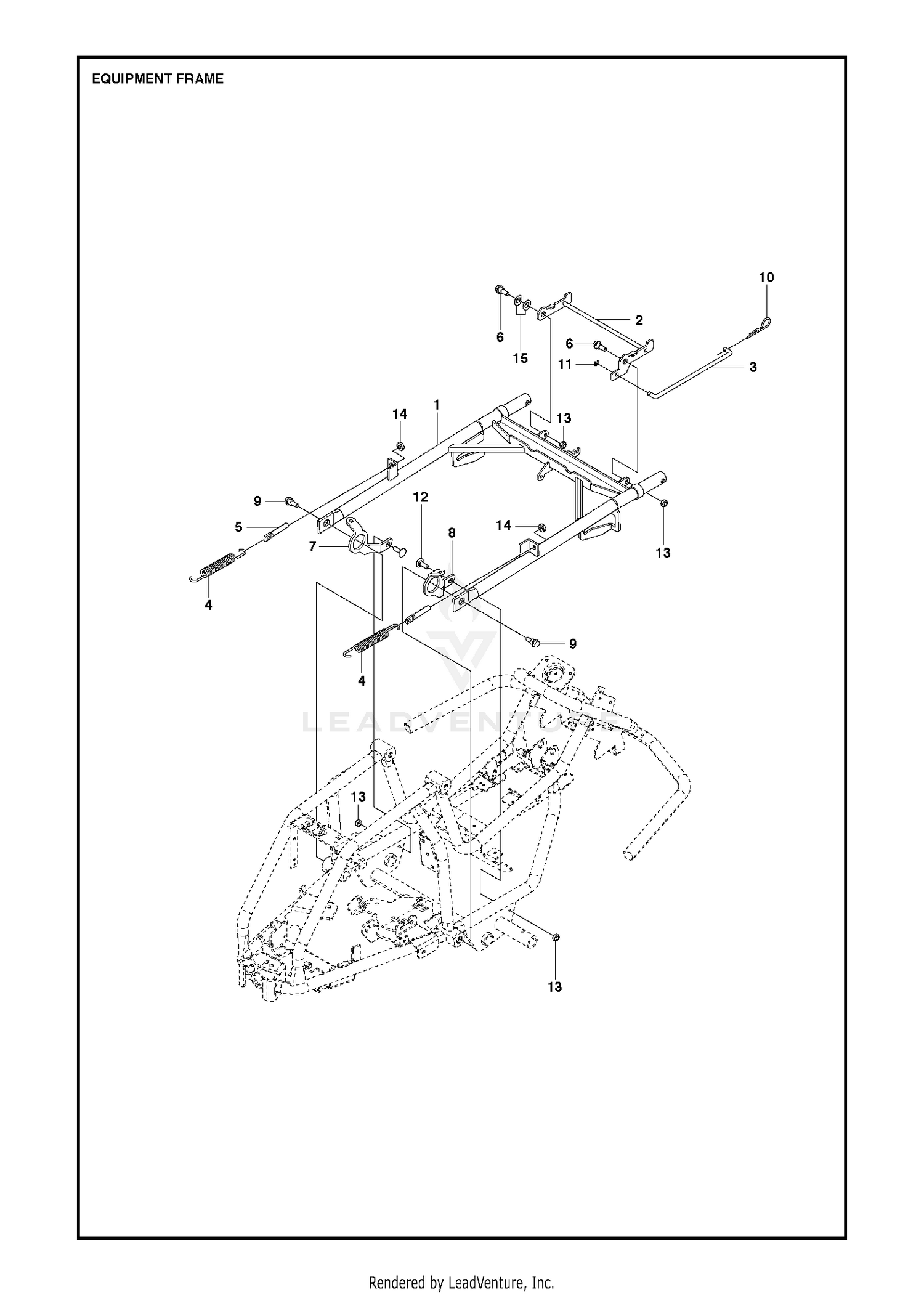

FRAME
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-4751 | CASE-AXLE Price: $382.85 |
| 1 | 580379401 | EQUIPMENT FRAME ASSY Price: $84.99 |
| 2 | 580902401 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 99-7535 | PLUG Price: $8.15 |
| 3 | 580902901 | ROD Price: $11.99 |
| 3 | 99-7536 | WASHER-SEAL Price: $2.58 |
| 4 | 580472301 | SPRING Price: $11.99 |
| 4 | 95-7527 | GEAR-BEVEL, 17 TOOTH Price: $125.54 |
| 5 | 580480601 | SCREW Price: $3.99 |
| 5 | 99-7532 | BEARING-ROLLER, TAPER Price: $45.81 |
| 6 | 100-2560 | COVER Price: $28.35 |
| 6 | 506895801 | BOLT Price: $6.99 |
| 7 | 106-1070 | O-RING Price: $9.07 |
| 7 | 580472101 | BRACKET Price: $6.99 |
| 8 | 580472102 | BRACKET Price: $6.99 |
| 8 | 99-7589 | PLUG Price: $3.73 |
| 9 | 506597401 | BOLT Price: $5.99 |
| 9 | 99-7590 | WASHER-SEAL Price: $2.94 |
| 10 | 100-2562 | BOLT Price: $2.79 |
| 11 | 106-1102 | BOLT-STOP Price: $22.71 |
| 11 | 735311020 | C-WASHER Price: $2.99 |
| 12 | 535423801 | BOLT Price: $4.99 |
| 13 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 14 | 731232001 | Nut Price: $3.99 |
| 15 | 506839401 | SPRINGWASHER Price: $3.99 |
