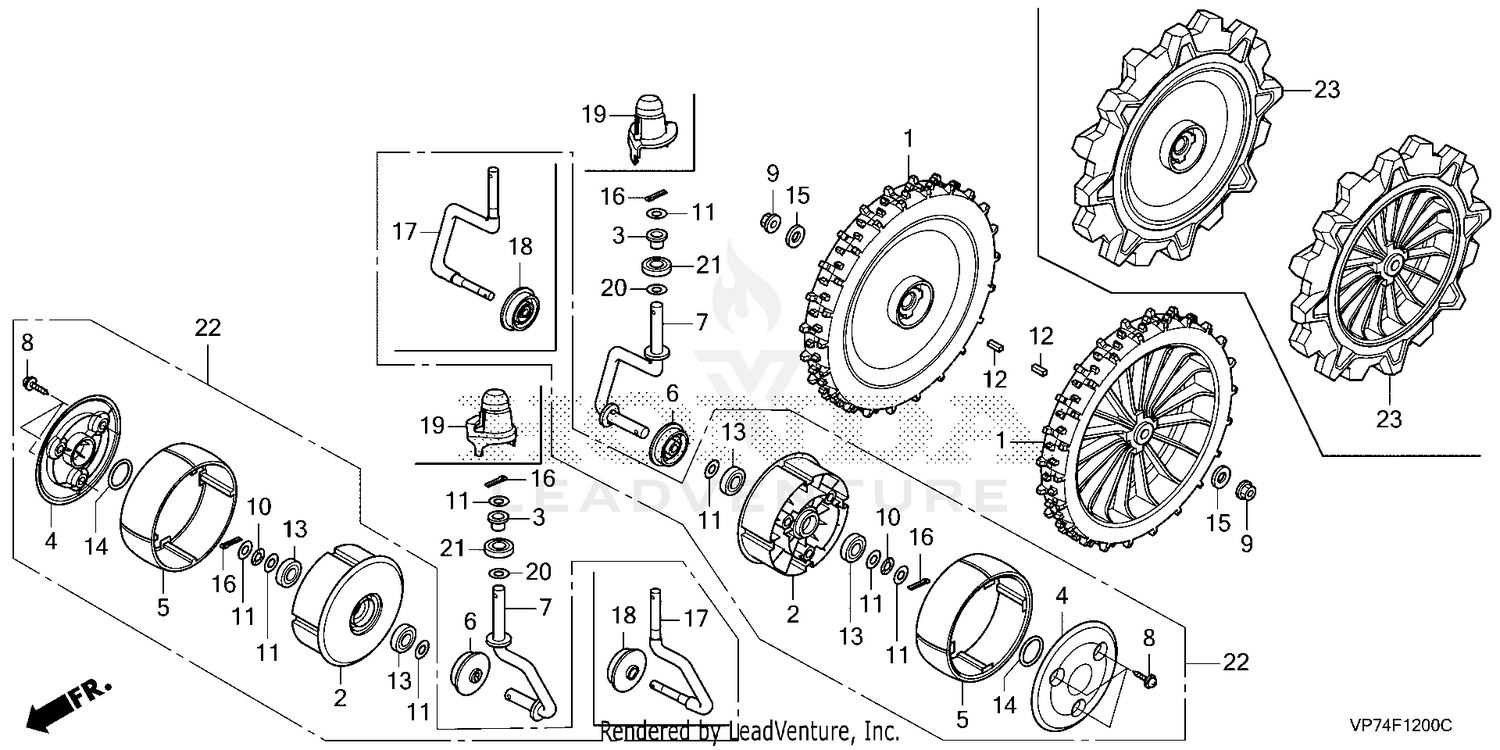

| Ref | Part Number | Description |
|---|
| 1 |
42710-VP7-A01 |
WHEEL COMP, RR. Price: $21.23 |
| 2 |
44713-VP9-000 |
CASTER, FR. Price: $7.00 |
| 3 |
44714-VP7-003 |
BUSH, FR. CASTER Price: $1.66 |
| 4 |
44717-VP7-000 |
COVER, CASTER Price: $3.68 |
| 5 |
44718-VP7-000 |
TIRE, CASTER Price: $7.26 |
| 8 |
90104-VP7-000 |
SCREW, TAPPING (5X16) Price: $0.48 |
| 9 |
90343-ZE6-000 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) Price: $2.24 |
| 10 |
90442-VP7-A00 |
WASHER, WAVE (6MM) Price: $0.92 |
| 11 |
90505-VP7-000 |
WASHER, THRUST (6.2X14X1) Price: $0.34 |
| 13 |
91054-VP7-004 |
BRG (6X17X6) This part replaces 91054-VP7-003. Price: $11.78 |
| 14 |
91352-VP9-000 |
O-RING, FR. CASTER Price: $6.80 |
| 15 |
94103-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) Price: $0.98 |
| 16 |
94201-16120 |
PIN, COTTER (1.6X12) Price: $1.30 |
