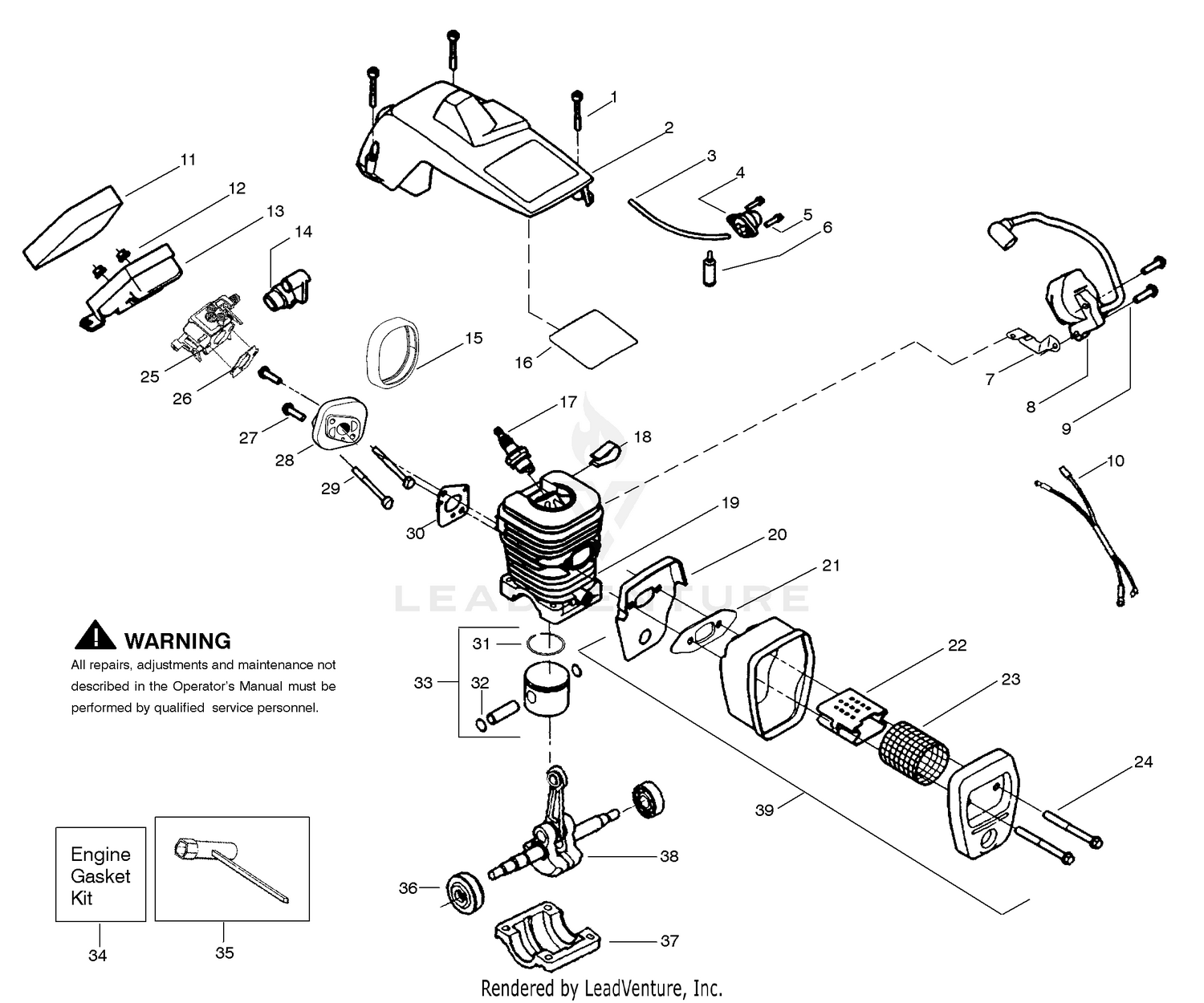

| Ref | Part Number | Description |
|---|
| 1 |
20-4290 |
MAT-DRAG Price: $973.11 |
| 1 |
530016153 |
Screw p Price: $1.99 |
| 2 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 3 |
32122-35 |
SCREW Price: $35.19 |
| 3 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 4 |
2820-2 |
CHAIN Price: $75.55 |
| 4 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 5 |
5-2942 |
SHACKLE Price: $16.99 |
| 5 |
530015780 |
Screw Price: $1.99 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 6 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
| 7 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 7 |
530047442 |
Strap-Ground Price: $1.99 |
| 8 |
28-0830-01 |
DRAG HOLDER ASM This part replaces 28-0830. Price: $244.89 |
| 8 |
530039198 |
Ignition Module Price: $29.99 |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
530052296 |
Assy-Wire Harness Price: $4.99 |
| 11 |
530037793 |
Foam-Air Filter Price: $1.99 |
| 12 |
530016101 |
Nut Price: $1.99 |
| 13 |
530057480 |
Assy-Air Box Price: $4.99 |
| 14 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 15 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 16 |
530055698 |
Reflector-Heat Price: $1.99 |
| 17 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 18 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 19 |
530012550 |
Cylinder Price: $17.99 |
| 20 |
530049870 |
Backplate-Muffler Price: $3.99 |
| 21 |
530069608 |
Gasket-Muffler(kit) Price: $5.99 |
| 22 |
530037813 |
Diffuser-Muffler Price: $1.99 |
| 23 |
530036103 |
Screen-Spark Price: Call Us |
| 24 |
530016132 |
Bolt-Muffler Price: $1.99 |
| 25 |
545081885 |
Kit-Carburetor (Walbro-WT-89) This part replaces 530071820. Price: $22.99 |
| 26 |
530069608 |
Gasket-Carb. (kit) Price: $5.99 |
| 27 |
530016386 |
Screw Price: $5.99 |
| 28 |
530049700 |
Carb. Adapter Price: $3.99 |
| 29 |
530016187 |
Screw Price: $1.99 |
| 30 |
530069608 |
Gasket- Adaptor(kit) Price: $5.99 |
| 31 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 32 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 35 |
530031163 |
Bar Wrench Price: $4.99 |
| 36 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 37 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 38 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
