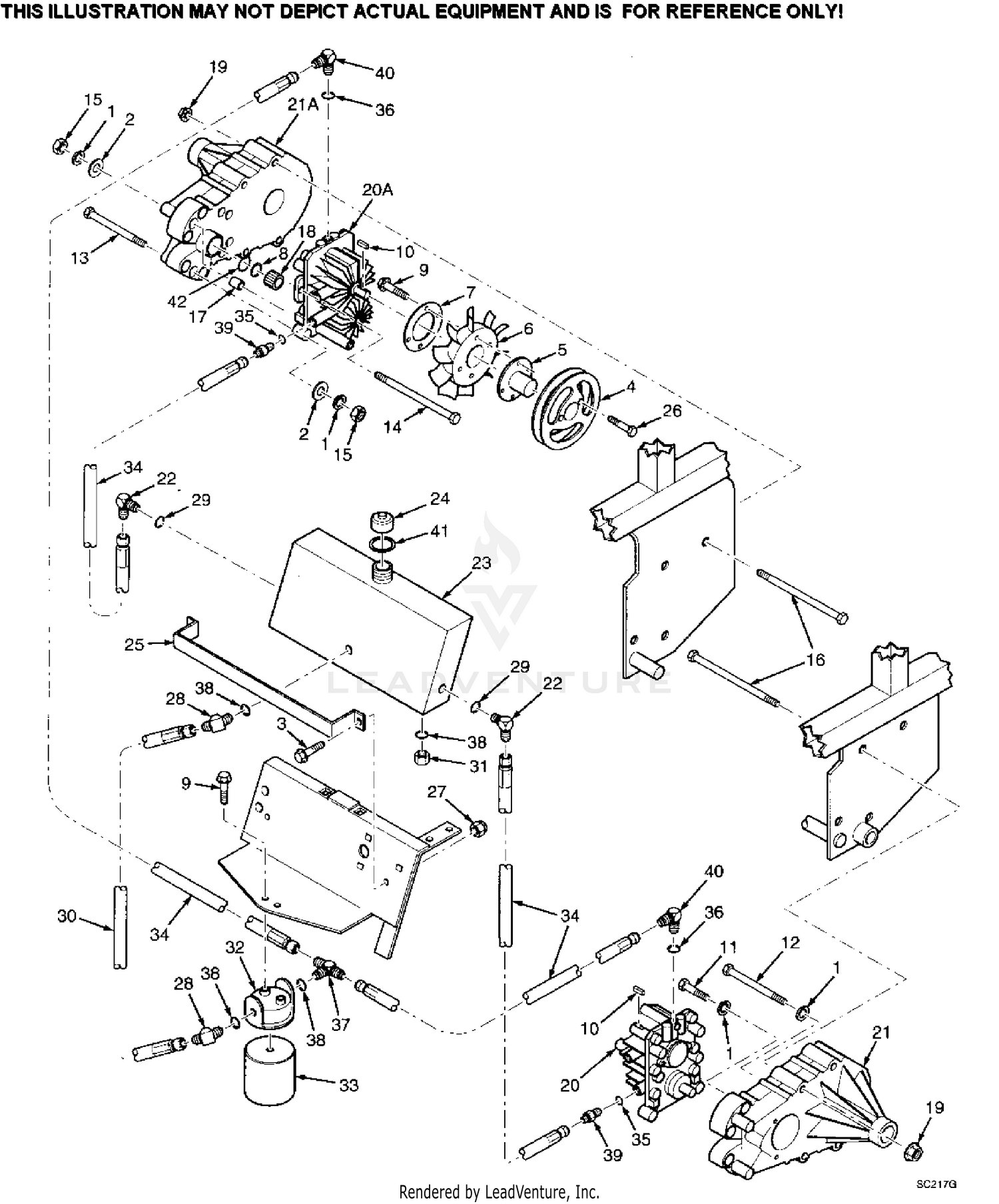

| Ref | Part Number | Description |
|---|
| 1 |
04030-03 |
LOCKWASHER, 5/16" Price: Call Us |
| 2 |
04040-04 |
FLATWASHER, 5/16"(.344 X .688 X .065) Price: Call Us |
| 3 |
04017-05 |
BOLT, SERRATED FLANGE HEX HEAD 1/4-20 X 3/4" Price: Call Us |
| 4 |
482648 |
Pulley, 5.95 Dia. Tapered Bore This part replaces 48790. Price: Call Us |
| 5 |
48791 |
TAPERED HUB, 15 MM BORE Price: Call Us |
| 6 |
482133 |
Fan, Cooling This part replaces 48789. Price: Call Us |
| 7 |
421209 |
WASHER, BACK-UP Price: Call Us |
| 8 |
04050-13 |
SNAP RING Price: Call Us |
| 9 |
04017-04 |
BOLT, SERRATED FLANGE HEX HEAD 1/4-20 X 1/2" Price: Call Us |
| 10 |
04063-14 |
KEY, 5 MM X 5 MM X 25 MM Price: Call Us |
| 11 |
04001-12 |
BOLT, HEX HEAD 5/16-18 X 1-3/4" Price: Call Us |
| 12 |
04001-96 |
BOLT, HEX HEAD 5/16-18 X 4-1/2" Price: Call Us |
| 13 |
04001-95 |
BOLT, HEX HEAD 5/16-18 X 5" Price: Call Us |
| 14 |
04001-94 |
BOLT, HEX HEAD 5/16-18 X 7-1/2" Price: Call Us |
| 15 |
04020-03 |
NUT, HEX 5/16-18 Price: Call Us |
| 16 |
04001-30 |
BOLT, HEX HEAD 3/8-16 X 4" Price: Call Us |
| 17 |
48878 |
SPACER Price: Call Us |
| 18 |
48875 |
GEAR Price: Call Us |
| 19 |
04019-04 |
NUT, SERRATED FLANGE HEX HEAD 3/8-16 Price: Call Us |
| 20 |
48784 |
PUMP, LH(INCLUDES SPACERS) Price: Call Us |
| 20A |
48785 |
PUMP, RH(INCLUDES SPACERS) Price: Call Us |
| 21 |
481097 |
AXLE, LH(INCLUDES BRAKE LEVER) Price: Call Us |
| 21A |
481098 |
AXLE, RH(INCLUDES BRAKE LEVER) Price: Call Us |
| 22 |
48350-09 |
ELBOW, 90 DEGREE 9/16-18 JIC TO 9/16-18 Price: Call Us |
| 23 |
48860 |
OIL TANK RESERVOIR Price: Call Us |
| 24 |
48894 |
CAP, OIL RESERVOIR Price: Call Us |
| 25 |
421208 |
STRAP, OIL RESERVOIR Price: Call Us |
| 26 |
04001-59 |
BOLT, HEX HEAD 1/4-20 X 1-1/4" Price: Call Us |
| 27 |
04021-08 |
NUT, ELASTIC STOP 1/4-20 Price: Call Us |
| 28 |
48485-01 |
ELBOW, 45 DEGREE 3/4-16 JIC TO 3/4-16 Price: Call Us |
| 30 |
482088 |
Hose Assembly, (Hydro Tank to Filter Base) This part replaces 48872. Price: Call Us |
| 31 |
48604-02 |
PLUG, 3/4-16 "O" RING Price: Call Us |
| 32 |
48462-02 |
HEAD, OIL FILTER Price: Call Us |
| 33 |
48462-01 |
OIL FILTER, SPECIAL Price: Call Us |
| 34 |
48871 |
HOSE ASSEMBLY Price: Call Us |
| 39 |
48572-02 |
TUBE UNION 3/4-16 JIC TO 7/8-14 "O" RING Price: Call Us |
| 40 |
48350-10 |
ELBOW, 90 DEGREE 9/16-18 JIC TO 7/16-20 Price: Call Us |
| 41 |
481090 |
GASKET, HYDRAULIC TANK CAP Price: Call Us |
