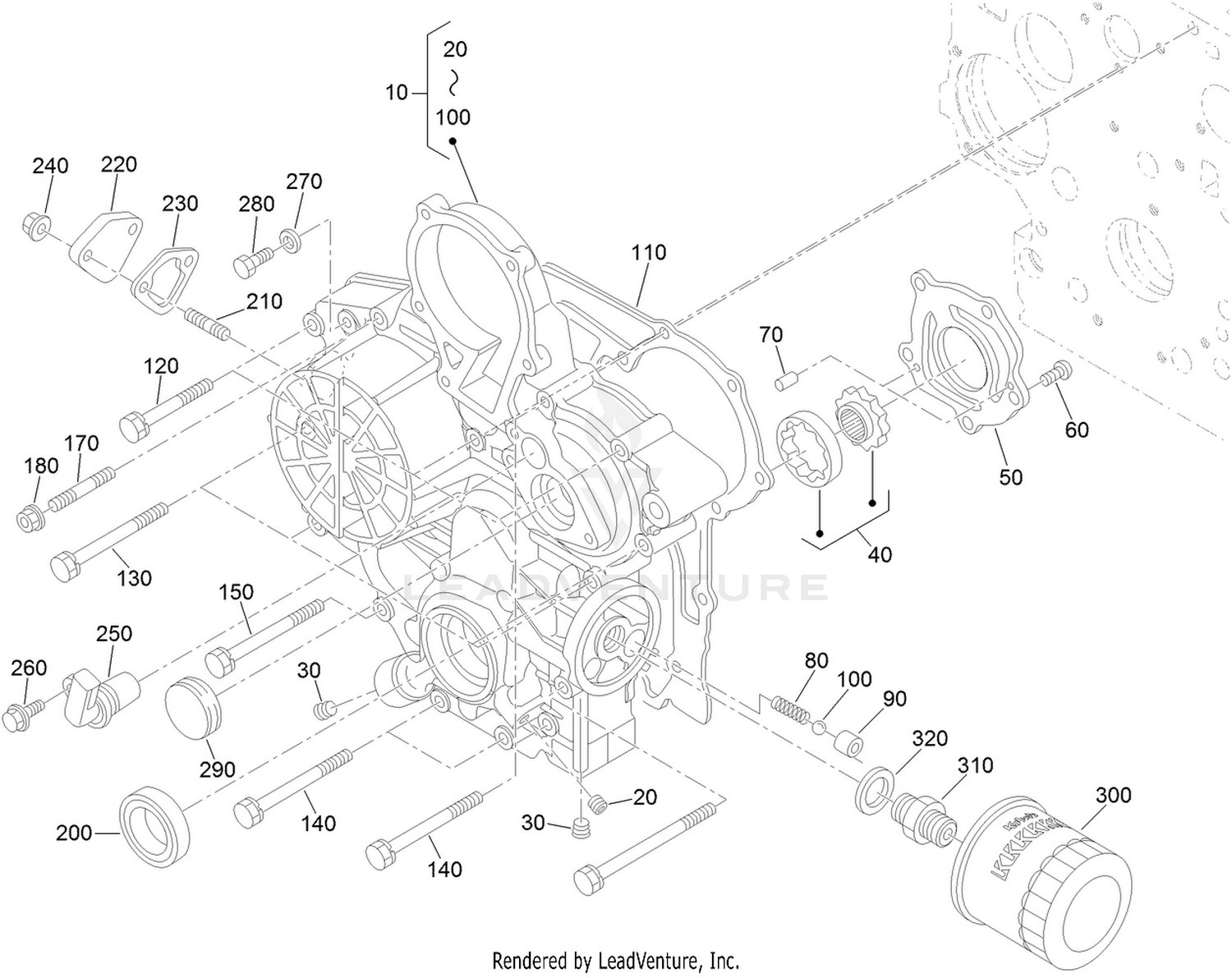

Gear Case and Oil Filter Cartridge Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 127-0453 | GEAR CASE ASM Price: $677.86 |
| 20 | 98-7487 | PLUG Price: $3.18 |
| 30 | 127-0425 | PLUG Price: $4.34 |
| 40 | 98-9540 | OIL PUMP ROTOR ASM Price: $271.67 |
| 50 | 107-9069 | COVER-PUMP, OIL Price: $27.77 |
| 60 | 107-9071 | SCREW Price: $0.36 |
| 70 | 107-9072 | PIN-STRAIGHT Price: $0.28 |
| 80 | 98-9544 | SPRING Price: $0.94 |
| 90 | 98-9543 | SEAT-VALVE Price: $26.61 |
| 100 | 98-9380 | BALL Price: $0.84 |
| 110 | 98-9633 | GASKET-CASE, GEAR Price: $30.19 |
| 120 | 100-1765 | BOLT Price: $1.59 |
| 130 | 105-3797 | BOLT Price: $1.40 |
| 140 | 98-9356 | BOLT Price: $2.06 |
| 150 | 107-9074 | BOLT Price: $1.43 |
| 170 | 105-3709 | STUD Price: $1.13 |
| 180 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 200 | 119-8038 | SEAL-OIL Price: $40.16 |
| 210 | 105-3710 | STUD Price: $1.16 |
| 220 | 99-3514 | COVER Price: $11.33 |
| 230 | 117-7562 | GASKET-PUMP, FUEL Price: $2.98 |
| 240 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 250 | 127-0504 | SENSOR-REVOLUTION Price: $258.27 |
| 260 | 99-8363 | BOLT-FLANGE Price: $1.66 |
| 270 | 98-7654 | GASKET Price: $8.84 |
| 280 | 127-0400 | BOLT-HEX Price: $0.83 |
| 290 | 99-3515 | PLUG-GEARCASE Price: $9.00 |
| 300 | 108-3841 | FILTER-OIL Price: $10.81 |
| 310 | 98-9388 | JOINT-PIPE Price: $31.66 |
