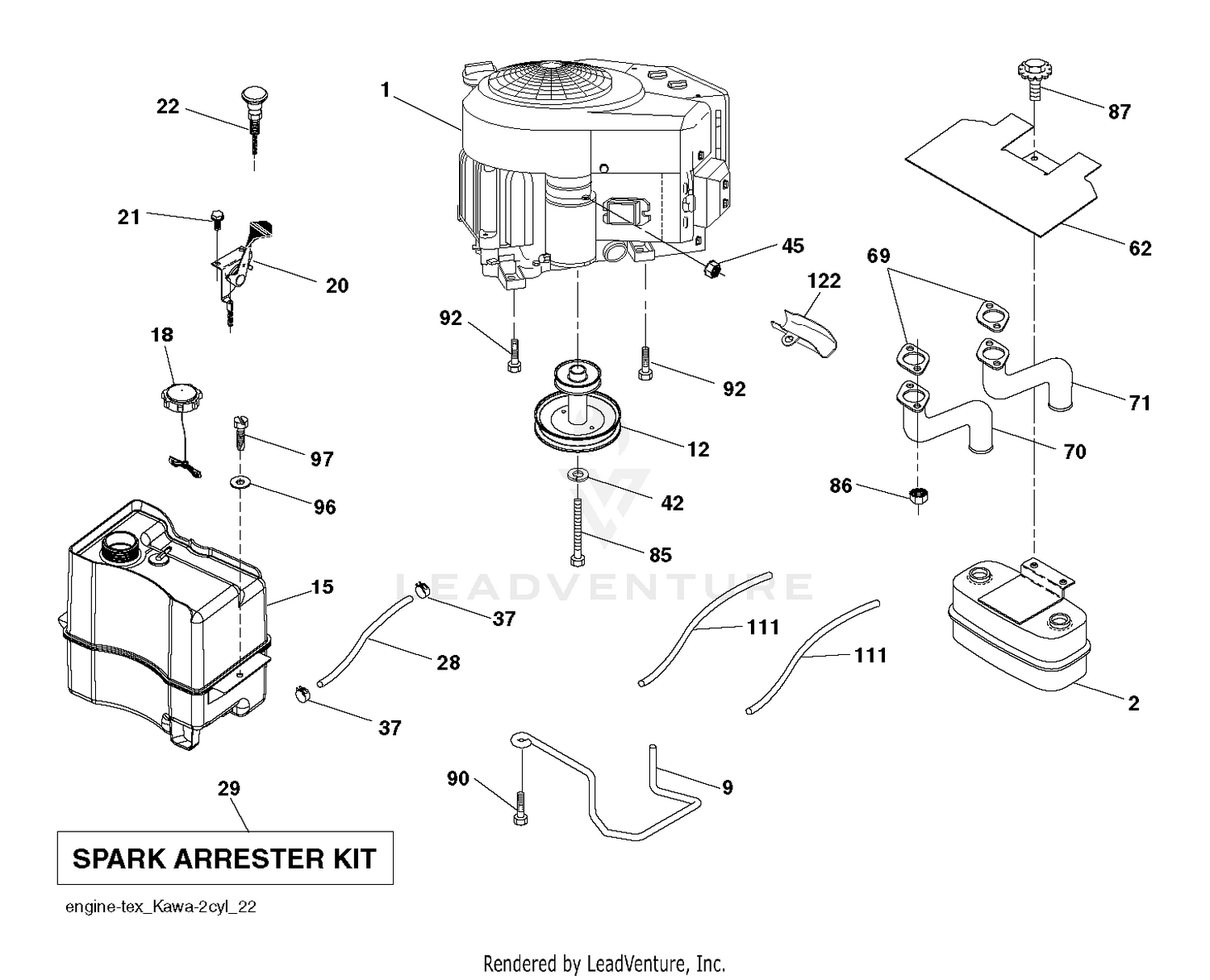

| Ref | Part Number | Description |
|---|
| 1 |
3219-14 |
NUT-HEX Price: $0.25 |
| 2 |
38-1670 |
MTNG BRKT W/38-1660 Price: $16.06 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 3 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 4 |
3290-134 |
SCREW Price: $0.27 |
| 5 |
38-1650 |
FUEL GAUGE Price: $185.83 |
| 6 |
44-2220 |
LEAD WIRE ASM Price: $9.24 |
| 7 |
233-35 |
KNOB Price: $8.06 |
| 8 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 9 |
218-533 |
LENS Price: $17.62 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
27-2360 |
SWITCH Price: $46.56 |
| 11 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 12 |
83-0820 |
GAUGE - AMMETER This part replaces 38-1660. Price: $76.09 |
| 13 |
218-539 |
DISCONTINUED Price: Call Us |
| 14 |
42-9190 |
GLOW LAMP (F/W & PPP) Price: $89.59 |
| 15 |
26-6750 |
ENG TEMP SWITCH GAGE Price: $332.79 |
| 15 |
597954502 |
FUEL TANKS This part replaces 532433007. Price: $109.99 |
| 16 |
43-3970-03 |
INSTRUMENT PANEL This part replaces 43-3970. Price: $111.29 |
| 17 |
218-473 |
BOOT-SWITCH Price: $17.61 |
| 18 |
26-6740 |
TEMP RESET RELAY Price: $165.84 |
| 18 |
532438596 |
CAP.2.25'.VENTED.TETHER .EPA Price: $29.99 |
| 19 |
6-1659 |
SWITCH & BOOT ASM Price: $78.15 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 21 |
43-4000 |
CIRCUIT BREAKER Price: $116.55 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
3250-17 |
SCREW-PPH Price: $1.76 |
| 23 |
43-3990 |
CONTROL-THROTTLE Price: $49.39 |
| 24 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 25 |
43-0410 |
REGULATOR (F/W & PPP) Price: $416.45 |
| 26 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 27 |
43-1880 |
CONT UNIT (F/W ENG&PPP) Price: $434.93 |
| 28 |
3290-424 |
SCREW-SHH Price: $2.54 |
| 28 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 30 |
321-4 |
SCREW-HH Price: $0.99 |
| 31 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 32 |
3217-6 |
NUT-HEX Price: $1.19 |
| 33 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 34 |
43-3820 |
BUZZER SPACER Price: $2.80 |
| 35 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 36 |
119-2865 |
KIT-GM300 BUZZER, LOW OIL PRESSURE This part replaces 22-7820. Price: $135.43 |
| 37 |
3217-26 |
NUT-HEX Price: $0.25 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
3255-5 |
WASHER-LOCK, EXT Price: $0.25 |
| 39 |
218-515 |
BRACKET Price: $12.11 |
| 40 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 41 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 42 |
63-7590 |
RELAY Price: $78.15 |
| 43 |
70-1190 |
DISCONTINUED Price: Call Us |
| 44 |
321-6 |
SCREW-HH Price: $0.25 |
| 45 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 70 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 This part replaces 532424766. Price: $24.99 |
| 71 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 This part replaces 532424765. Price: $24.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 86 |
583135201 |
ADAPTER.BLADE.21.FWGD This part replaces 532184632. Price: $12.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
