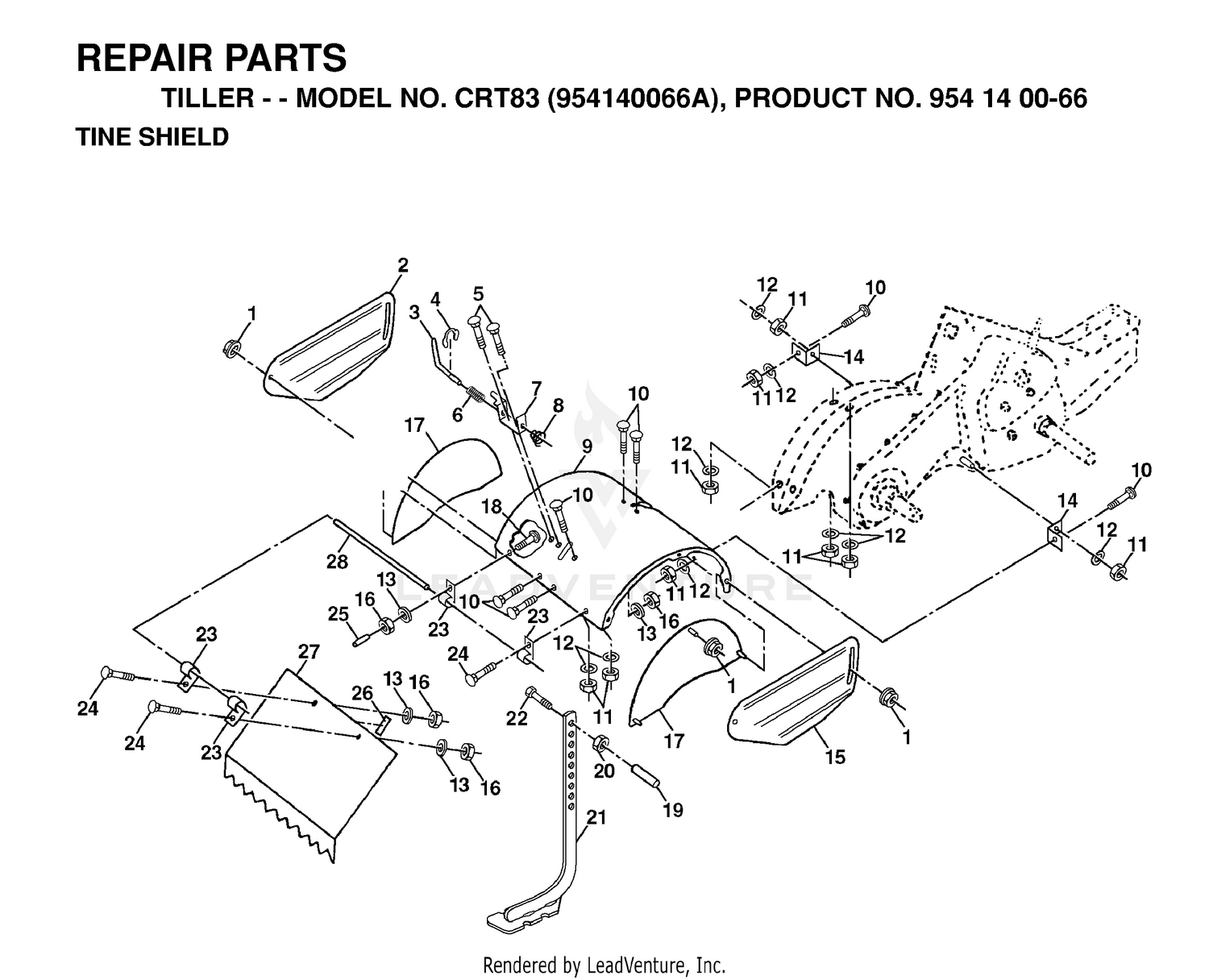

| Ref | Part Number | Description |
|---|
| 1 |
596040501 |
Hardware This part replaces 898000129. Price: $2.99 |
| 2 |
532161416 |
TINE SHIELD This part replaces 532163560. Price: $10.99 |
| 3 |
532008393 |
STAKE PIN TI Price: $19.99 |
| 4 |
812000036 |
KLIP RING TI Price: $2.99 |
| 5 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 6 |
532008394 |
SPRING TI Price: $7.99 |
| 7 |
532008392 |
BRACKET.LATCH.STAKE.3.20.BLACK Price: $4.99 |
| 8 |
532109230 |
SPRING CRT Price: $4.99 |
| 9 |
532145519 |
SHIELD, TINE Price: $53.71 |
| 10 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 11 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 12 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 13 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 14 |
532008386 |
BRACKET, TINE SHIELD Price: $7.99 |
| 15 |
532442965 |
SHIELD.SIDE.OUTER.RH.ORANGE This part replaces 532163561. Price: $19.99 |
| 16 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 17 |
532104084 |
SIDE SHIELD ASSY This part replaces 532145521. Price: $20.68 |
| 18 |
872040410 |
BOLT Price: $3.99 |
| 20 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 21 |
532138420 |
STAKE.ASM.DEPTH Price: $49.99 |
| 22 |
874930632 |
BOLT.375-16 Price: $5.99 |
| 23 |
532004440 |
HINGE CRT Price: $3.99 |
| 24 |
872140408 |
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 Price: $2.99 |
| 25 |
532006712 |
VINYL CAP This part replaces 532124717. Price: $3.99 |
| 26 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 27 |
532442990 |
SHIELD.PNT.LEVELING.ORANGE.668 This part replaces 532145520. Price: $44.99 |
| 28 |
532138609 |
PIN, HINGE Price: $4.99 |
