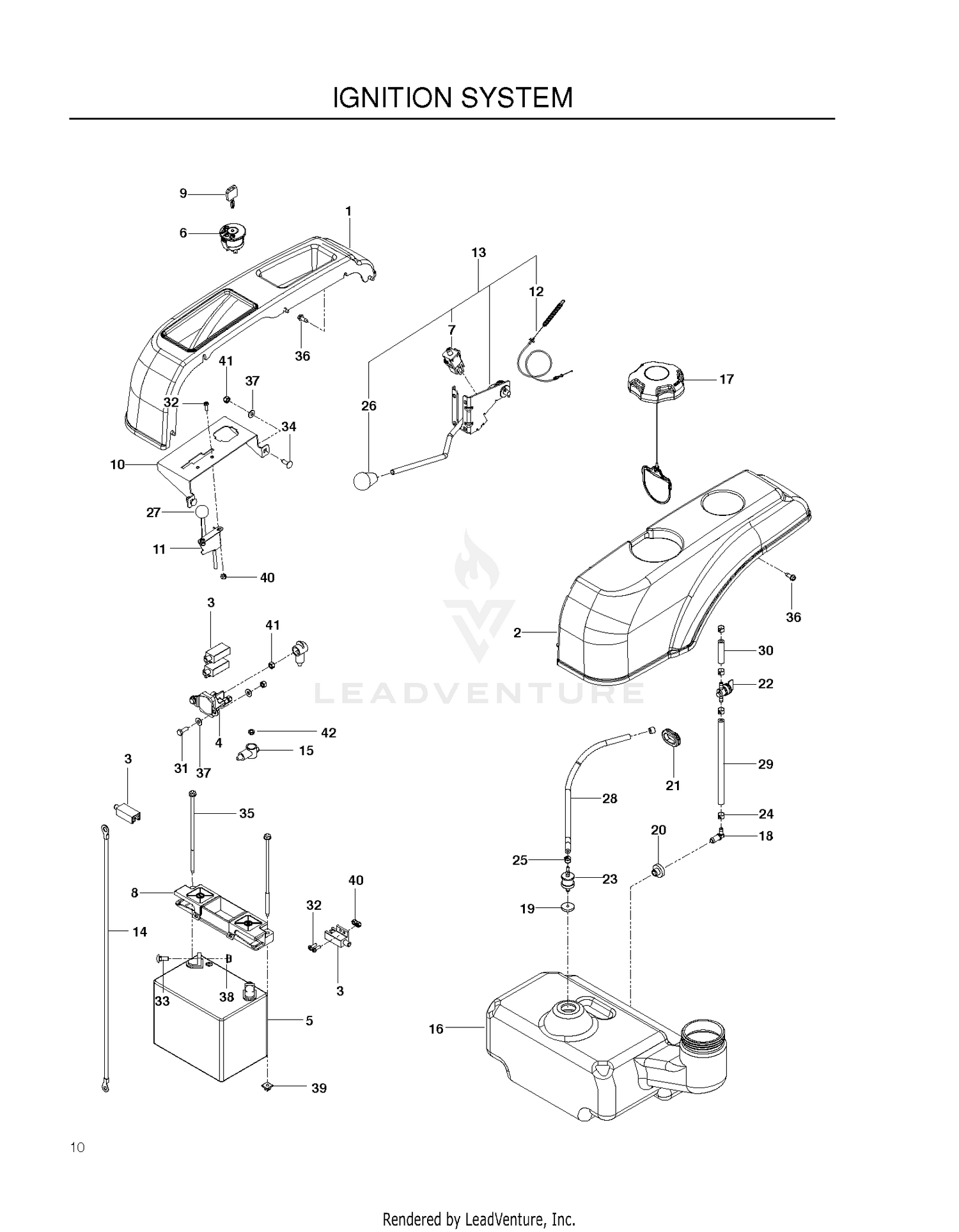

| Ref | Part Number | Description |
|---|
| 1 |
525594701 |
FENDER, RZ 30/38 RT Price: $22.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
525594702 |
FENDER, RZ 30/38 LT Price: $32.99 |
| 3 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 3 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 4 |
325-5 |
SCREW-HH Price: $1.20 |
| 4 |
539101714 |
SOLENOID Price: $22.99 |
| 5 |
3217-9 |
NUT-HH Price: $0.37 |
| 5 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 6 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 7 |
104-1411 |
GUARD-STABILIZER Price: $4.27 |
| 7 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 8 |
539107628 |
BATTERY HOLD DOWN Price: $4.99 |
| 8 |
99-6938-03 |
BRACKET-TIPPER Price: $41.21 |
| 9 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 9 |
539101350 |
TAPBOLT, 3/8C X 3 Price: $4.99 |
| 10 |
525598601 |
MOUNT, CONTROLS, BLK Price: $44.99 |
| 10 |
98-3900-03 |
DISCONTINUED Price: Call Us |
| 11 |
522730101 |
CABLE, THROTTLE Price: $24.99 |
| 11 |
75-5390 |
ROLLER Price: $56.69 |
| 12 |
532193235 |
CABLE.CLUTCH.38".SERVICE Price: $44.99 |
| 12 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 13 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 13 |
575661501 |
ASM, CLUTCH ENGAGE W/CABLE Price: $44.99 |
| 14 |
539110068 |
BATTERY CABLE, NEGATIVE Price: $7.99 |
| 15 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 16 |
576646403 |
FUEL TANK ASM SMALL This part replaces 576369501. Price: $169.99 |
| 16 |
98-3928 |
CLAMP-HOSE Price: $13.58 |
| 17 |
104-1471 |
Saddle Price: Call Us |
| 17 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 18 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 18 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 19 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 20 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 21 |
539105974 |
RUBBER GROMMET Price: $2.99 |
| 22 |
539916325 |
FUEL VALVE Price: $9.99 |
| 23 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 24 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 25 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 26 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 27 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 28 |
574521305 |
HOSE, FUEL, 3/16" X 20" Price: $9.99 |
| 29 |
539115736 |
HOSE 1/4 X 8 Price: $5.99 |
| 30 |
539121486 |
HOSE 1/4 X 2" Price: $2.99 |
| 31 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 32 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 33 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 34 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99 |
| 35 |
539107632 |
BOLT - 1/4-20 X 7.5 Price: $0.99 |
| 36 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 37 |
596582301 |
Washers This part replaces 539990055. Price: $2.99 |
| 38 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 39 |
539107629 |
PUSH NUT-NYLON Price: $2.99 |
| 40 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 41 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
