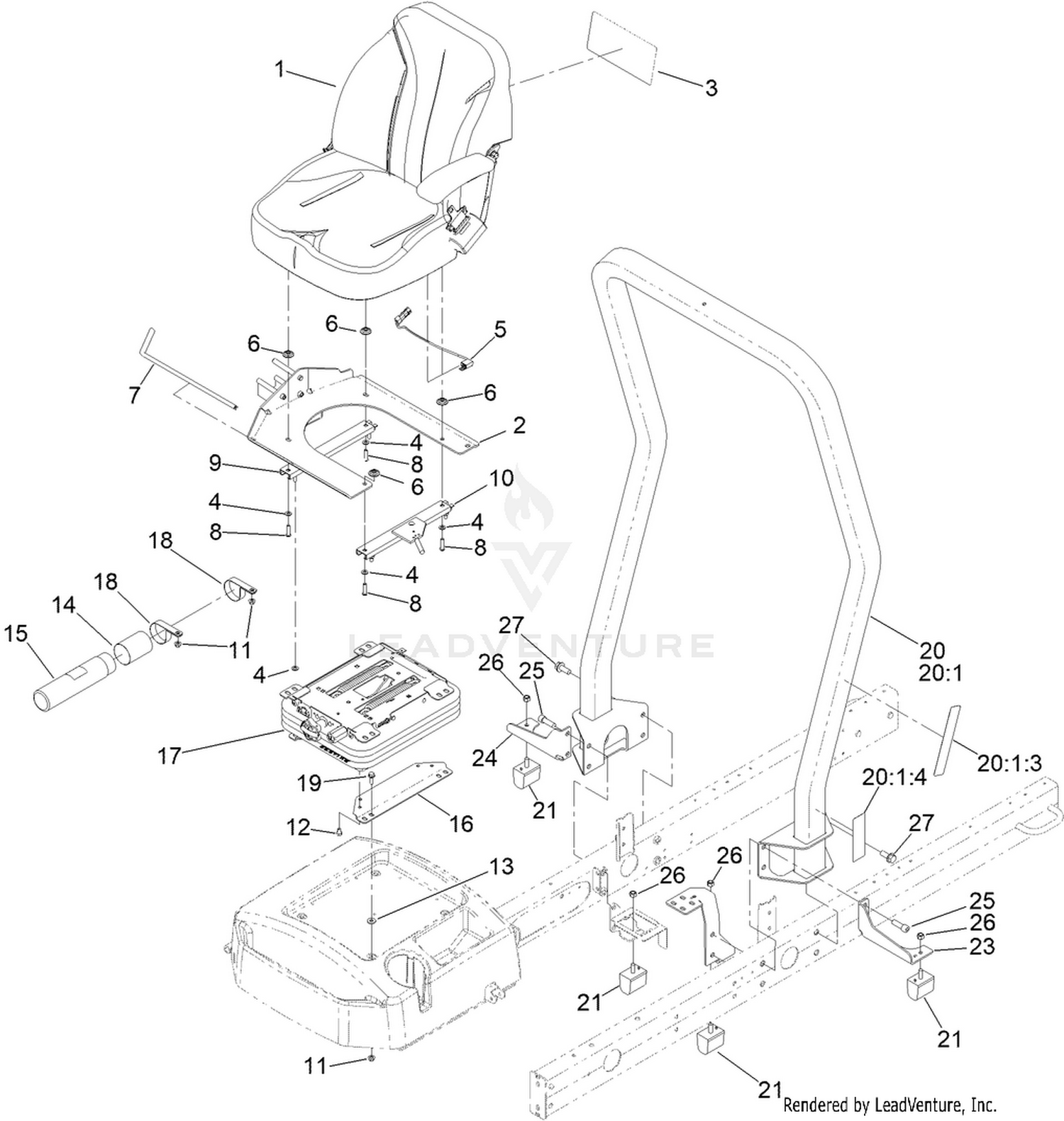

Seat Mount Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-2700 | SEAT ASM Price: $509.09 |
| 2 | 138-6985-03 | MOUNT-SEAT Price: $355.77 |
| 3 | 145-2573 | DECAL-SERVICE Price: $30.44 |
| 4 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 5 | 108-8657 | HARNESS-WIRE, SEAT Price: $19.96 |
| 6 | 136-9002 | SPACER-MOUNTING Price: $0.98 |
| 7 | 130-7100 | TRIM-SEATBASE Price: $14.07 |
| 8 | 3290-511 | SCREW-HSBH Price: $1.66 |
| 9 | 92-8990 | ADJUSTER-SLAVE Price: $54.82 |
| 10 | 92-8991 | ADJUSTER (W/LATCH) Price: $73.04 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 12 | 48-7680 | SCREW-HH Price: $0.61 |
| 13 | 71-9310 | SPACER Price: $2.29 |
| 14 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 15 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 16 | 108-6590-0P | BRACKET-SEAT, LOWER Price: $50.77 |
| 17 | 145-5295 | SUSPENSION ASM Price: $889.18 |
| 18 | 2412-133 | CLAMP-R Price: $3.19 |
| 19 | 3234-17 | SCREW-HHF Price: $0.72 |
| 20 | 136-7954 | ROPS ASM Price: $4,180.63 |
| 21 | 87-3470 | BUMPER Price: $18.89 |
| 23 | 117-0184-03 | BRACKET-BUMPER, LH Price: $54.36 |
| 24 | 117-0233-03 | BRACKET-BUMPER, RH Price: $51.03 |
| 25 | 3274-4 | SCREW-HSH Price: $2.17 |
| 26 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
