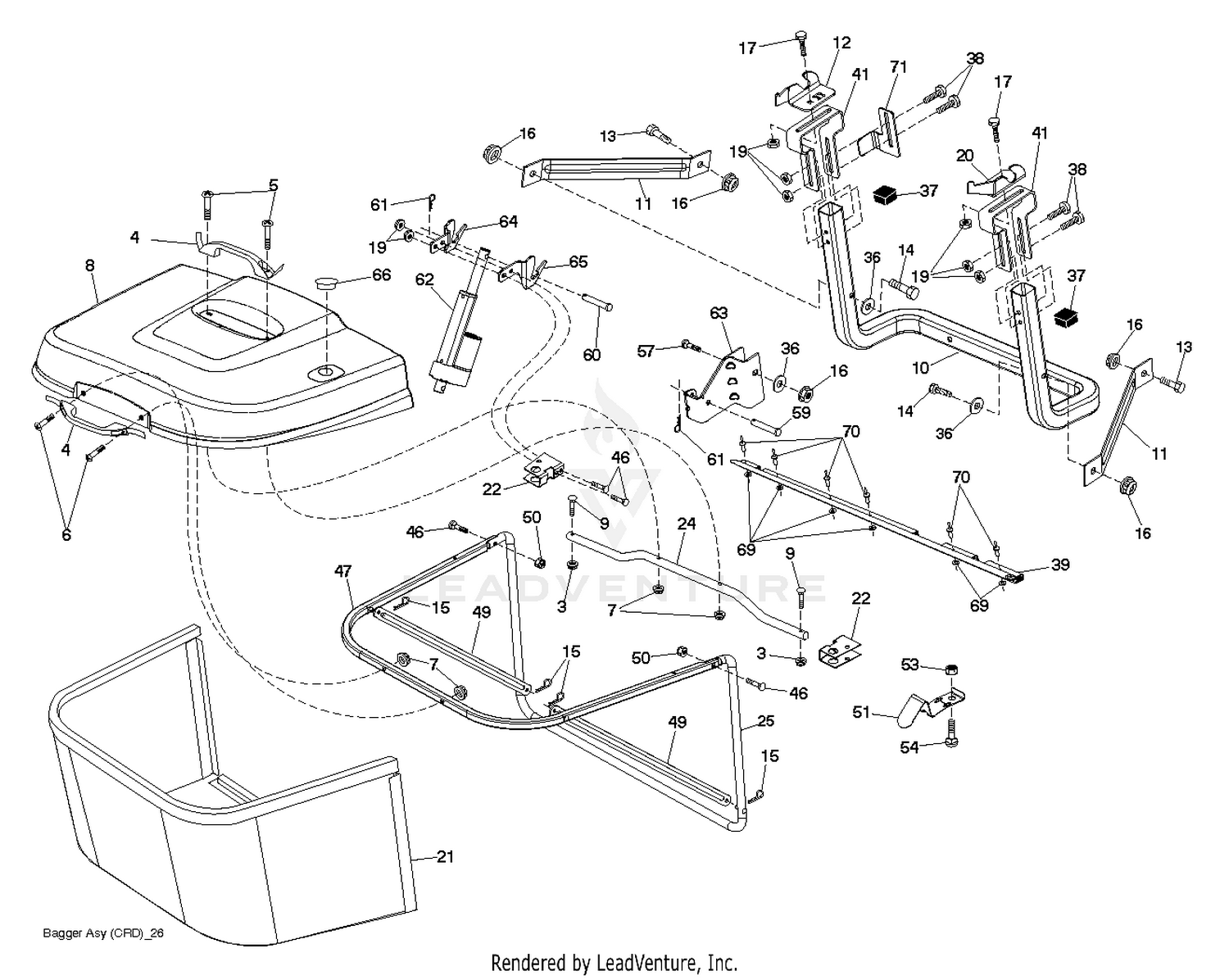

| Ref | Part Number | Description |
|---|
| 1 |
84-0940 |
FORK-BRAKE, RH Price: $74.96 |
| 2 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 3 |
76-9690-03 |
ROD-BRAKE This part replaces 76-9690. Price: $52.07 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 4 |
86-5840 |
PLATE-SPRING Price: $7.17 |
| 5 |
86-5830 |
SPRING-COMPRESSION Price: $19.73 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 6 |
66-6480 |
WASHER Price: $1.29 |
| 7 |
3220-3 |
NUT-HJ Price: $0.28 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532439519. Price: $199.99 |
| 9 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 9 |
872140418 |
BOLT Price: $7.99 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 11 |
84-0970 |
FORK-BRAKE, LH Price: $74.96 |
| 12 |
32120-19 |
E-RING Price: $2.27 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 13 |
874760612 |
BOLT Price: $3.99 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 14 |
76-8270 |
PIN-BRAKE Price: $11.07 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 15 |
76-4180 |
BOOT-ROD, BRAKE Price: $25.33 |
| 16 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 17 |
76-6610 |
DISCONTINUED Price: Call Us |
| 18 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 19 |
5-2512 |
BUSHING Price: $15.80 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
532406180 |
BAGGER.ASM.CRD.2007 Price: $129.99 |
| 22 |
532428236 |
BRACKET.BAGGER.SD.ELECTRIC.CRD Price: $9.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
583211601 |
TUBE.FRONT.BAGGER.CRD This part replaces 532193705. Price: $84.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD Price: $29.99 |
| 41 |
532432755 |
BRACKET.BAGGER.SD.ELECTRIC.CRD Price: $7.99 |
| 46 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 47 |
583211501 |
TUBE.UPPER.BAGGER.CRD This part replaces 532193704. Price: $279.99 |
| 49 |
583208201 |
BAR.SPREADER.BAGGER.CRD This part replaces 532193305. Price: $12.99 |
| 50 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 51 |
529846601 |
SERVICE KIT LATCH.SPRING.BAGGE This part replaces 532199903. Price: $1.99 |
| 53 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 54 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 57 |
872110622 |
BOLT This part replaces 872140622. Price: $3.99 |
| 59 |
532430422 |
Price: Call Us |
| 60 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 61 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 62 |
532428239 |
Price: Call Us |
| 63 |
532428238 |
Price: Call Us |
| 64 |
532438311 |
Price: Call Us |
| 65 |
532438312 |
Price: Call Us |
| 66 |
532430424 |
Price: Call Us |
| 69 |
575180801 |
MEGA-FIRE ELECTR This part replaces 532435611. Price: $2.99 |
| 70 |
583506001 |
RIVET.POP.125X.750 This part replaces 532435603. Price: $3.99 |
| 71 |
532438313 |
Price: Call Us |
