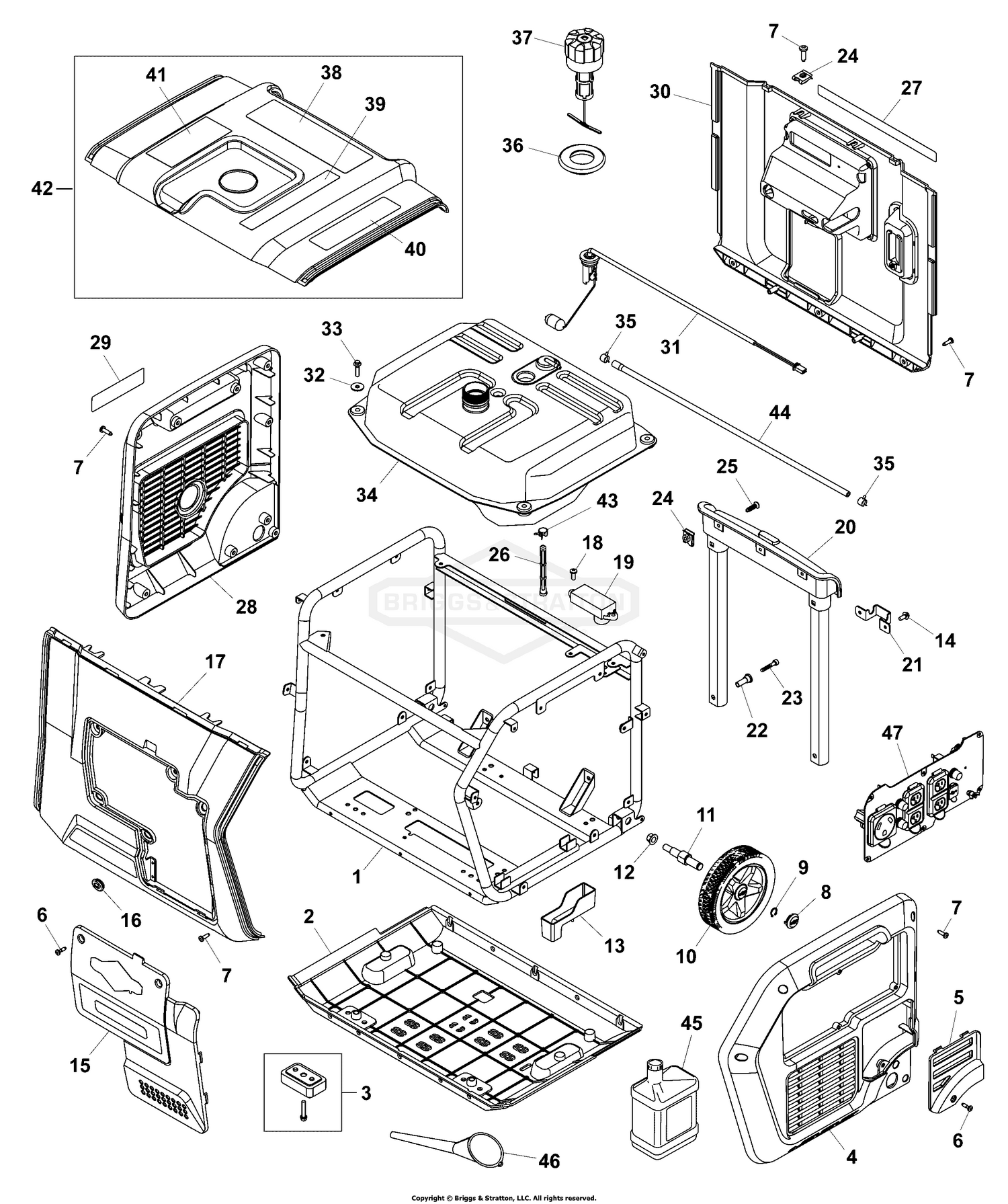

Main Unit P1
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 84005416 | CRADLE Price: $172.24 |
| 2 | 84002938 | PANEL-BOTTOM Price: $83.73 |
| 3 | 84002939 | FOOT-RUBBER Price: $7.73 |
| 4 | 84002911 | PANEL-SIDE Price: $87.32 |
| 5 | 84002974 | PANEL-BATTERY Price: $5.66 |
| 6 | 84002976 | SCREW Price: $2.94 |
| 7 | 84002910 | SCREW Price: $3.28 |
| 8 | 706065 | HUBCAP Price: $4.98 |
| 9 | 771593 | E-RING Price: $3.39 |
| 11 | 84002909 | AXLE Price: $11.65 |
| 12 | 709938 | NUT-M10 FLANGE LOCK Price: $5.82 |
| 13 | 84002954 | TRAP-DRAIN Price: $6.46 |
| 14 | 807084 | SCREW This part replaces 706865. Price: $2.92 |
| 15 | 84002912 | PANEL-ACCESS Price: $48.76 |
| 16 | 84002917 | GROMMET Price: $3.17 |
| 17 | 84002916 | PANEL-BACK Price: $87.32 |
| 18 | 91526GS | MACHINE SCREW, Phllps Pn Hd Price: $3.09 |
| 19 | 84002951 | CONTROLLER-IGNITION Price: $36.85 |
| 20 | 84002960 | ASSY-HANDLE Price: $192.80 |
| 21 | 84002968 | BRACKET Price: $5.50 |
| 22 | 84002969 | BUSHING Price: $5.50 |
| 23 | 191364GS | SCREW Price: Call Us |
| 24 | 84002982 | NUT-SPECIAL Price: $2.96 |
| 25 | 84002961 | SCREW Price: $2.22 |
| 26 | 707168 | FILTER-FUEL TANK Price: $3.85 |
| 27 | 84005327 | DECAL Price: Call Us |
| 29 | 771821 | DECAL Price: $3.59 |
| 31 | 84002946 | GAUGE-FUEL Price: $26.49 |
| 32 | 316506GS | WASHER-FLAT Price: Call Us |
| 33 | 590644 | SCREW This part replaces 706866. Price: $3.36 |
| 35 | 48031GGS | Clamp, Hose band Price: $3.06 |
| 36 | 84002943 | GROMMET-FUEL Price: $5.82 |
| 37 | 84002942 | CAP-FUEL Price: $21.08 |
| 38 | 84005330 | DECAL Price: Call Us |
| 39 | 84005329 | DECAL Price: Call Us |
| 40 | 84005328 | DECAL Price: Call Us |
| 41 | 84003222 | DECAL Price: $7.62 |
| 42 | 84005419 | PANEL-TOP Price: $18.97 |
| 43 | 84002949 | CLAMP Price: $2.96 |
| 44 | 84002948 | HOSE, VAPOR Price: $9.95 |
| 45 | 100005 | OIL-4 CYCLE 30W 18OZ. Price: $5.50 |
| 46 | 706357 | FUNNEL Price: $30.04 |
