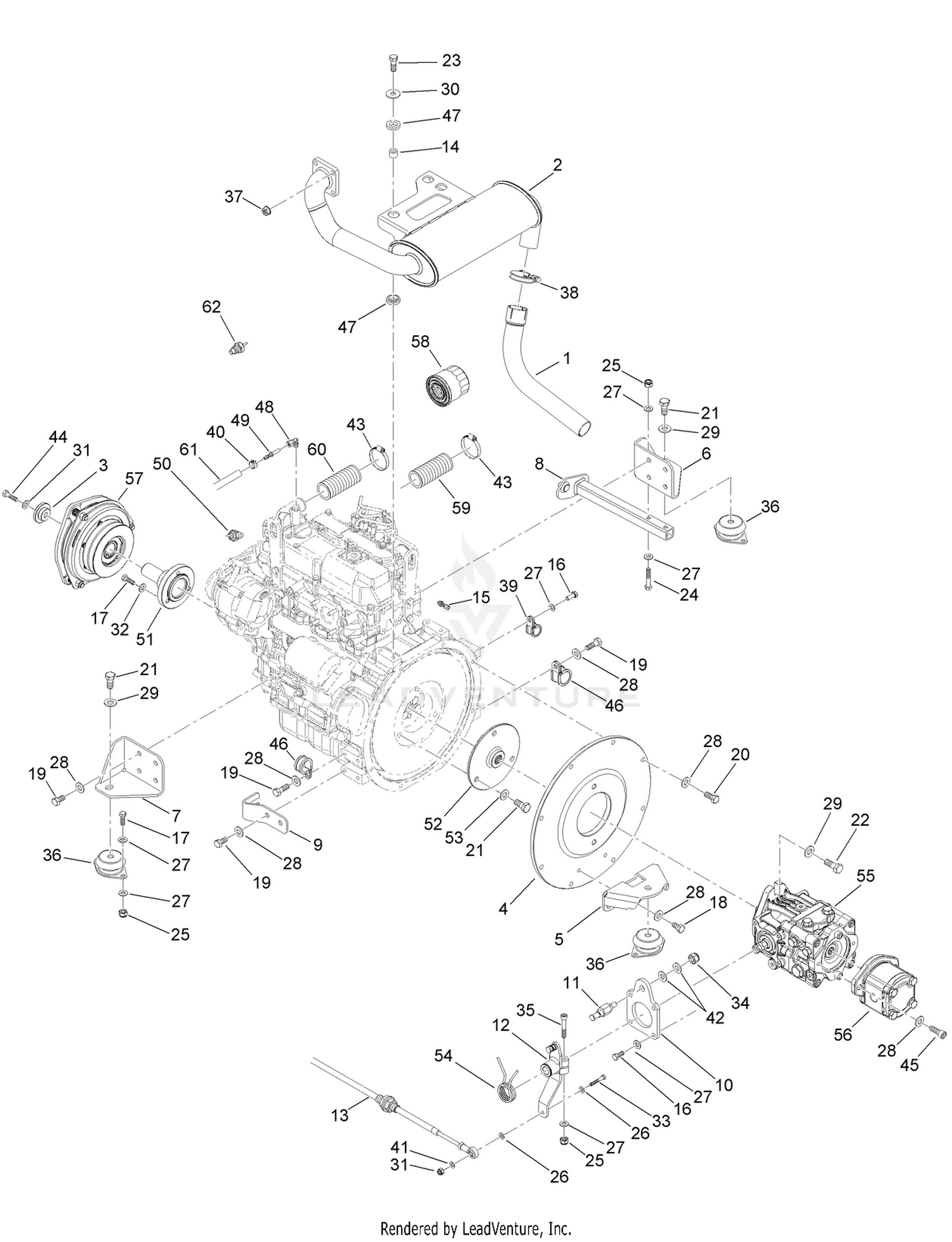

Engine, Pump and Friction Assembly
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0781 | PIPE-EXHAUST Price: $67.69 |
| 2 | 134-0785 | MUFFLER Price: $324.06 |
| 3 | 134-0819 | BUSHING Price: $12.38 |
| 4 | 134-0821 | FLANGE Price: $245.56 |
| 5 | 134-0822 | SUPPORT-ENGINE Price: $23.29 |
| 6 | 134-0823 | SUPPORT-ENGINE Price: $24.04 |
| 7 | 134-0824 | SUPPORT-ENGINE Price: $23.72 |
| 8 | 134-0830 | STOP-CLUTCH Price: $37.25 |
| 9 | 134-0844 | SUPPORT Price: $7.48 |
| 10 | 134-0847 | BRACKET Price: $8.48 |
| 11 | 134-0848 | SHAFT-NEUTRAL, HYDROSTAT Price: $15.13 |
| 12 | 134-0849 | LEVER-FORWARD, PEDAL Price: $32.97 |
| 13 | 134-0854 | CABLE-FORWARD Price: $174.53 |
| 14 | 134-0862 | SPACER Price: $7.66 |
| 15 | 134-0867 | ADJUSTER Price: $2.53 |
| 16 | 134-1011 | SCREW Price: $0.32 |
| 17 | 134-1015 | SCREW Price: $0.46 |
| 18 | 134-1016 | SCREW Price: $0.70 |
| 19 | 134-1017 | SCREW Price: $0.74 |
| 20 | 134-1018 | SCREW Price: $0.78 |
| 21 | 134-1020 | SCREW Price: $1.21 |
| 22 | 134-1021 | SCREW Price: $1.21 |
| 23 | 134-1023 | SCREW Price: $0.70 |
| 24 | 134-1029 | SCREW Price: $0.81 |
| 25 | 134-1038 | NUT Price: $0.32 |
| 26 | 134-1044 | WASHER Price: $0.25 |
| 27 | 134-1045 | WASHER Price: $0.25 |
| 28 | 134-1046 | WASHER Price: $0.25 |
| 29 | 134-1047 | WASHER Price: $0.25 |
| 30 | 134-1048 | WASHER Price: $0.36 |
| 31 | 134-1051 | WASHER Price: $0.32 |
| 32 | 134-1054 | WASHER Price: $0.32 |
| 33 | 134-1069 | SCREW Price: $0.32 |
| 34 | 134-1079 | NUT Price: $0.42 |
| 35 | 134-1120 | SCREW Price: $0.99 |
| 36 | 134-1157 | SHOCK ABSORBER Price: $58.36 |
| 37 | 134-1166 | NUT Price: $0.61 |
| 38 | 134-1195 | CLAMP Price: $11.64 |
| 39 | 134-1197 | CLAMP Price: $4.87 |
| 40 | 134-1201 | CLAMP Price: $2.08 |
| 41 | 134-1234 | WASHER Price: $0.25 |
| 42 | 134-1237 | WASHER-BELLEVILLE Price: $0.70 |
| 43 | 134-1277 | CLAMP Price: $4.17 |
| 44 | 134-1301 | SCREW Price: $1.45 |
| 45 | 134-1306 | SCREW Price: $1.49 |
| 46 | 134-1321 | CLAMP Price: $12.12 |
| 47 | 134-1325 | SHOCK ABSORBER Price: $9.89 |
| 48 | 134-1333 | ADAPTOR-90 DEG Price: $6.27 |
| 49 | 134-1334 | FITTING Price: $3.49 |
| 50 | 134-6960 | SENSOR-TEMPERATURE This part replaces 134-3075. Price: $121.39 |
| 51 | 134-0629 | SHAFT-DRIVE Price: $72.35 |
| 52 | 134-0633 | JOINT Price: $75.43 |
| 53 | 134-0591 | WASHER Price: $0.36 |
| 54 | 134-0638 | SPRING-RETURN Price: $21.18 |
| 55 | 134-0580 | PUMP-DRIVE Price: $2,205.38 |
| 56 | 134-0583 | PUMP-GEAR, HYDRAULIC Price: $289.96 |
| 57 | 134-0578 | CLUTCH Price: $688.04 |
| 58 | 134-1208 | FILTER-OIL, ENGINE Price: $12.31 |
| 59 | 134-2977 | PIPE Price: $91.70 |
| 60 | 134-2976 | PIPE Price: $61.79 |
| 61 | 134-2978 | PIPE Price: $8.48 |
