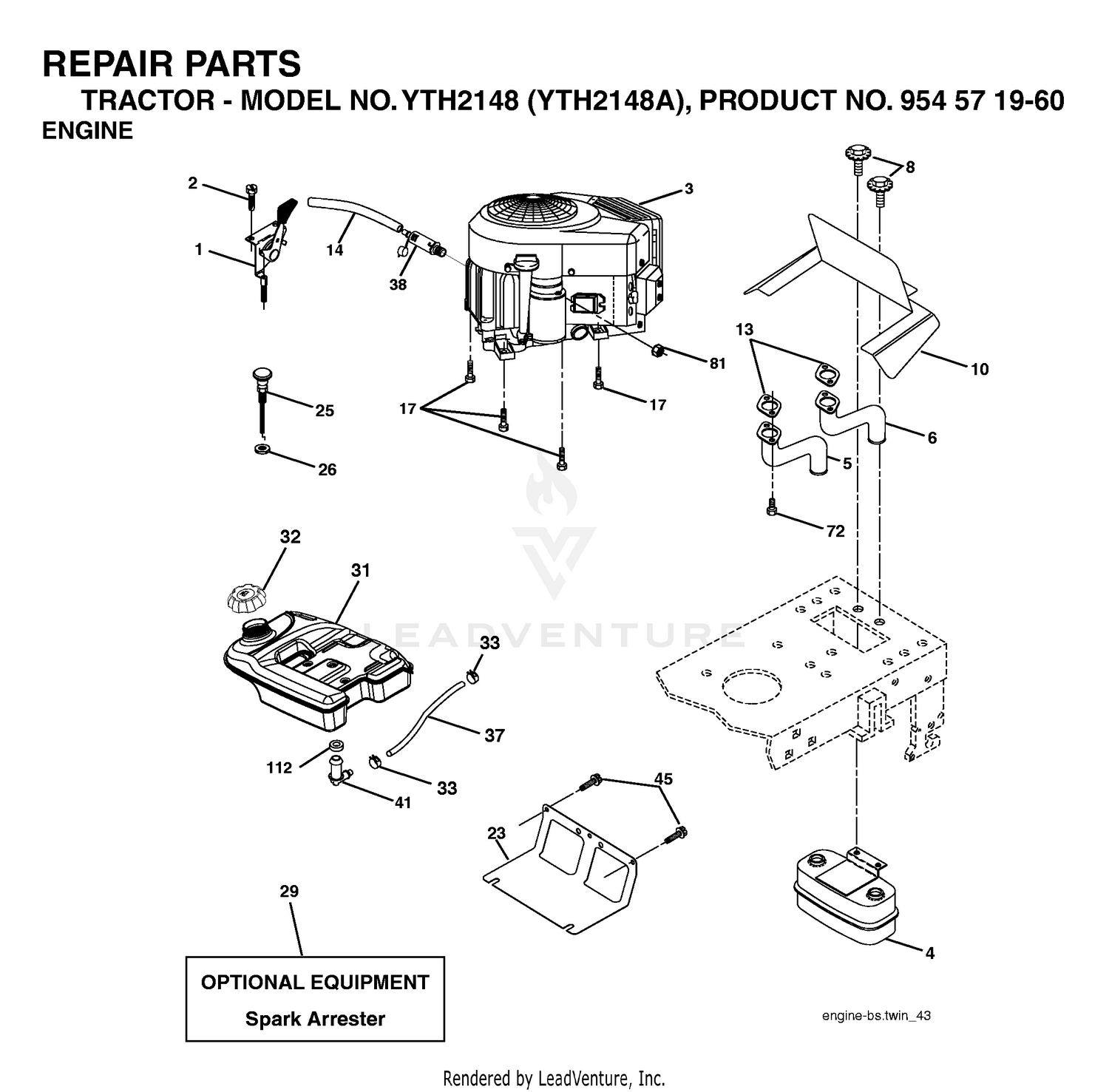

| Ref | Part Number | Description |
|---|
| 1 |
217-111 |
CAP-HUB This part replaces 242-55. Price: $22.31 |
| 1 |
532190196 |
THROTTLE CONTROL Price: $32.99 |
| 2 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 5 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 6 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 7 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 8 |
231-118 |
DISCONTINUED This part replaces 231-76. Price: Call Us |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
232-34 |
DISCONTINUED Price: Call Us |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532162797. Price: $11.99 |
| 10 |
62-3220 |
DISCONTINUED This part replaces 241-117. Price: Call Us |
| 11 |
242-54 |
HUB Price: $168.31 |
| 12 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 13 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
253-127 |
SEAL Price: $74.45 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
325-3 |
SCREW-HH Price: $1.49 |
| 16 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 17 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 18 |
13-6120 |
DISCONTINUED Price: Call Us |
| 19 |
67-5360 |
DECAL-DANGER This part replaces 13-6470. Price: $14.99 |
| 20 |
13-6240 |
ADJUSTMENT ROD WA Price: $65.88 |
| 21 |
3218-6 |
NUT-JAM Price: $0.61 |
| 22 |
325-5 |
SCREW-HH Price: $1.20 |
| 23 |
13-6000-01 |
GEAR BOX BASE WA This part replaces 13-6000. Price: $968.55 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
2410-13 |
DISCONTINUED Price: Call Us |
| 25 |
323-8 |
SCREW-HH Price: $1.20 |
| 25 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 26 |
3218-3 |
NUT-JAM Price: $0.25 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 27 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 28 |
235-15 |
GRIP-HANDLE Price: $11.84 |
| 29 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
32104-96 |
SCREW-HH Price: $5.59 |
| 31 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 32 |
13-6910-01 |
SPACER-GUIDE, ROPE This part replaces 13-6910. Price: $18.39 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
13-6890-01 |
GUIDE-ROPE This part replaces 13-6890. Price: $119.16 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
2412-40 |
CLAMP-CONDUIT Price: $6.72 |
| 35 |
3217-9 |
NUT-HH Price: $0.37 |
| 36 |
328-23 |
SCREW-HH Price: $13.03 |
| 37 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 38 |
3217-12 |
NUT-HEX Price: $3.12 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 39 |
323-5 |
SCREW-HH Price: $0.41 |
| 40 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 41 |
323-2 |
SCREW-HH Price: $0.68 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 42 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 43 |
13-7460 |
PLATE-HITCH, CAUTION Price: $30.27 |
| 44 |
3259-15 |
DRIVE SCREW Price: $0.25 |
| 45 |
13-4310-01 |
TONGUE WA This part replaces 13-4310. Price: $4,199.75 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 47 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 48 |
13-5870-01 |
FRONT SHIELD WA This part replaces 13-5870. Price: $376.54 |
| 49 |
13-5880-01 |
DROP SHAFT SHIELD WA This part replaces 13-5880. Price: $394.15 |
| 72 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
